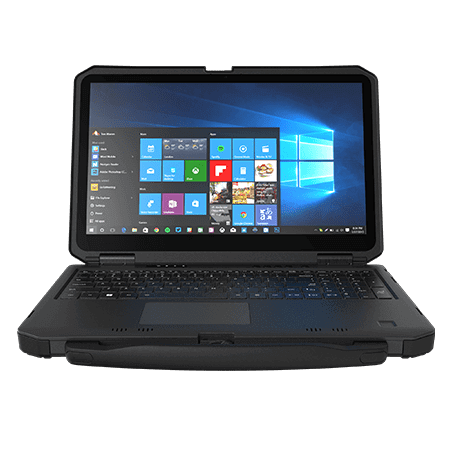

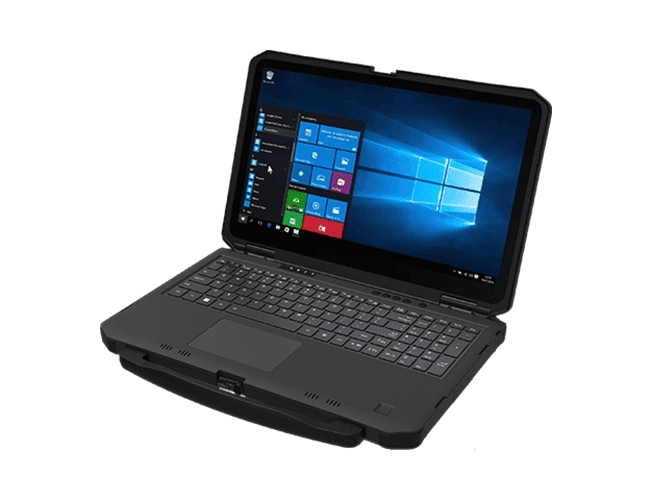

Winmate L156AD- M1 New Design 15.6-inch Ultra Rugged Laptop
-
NG # 003804-HW-WIN-O04
Manufactured by:
Winmate L156AD- M1 New Design 15.6-inch Ultra Rugged Laptop with Intel® Alder Lake Processor
Specification
Display Size 15.6 inches Resolution 1920x1080 Type Projected Capacitive Multi Touch Panel Brightness 500.0 nits Contrast Ratio 1000:1 View Angles 89,89,89,89 Bonding Optical Bonding for Sunlight Viewability System Specification Processor Intel Core i7-12700H (up to 4.7GHz)
Intel Core i9 Processor (Optional)Memory 8+8GB DDR5 SDRAM
16+16GB DDR5 SDRAM (Optional)
32+32GB DDR5 SDRAM (Optional)Storage 256GB M.2 NVMe SSD
512GB M.2 NVMe SSD (Optional)
1TB M.2 NVMe SSD (Optional)
2TB M.2 NVMe SSD (Optional)
2nd storage available with up to 2TB M.2 NVMe SSD (Optional)Smart Card Reader Smart Card Reader Security Trusted Platform Module (TPM) 2.0
Kensington LockOperating System Windows 11 IoT Enterprise LTSC (64 bit)
Windows 10 IoT Enterprise LTSC (64 bit) (Optional)WLAN Support BT Support WWAN 4G LTE (Optional)
5G (Optional)GNSS GPS, GLONASS RFID HF RFID reader 13.56 MHz (Optional) Fingerprint Scanner Fingerprint scanner (Optional) Discrete GPU M1: T1000 MXM Graphic card (Optional)
M2: A2000 MXM Graphic card (Optional)
M3: A370 MXM Graphic card (Optional)Camera Front Camera 2MP front camera Mechanical Dimension 387.6 x 256 x 38.8 mm Weight 2.8 kg Cooling System Fan Design IO Ports USB Port 1 x USB 3.0 (Type C)
3 x USB 3.0 (Type A) (One USB-A is mutually exclusive with 2nd LAN)Serial Port 1 x DB9 (RS232 / RS422 / RS485, software switchable) LAN 2 x RJ45-10/100/1000 GigaLAN port Video 1 x HDMI 4K Output (Optional) Audio 1 x Audio combo 3.5mm audio combo jack
Dual Digital Mic With Noise Cancellation
Dual SpeakerSD Card Slot 1 x Micro SDXC Slot SIM Card Slot 1 x Nano SIM card slot Indicator 4x LED Indicator for Power, Drive, Battery1, Bttery2 Environment Operating Humidity 10% to 90% RH, non-condensing Operating Temperature -20°C to 60°C Storage Temperature -30°C to 70°C Shock MIL-STD-810H Method 516.8 Procedure I Vibration MIL-STD-810H Method 514.8 Procedure I Drop MIL-STD-810H Method 516.8, 4 ft IP rating IP65 EMC MIL-STD-461G Certification Certification CE, FCC Security Function SOTI MobiControl SOTI MobiControl Compliance Kensington Lock Kensington Lock Support Control Button 1 x Power,
4 x Programmable Function KeysPower Battery Hot-swappable 2 x 11.55V, typ. 3220 mAh Li-Ion Battery (3S1P) Battery Operating Time Standard Battery: 11 hours Power Rating 19V DC Adapter 100-240V, 50-60Hz / 19V DC Accessory Accessory Adapter and Power Cord
Standard BatteryOptional Accessory Spare Battery (Optional)
Battery Charger (Optional)
Vehicle Charger (Optional)
Carry Bag (Optional)
Description
Endless Expansion with Larger Screen Uncompromised intelligence and comfort:
Combining the powerful Intel® 12th generation Alder Lake Processor with a crystal-clear high def. 15.6-inch and FHD Panel resolution, the L156AD heavy duty laptop is built for endless expansion. The optional discrete Nvidia Graphic card offers powerful and brilliant for various on-field and industrial applications.
