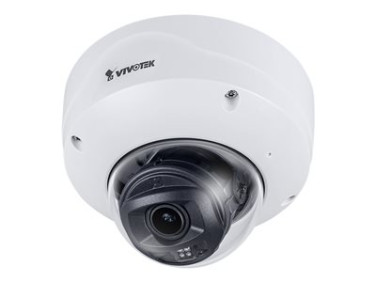

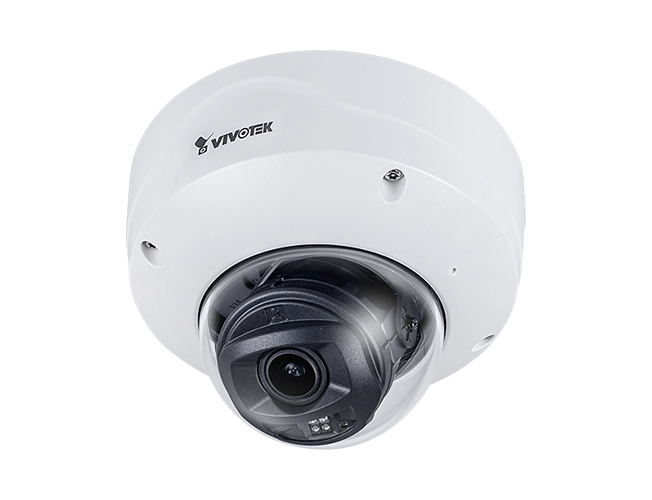

Vivotek V Series FD9167-HT-v2 - network surveillance camera - dome
TF:
001304-HW-vivotek-004
Overview
Vivotek V Series FD9167-HT-v2 - Network surveillance camera - dome - outdoor, indoor - weatherproof - color (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 0
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Audio Formats | G.726, G.711 |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 6.8 in |
| Depth | 6.8 in |
| Height | 4.8 in |
| Weight | 34.92 oz |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor, indoor - weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Digital Zoom | 48 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Minimum Illumination | 0.035 lux - color - F1.4 ¦ 0.005 lux - B&W - F1.4 ¦ 0 lux - IR |
| Infrared LEDs | 4 |
| Infrared Distance | 164 ft |
| Digital Video Capture Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| RAM | 1 GB |
| Flash Memory | 8 GB |
| Features | Backlight Compensation (BLC), date/time stamp, sharpness control, digital image rotation, white balance, auto exposure control, progressive scanning, saturation control, brightness control, contrast control, e-mail alerts, image flip, image mirror, Wide Dynamic Range (WDR), face detection, infrared cut filter, Privacy Mask Function, Highlight Compensation (HLC), ePTZ, NAS-Ready, Electronic Image Stabilizer (EIS), Camera Tampering Detection, password protection, triple video stream, Wide Dynamic Range (WDR) Pro, Audio Detection, Defog, intrusion detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, image overlay, exposure control, Line Crossing Detection, embedded SOC processor, 3D digital noise reduction (DNR), Smart IR II, Smart Stream III, Smart Motion Detection, missing object detection, unattended object detection, signed firmware, secure boot, ONVIF (Profile T) support, Smart VCA, Gain Control, anti-overexposure, crowd detection |
| Image Sensor | |
| Type | 2 MP PS CMOS 1/2.8" |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 5 x |
| Focal Length | 2.7 mm - 13.5 mm |
| Lens Iris | F/1.4-2.8 auto iris (P-Iris) |
| Focus Adjustment | Motorized |
| Horizontal Field of View (degree) | 33 - 110 |
| Vertical Field of View (degree) | 18 - 55 |
| Diagonal Field of View (degree) | 37 - 126 |
| Panning | |
| Range (degree) | -175 to +175 |
| Tilting | |
| Range (degree) | 80 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, SMB, SSL, QOS, CoS, DSCP, IGMPv3, CIFS, SFTP |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | VCCI, BSMI, CB, EMC, IP54, EN 50121-4, RCM, CNS 13438, IS13252, BIS, IEC 60529, EN 55032 Class B, AS/NZS CISPR 32 Class B, CNS 14336-1, IEC/EN/UL 60950-22, IEC/EN 62471, CISPR 32 Class B, IEEE 802.3af, UL 62368-1, EN 55035, IEEE 802.1x, IEC/EN 62368-1, FCC Part 15 Subpart B Class B |
| Power | |
| Power Requirements | DC 12 V / PoE Class 0 |
| Power Device | 9 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 10 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
This well-designed, IP54-rated camera features a built-in microphone, I/O functionality, and the latest Vivotek SNV, WDR Pro and Smart IR II technology to present clear image quality in both low light and high contrast environments. It also offers a variety of built-in cybersecurity capabilities and AI-powered video analytics, making it ideal for various indoor surveillance scenarios, such as in data centers, offices, and warehouses.
