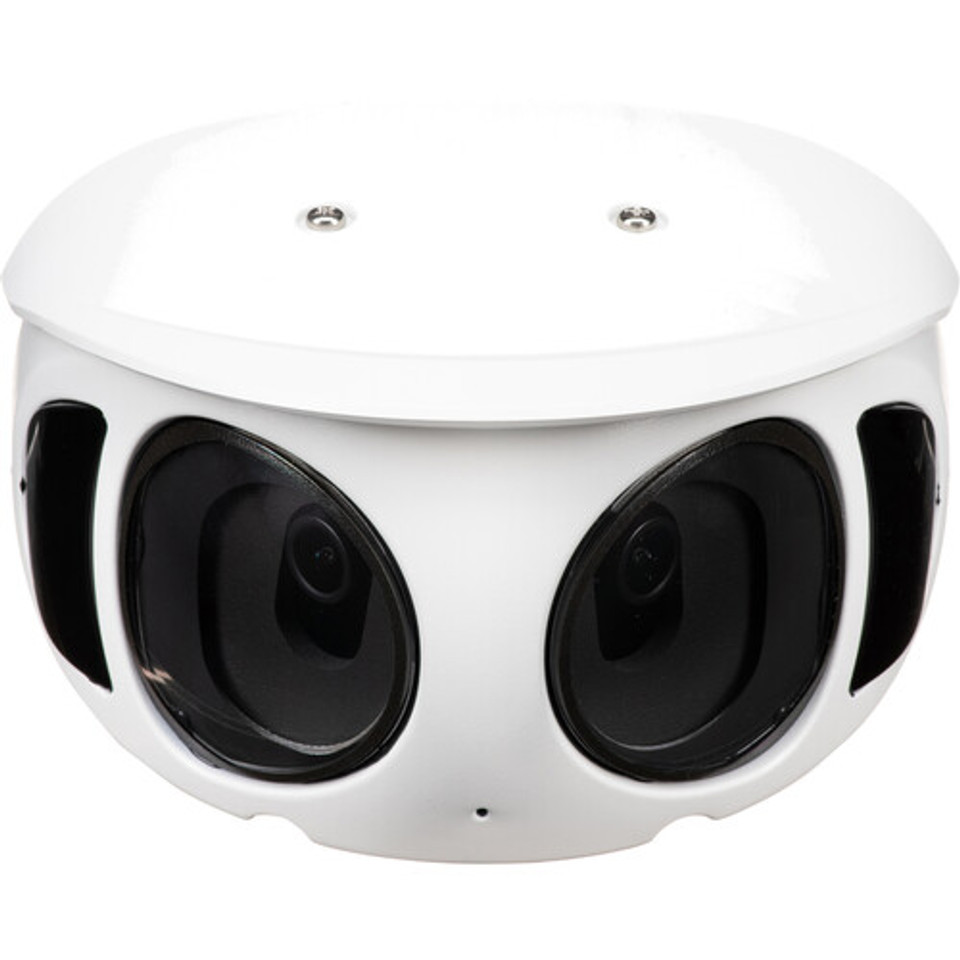

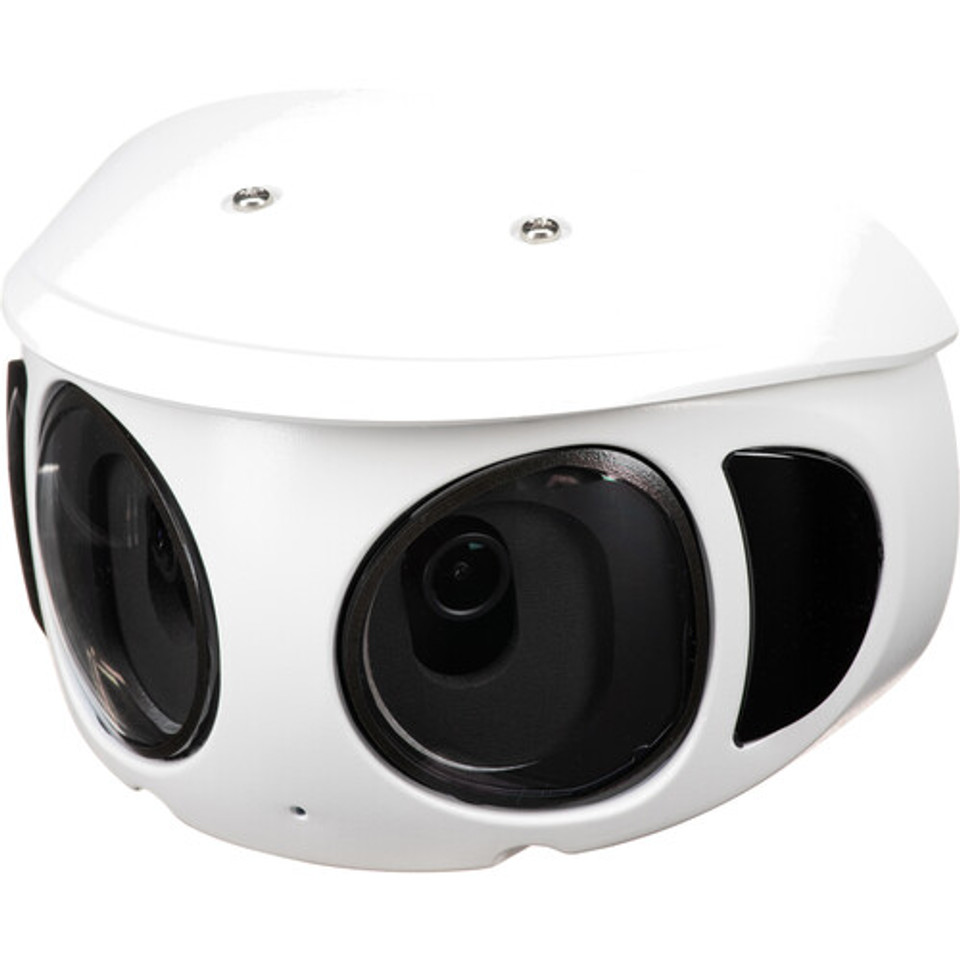

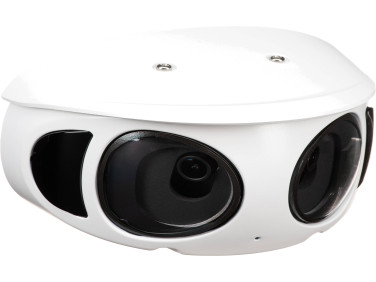

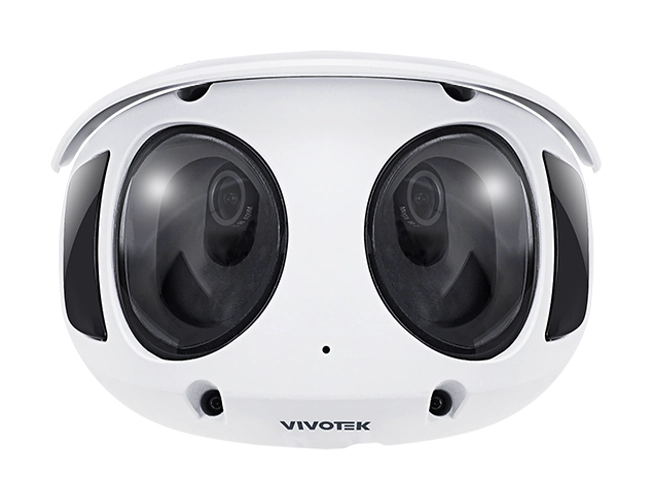

Vivotek MS9390-EHV-v2 8MP Outdoor Multi-Sensor Panoramic Network Dome Camera with Night Vision
001302-HW-vivotek-002
Overview
Monitor an indoor or outdoor area with the MS9390-EHV-v2 8MP Multi-Sensor Panoramic Network Dome Camera from Vivotek. This dual-sensor camera captures 8MP total resolution video at 30 fps. Eight IR LEDs provide up to 66' of night vision range. The camera's two 2.8mm fixed lenses deliver a 180° panoramic horizontal field
| Angle of View: | 180 Degree |
| Aperture: | F1.2 |
| Audio Capability: | One-way Audio |
| Audio Compression: | G.711G.726AAC-LC |
| Audio Support: | Built-in Microphone |
| Camera Style: | Multi-sensor |
| Certifications: | FCCBISCEBSMIVCCICBUL Listed |
| Color: | White |
| Compatible Integration (API): | ONVIF Profile GONVIF Profile SONVIF Profile T |
| Compliance: | NDAA Compliant |
| Compression: | H.265H.264MJPEG |
| Connection Type: | Wired |
| Detect (ft): | 264.2 |
| Dimensions: | 165 x 100 x 119 mm (6.49 x 3.93 x 4.68 in) |
| Durability: | WeatherproofVandal Proof |
| Environmental: | Outdoor |
| Field of View (Horizontal): | 180 |
| IR LED Quantity: | 8 |
| Identify (ft): | 25.7 |
| Iris: | Fixed Iris |
| LED Indicator: | Power LEDStatus LED |
| Lens Angle Type: | Panoramic |
| Lens Size: | 2.8mm |
| Lens Type: | Fixed Lens |
| Made in: | Taiwan |
| Max Power Consumption: | 20 Watts |
| Max. FPS and Resolution: | 30fps at 8MP |
| Max. Storage Capacity: | 1 TB |
| Minimum Illumination (B/W): | 0.01 Lux |
| Minimum Illumination (Color): | 0.018 Lux |
| Network Interface: | 1x RJ-45 10/100 Mbps |
| Night Vision Range (ft): | 65 |
| Night Vision Type: | Night Vision (IR) |
| Noise Reduction: | 3D DNR |
| Observe (ft): | 105.7 |
| Operating Humidity: | 0% to 90% |
| Operating Temperature: | -40 °C to 55 °C (-40 °F to 131 °F) |
| Power Supply: | PoE+ (IEEE802.3at Class 4) |
| Processor (CPU): | Multimedia SoC (System-on-Chip) |
| Product Series: | Vivotek V (Value) Series |
| Protection Code: | IP66IK10 |
| RAM: | 2GB |
| Recognize (ft): | 52.9 |
| Remote Users: | Up to 10 |
| Resolution: | 8MP (4K) |
| S/N Ratio: | 57.9 dB |
| SD Card Support: | SD Card Supported |
| Sensor Size: | 1/2.7" |
| Sensor Type: | CMOS |
| Shutter Speed: | 1/30-1/320000s |
| Special Technologies: | Vivotek Smart Stream IIIVivotek SNV (Supreme Night Visibility)Trend Micro IoT Security |
| Technology: | Network (IP) |
| Warranty: | 3-year Manufacturer Warranty |
| Web Browser: | ChromeInternet Explorer |
| Wide Dynamic Range (WDR): | True WDR 120dBWDR Pro |
Monitor an indoor or outdoor area with the MS9390-EHV-v2 8MP Multi-Sensor Panoramic Network Dome Camera from Vivotek. This dual-sensor camera captures 8MP total resolution video at 30 fps. Eight IR LEDs provide up to 66' of night vision range. The camera's two 2.8mm fixed lenses deliver a 180° panoramic horizontal field of view. A built-in microphone enables the camera to pick up audio from up to 16' away. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It has an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at high risk of vandalism.
