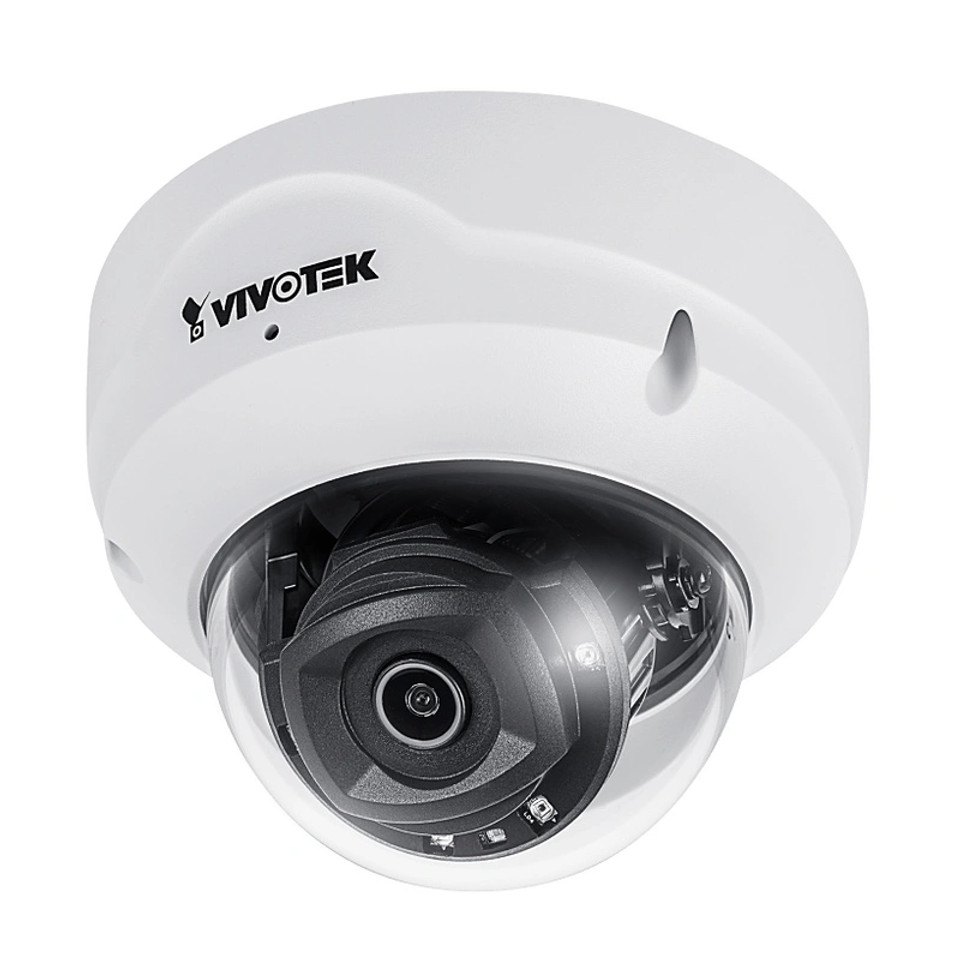

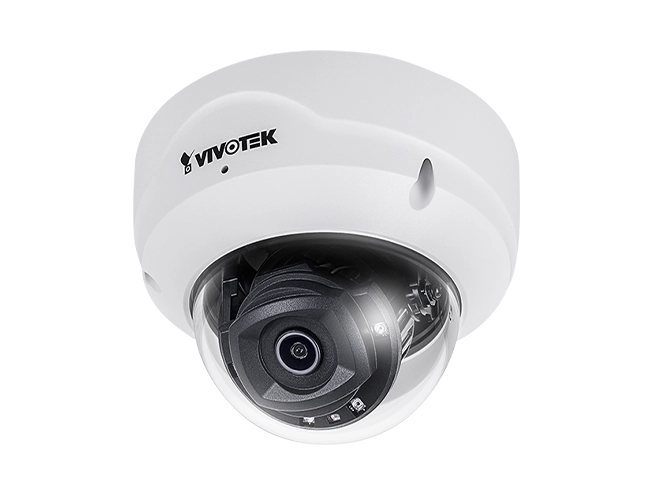

Vivotek FD9189-H-V2 5MP Night Vision Indoor Dome IP Security Camera, 2.8mm Fixed Lens
TF:
001311-HW-vivotek-011
Overview
VIVOTEK’s FD9189-v2 series is a H.265 indoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9189-v2 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.
| Aperture: | F2.0 |
| Audio Capability: | One-way Audio |
| Audio Compression: | G.711G.726 |
| Audio Support: | Built-in Microphone |
| Built-in Features: | Built-in Analytics |
| Camera Style: | Dome |
| Color: | White |
| Compatible Integration (API): | ONVIF Profile GONVIF Profile SONVIF Profile T |
| Compliance: | NDAA Compliant |
| Compression: | H.265H.264MJPEG |
| Connection Type: | Wired |
| Day/Night: | Day (Color)Night (B/W) |
| Detect (ft): | 225.1 |
| Dimensions: | 130 x 95 mm (5.11 x 3.74 in) |
| Environmental: | Indoor |
| Field of View (Horizontal): | 103 |
| IR LED Quantity: | 4 |
| Identify (ft): | 89.3 |
| Iris: | Fixed Iris |
| LED Indicator: | |
| Lens Size: | 2.8mm |
| Lens Type: | Fixed Lens |
| Max Power Consumption: | 6.3 Watts |
| Max. FPS and Resolution: | 30fps at 2560 x 192060fps at 1080P |
| Minimum Illumination (B/W): | 0 lux |
| Minimum Illumination (Color): | 0.06 Lux |
| Network Interface: | 1x RJ-45 10/100 Mbps |
| Night Vision Range (ft): | 98 |
| Night Vision Type: | Night Vision (IR) |
| Noise Reduction: | 3D DNR |
| Observe (ft): | 45.0 |
| Operating Humidity: | 0% to 90% RH (non-condensing) |
| Operating Temperature: | -10 °C to 50 °C (14 °F to 122 °F) |
| Power Supply: | PoE (IEEE 802.3af) |
| Processor (CPU): | Multimedia SoC (System-on-Chip) |
| Product Series: | Vivotek V (Versatlile) Series |
| RAM: | 1GB |
| Recognize (ft): | 22.50 |
| Remote Users: | Up to 10 |
| Resolution: | 5MP (3K) |
| S/N Ratio: | 55 dB |
| SD Card Support: | SD Card Supported |
| Sensor Size: | 1/2.7" |
| Sensor Type: | CMOS |
| Shutter Speed: | 1/5-1/32000s |
| Special Technologies: | Vivotek Smart Stream IIIVivotek SNV (Supreme Night Visibility)Trend Micro IoT Security |
| Technology: | Network (IP) |
| Warranty: | 3-year Manufacturer Warranty |
| Wide Dynamic Range (WDR): | True WDR 120dB |
VIVOTEK’s FD9189-v2 series is a H.265 indoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9189-v2 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.
