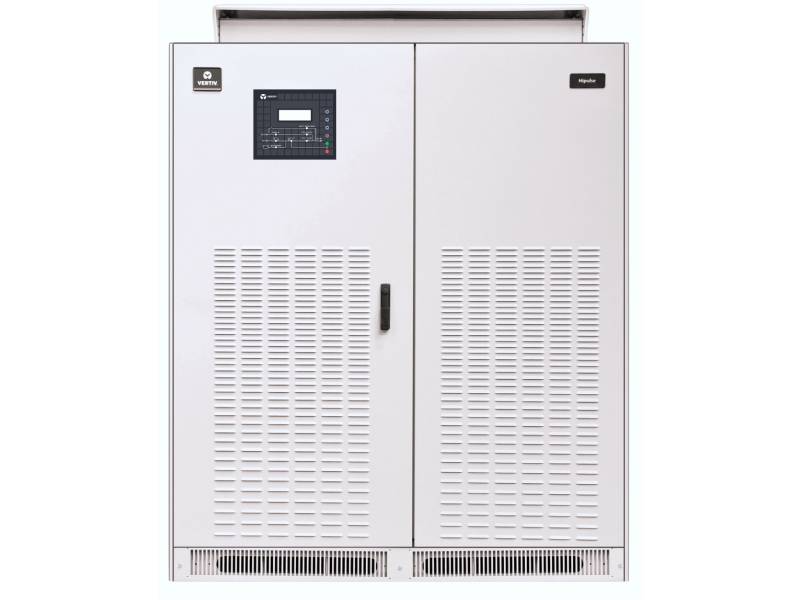

Liebert Hipulse AC UPS System, 20-800kVA
-
NG # 006035-HW-VERTIV-035
Manufactured by:
This
seller generally responds in under 48 hours
Specification
- Rated at 0.8 output power factor
- On-Line double conversion with IGBT based PWM Inverter
- Wide input voltage tolerance (+/-15%)
- Wide input frequency tolerance (+/-6%)
- Automatic battery testing
- High overload capability of static bypass (14 times for 10 milliseconds and 10 times for 100 milliseconds)
- Ingress protection IP 31/ IP32/ IP 41 /IP 42
- Capability to handle:
- High crest factor loads at 100% non-linear loads - Built-in maintenance bypass (Single and 1+N Models)
- Front access for spares replacement and preventive Maintenance
- Provision to use any type of battery: Wet cells (Tubular Plante), Valve Regulated Lead Acid (VRLA) / Maintenance Free and Nickel Cadmium.
- Adjustable Frequency Synchronization with Static Bypass
- Provision of automatic battery circuit breaker instead of using conventional isolator in the DC path
- Advance Battery Management
- Selectable Timer for boost charging
- Overload capability of the UPS:
- 110% full-load for 60 minutes
- 125% full-load for 10 minutes - Field Protocols ModBus
- Compact footprint
- Fan Redundancy
- Parallelbility: Up to 6 module can be parallel for capacity enhancement / redundancy
Description
From reliability to availability, from scalability to redundancy, from user-friendliness to maintainability, from parallelibility to connectivity, from investment protection to lower cost of ownership, whichever value you need, HIPULSE address them efficiently and effectively.
