Specification

IGBT Based Rectifier
True Online Double Conversion with DSP Control Technology for High Performance and Reliability.
New Graphical LCD Display Provides UPS Data, Alarms and Helps in faults diagnostic and trouble shooting.
Double Conversion Efficiency upto 92%.
Active Input Power Factor Correction 0.99.
0.8 Output Power Factor.
Wide Input Voltage window (110 – 280Vac) for Indian Environmental Condition and for Optimized Battery Performance.
Configurable Output Voltage (200/208/220/230/240Vac.)
Generator Compatible with Wide Input
Frequency Range (40 Hz-70 Hz).
8 Stage Extendable Charging Design for optimized Battery Performance.
Adjustable Battery Charging Current 2/4/6/8/10/12/14/16 Amps according to Battery Capacity Rating.
50/60 Hz Automatic Frequency Converter Mode.
Intelligent Monitoring with Standard RS232/USB Port Plus Slot Available for RS485/ Dry Contact/SNMP Card.
Inbuilt OVCD (Over Voltage Cut-offdevice) 5 Liebert GXT MT+ CX 16A 1000VA-3000VA

Description

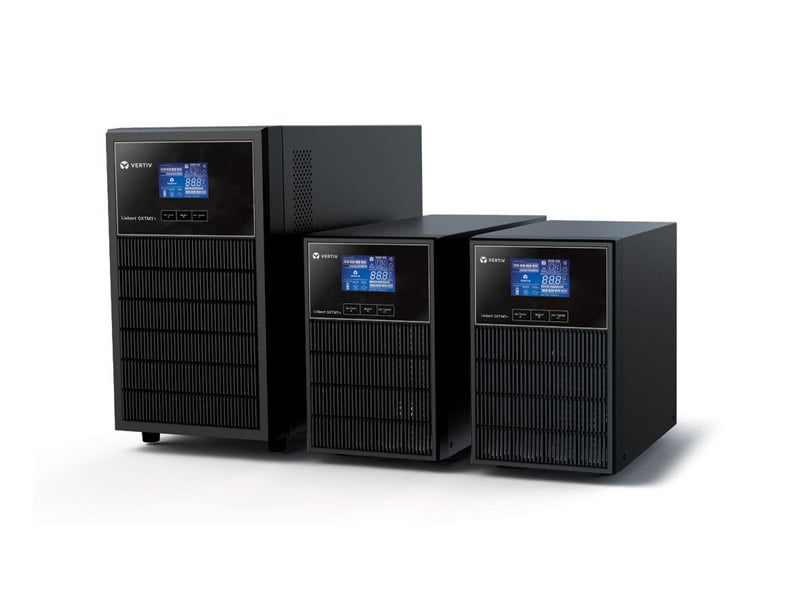

Liebert® GXT MT+ CX is a full feature Transformer free UPS designed to offer compact, efficient and reliable solution to modern electronic gadgets.
