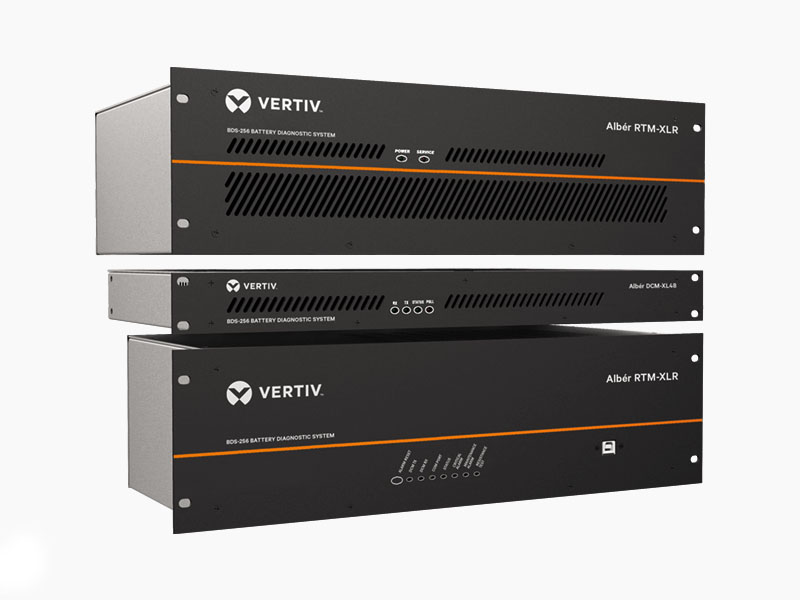

Albér BDS-256XL Battery Monitoring System
-
NG # 006042-HW-VERTIV-042
Manufactured by:
This
seller generally responds in under 48 hours
Specification
- Windows-based software for real-time viewing, automatic data collection, data analysis, and report generating.
- Modular design easily expands to monitor an unlimited number of strings.
- Industry standard MODBUS protocol interfaces to third party building management systems via RS-232 and Ethernet.
- Communicates with an external computer via RS-232 or remotely through internal modem.
- Optional TCP/IP interface for network or Internet communication via MODBUS or SNMP.
- Scans all pertinent battery parameters
- Performs a scheduled resistance test and stores results for trending
- Auto detects discharges and stores data for playback
- Signals if a parameter is outside user-programmed limits
- Communicates with an external computer using USB, modem, RS-232 or LAN (RJ-45)
- Network compatible
Description
The BDS–256XL is a stand–alone battery monitor for UPS applications. It monitors 2V-16V batteries, however is optimized to monitor 2V VLA cells. What sets Vertiv monitors apart from others is their ability to provide early warning of battery problems. The monitors check the state of health of each cell by performing a proactive resistance test, a reliable predictor of battery performance.
