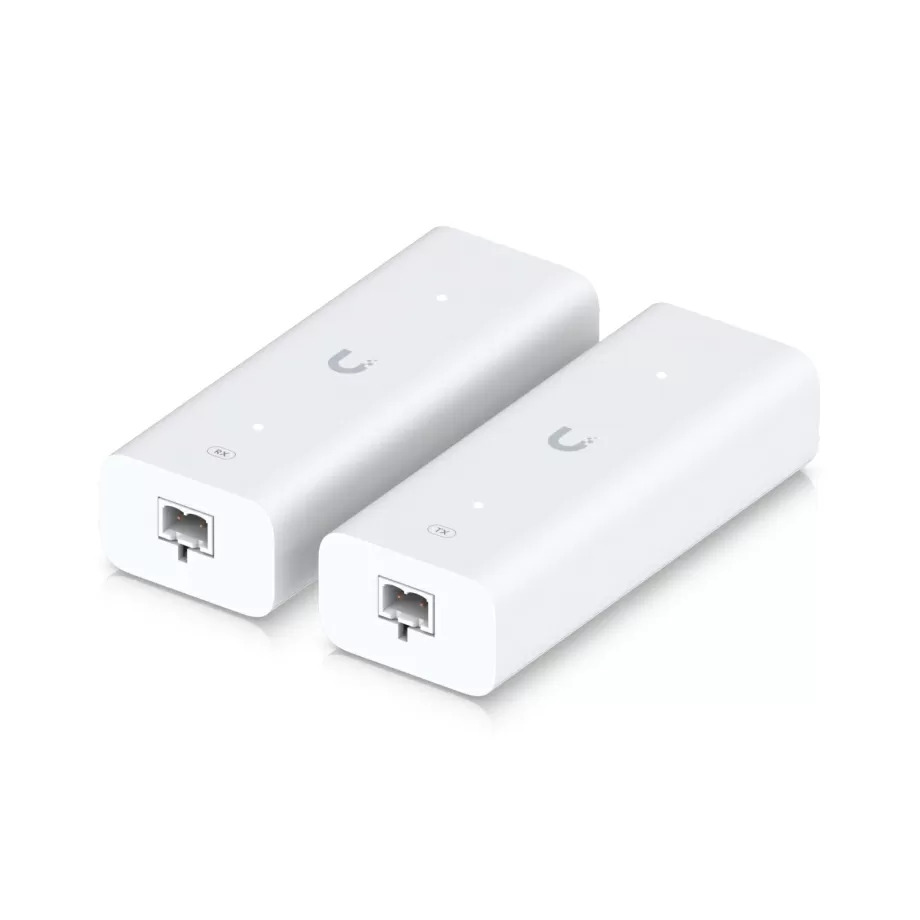

PoE Over 2-Wire Retrofit Extender
TF:
006302-HW-UN-002
Overview
PoE Over 2-Wire Retrofit Extender
| Specification | Details |
|---|---|
| Networking Interface | (1) 10/100 MbE Ethernet port(1) HomePlug AV over the 2-wire/coax line |
| Power Input | PoE++, 50 V DC, 1.2 A |
| Power Output | PoE+, 48 V DC, 0.6 A |
| Max Power Consumption (device) | Approx. 3 W (without PoE output) |
| Supported Cable Types | UTP 24 AWG (≈0.18 Ω/m) or RG-6 coax (≈0.14 Ω/m) |
| Performance vs Distance | • 50 m: ~85 Mbps / ~25 W output• 100 m: ~85 Mbps / ~13 W (UTP) / ~20 W (RG-6)• 150 m: ~85 Mbps / ~9 W (UTP) / ~13 W (RG-6)• 200 m: ~85 Mbps / ~6 W (UTP) / ~9 W (RG-6) |
| Mechanical Dimensions | PoE in/out unit: 40 × 105 × 25 mm (1.6″ × 4.1″ × 1″)Adapter unit: 43.5 × 138 × 30 mm (1.7″ × 5.4″ × 1.2″) |
| Weight | PoE in: ~77 gPoE out: ~79 gAdapter: ~140 g |
| Enclosure/Mounting Material | Polycarbonate |
| ESD/EMP Protection | Air: ±8 kVContact: ±4 kV |
| Ambient Operating Conditions | Temperature: –10 °C to +40 °C (14 °F to 104 °F)Humidity: 5% to 90% non-condensing |
| Certifications | CE, FCC, IC |
This kit from UniFi allows you to extend both data (10/100 Mb Ethernet) and power (PoE) over existing two-wire (twisted-pair) or coaxial cable infrastructure — ideal when you want to retrofit PoE to a location without pulling new Ethernet cabling
