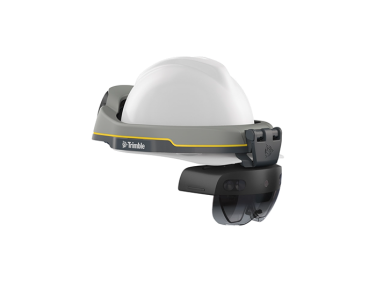

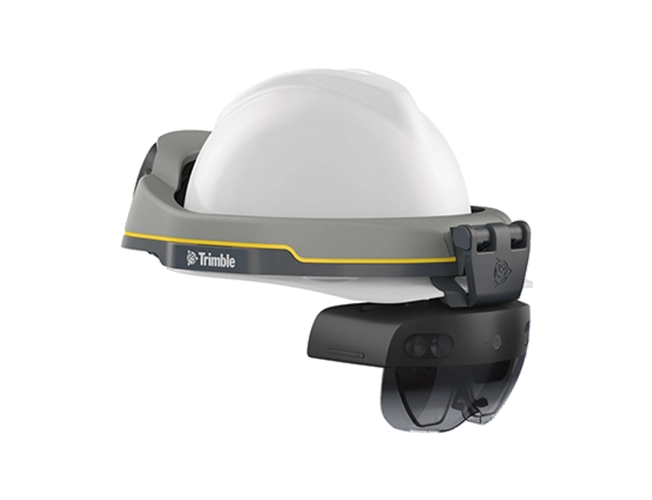

Trimble XR10 with HoloLens 2
-
NG # 2290-HW-TRIM-004
-
MF # XR10
Manufactured by:
Empower your field team with Trimble Connect's collaborative features and the mixed reality capabilities of HoloLens 2, fostering an open and interactive work environment.
Specification
- Optics: See-through holographic lenses (waveguides)
- Resolution: 2k 3:2 light engines
- Head tracking: 4 visible light cameras
- Eye tracking: 2 IR cameras
- Depth: 1-MP Time-of-Flight depth sensor
- Camera: 8-MP stills, 1080p30 video
- Microphone array: 5 channels
- Speakers: Mobilus mobiWAN_TR bone- conductive Bluetooth headset
- Storage: 64-GB UFS 2.1
- WiFi: 802.11ac 2x2
- Bluetooth: 5.0
- Fit: Fits over glasses
- Hardhat: Compatible with MSA V-Gard (Cap Style and Full Brim) with Fas-Trac III Suspension
- Industry Standard Accessory Mounts:compatible with standard 3rd party accessories (earmuffs, chin straps,and more)Trimble XR10with HoloLens 2
- Hardhat Impact Protection: ANSI/ ISEA Z89.1-2014 Type 1, Class E (OSHA Compliant) || CSA Z94.1 || EN 397:2012 + A1:2012 || AS/NSZ 1801 || GB2811-2017
- Intrinsic Safety: UL Class I, Division 2; UL 121201 & CSA C22.2 NO. 213
- Visor Basic Impact Certification: ANSI Z87.1-2015; CSA Z94.3-07, EU EN 166, AS NZS 1337.1
- Ingress Protection Rating: IP50 (dust protected)
- Weight: 0.79kg (1.75lbs) XR10 / 1.25kg (2.75bs) with hardhat and mobiWAN_TR
- Operating Temperature: +10°C (+50°F) to +27°C (+81°F)
- Storage Temperature: -20°C (-4°F) to +60°C (+140°F )
- Operating/Storage Humidity: 8% to 90% RH (Relative Humidity)
Description
Take advantage of cutting-edge technology on your worksites while keeping your staff safe with Trimble XR10 with HoloLens 2. Itʼs the only HoloLens 2-based solution compatible with an industry-standard hardhat and certified for use in safety-controlled environments.
