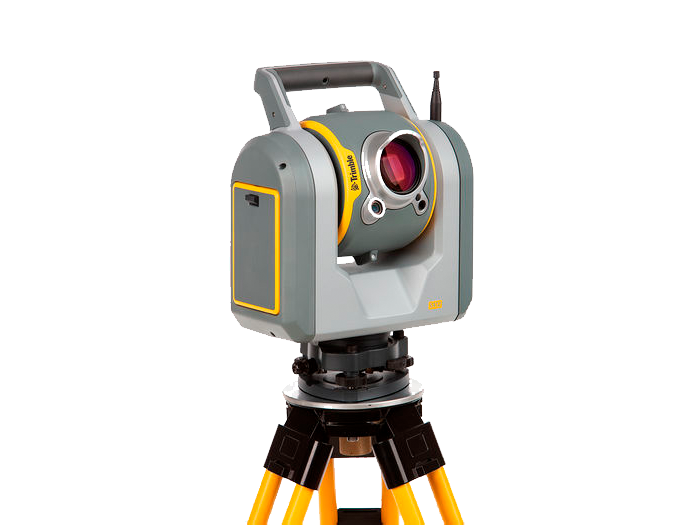

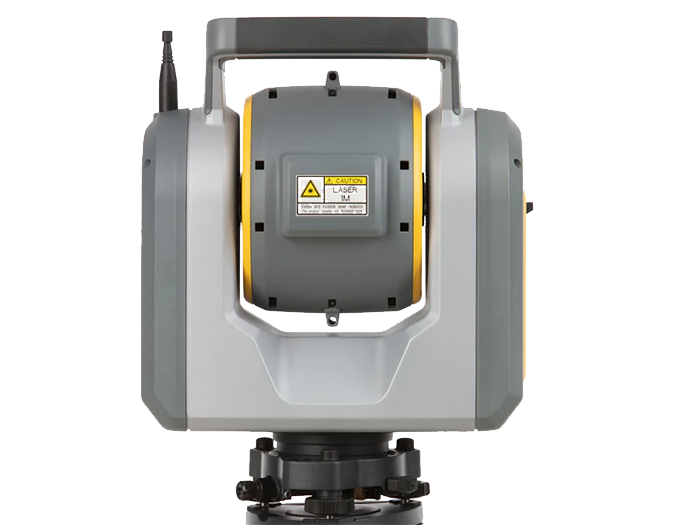

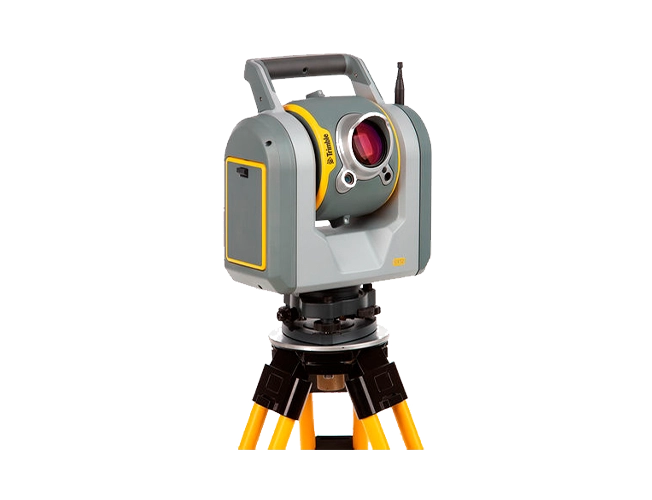

Trimble SX12 Scanning Total Station
Built for seamless workflow integration and better, faster results in every field.
With the NEW Trimble SX12 Scanning Total Station working harder has never been easier. It combines innovative technology with simple and intuitive functionality to help you save time, maximize efficiency and get more done in the field.

The industry’s most innovative solution for surveying, engineering, and scanning professionals
Trimble SX12 features at a glance
High accuracy total station, high quality scan data

1" angular accuracy

1.5 mm scan range noise at 200 m

14 mm diameter EDM laser spot at 100 m
Quick data capture, even at long range

26.6 kHz scan measurement rate, up to 600 m

1.6 s total station measuring time in prism mode

1.2 s total station measuring time in DR mode
Vivid, eye-safe laser pointer

Green and focusable, this laser pointer is exceptionally small, bright, and still eye safe

3 mm diameter laser pointer spot at 50 m
Simple navigation and documentation with Trimble VISION™ camera system

Three integrated and calibrated cameras in the telescope
