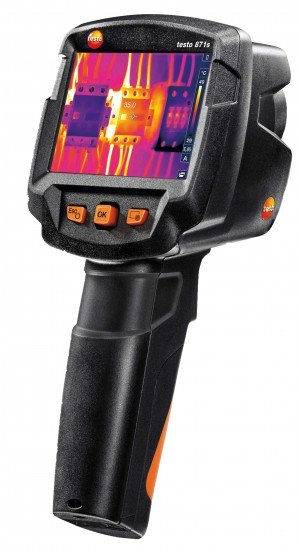

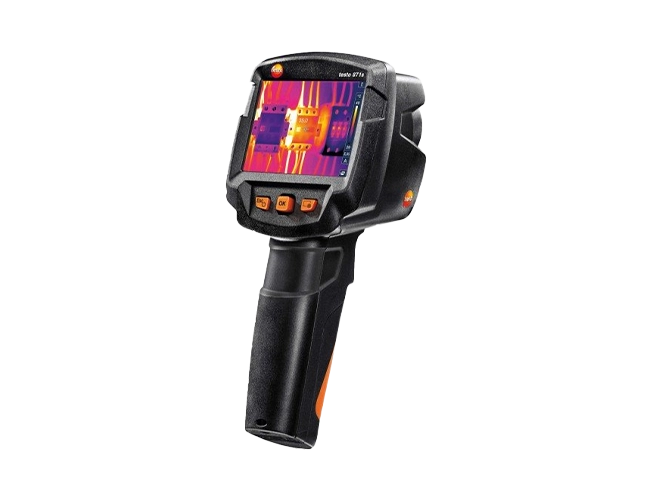

Testo 871S Thermal Imager, 240 x 180, <0.14°F
TF:
00812-HW-TESTO-012
Overview
Get professional performance with this smart thermal imager featuring a high infrared resolution of 240 x 180 pixels with the addition of SuperResolution technology. Moreover, this thermal imager has a thermal sensitivity of <0.14°F (0.08°C), ScaleAssist, wireless networking, and the thermography App for reporting and analysis.
| Infrared Resolution | 240 x 180 pixels |
| Thermal Sensitivity (NETD) | <0.14°F (0.08°C) (80 mK) |
| Field of View/Minimum Focusing Distance | 35 x 26°/<1.6' (0.5 m) |
| Geometric Resolution (IFOV) | 2.6 mrad |
| SuperResolution (Pixel/IFOV) | 480 x 360 pixels, 1.6 mrad |
| Image Refresh Rate | 9 Hz |
| Focus | Fixed |
| Spectral Range | 7.5 to 14 μm |
| Image Presentation | |
| Image Display | 3.5" (8.9 cm) TFT, QVGA |
| Display Options | IR image/real image |
| Color Palettes | Iron, rainbow HC, cold-hot, grey |
| General Specifications | |
| Measurement | Ranges 1: -22 to 212°F (-30 to 100°C) 2: 0 to 1202°F (0 to 650°C) manual/automatic switchover Accuracy: ±3.6°F (±2°C), ±2% of measurement value (higher value applies) Emissivity/reflected temperature compensation: 0.01 to 1/manual ε-Assist: Automatic recognition of emissivity and determination of reflected temperature (RTC) |
| Measurement Functions | Analysis: Centre point measurement, hot/cold spot detection, delta T ScaleAssist: Yes IFOV warner: Yes Humidity mode manual: Yes Solar mode manual: Input of solar radiation value Electrical mode manual: Input of current, voltage or power |
| Image Size/Minimum Focusing Distance | 5 MP/minimum 1.6' (0.5 m) |
| Lens | 35 x 26° |
| Video Streaming | Via USB via Wi-Fi with Thermography App |
| Imager Storage | File Format: .bmt and .jpg; export options in .bmp, .jpg, .png, .csv, .xls Memory: Internal memory (2.8 GB) |
| Wi-Fi Connectivity | Communication with the Thermography App |
| Power Supplies | Battery type: Lithium-ion rechargeable battery exchangeable on site Operating time: 4 hours Charging option: In instrument |
| Temperature Ranges | Operating: 5 to 122°F (-15 to 50°C) Storage: -22 to 140°F (-30 to 60°C) |
| Air Humidity | 20 to 80% RH, not condensing |
| Housing Protection Class (IEC 60529) | IP54 |
| Vibration (IEC 60068-2-6) | 2G |
| System Requirements | Windows 8.1 and 10 |
| EU Directive | EMC: 2014/30/EU RED: 2014/53/EU |
| Housing | PC - ABS |
| Dimensions | 8.6 x 3.8 x 3.7" (219 x 96 x 95 mm) |
| Weight | 1.12 lbs (510 g) |
Suitable for various applications, this user-friendly imager is quick and accurate for detecting leaks, identifying overheated connections, pinpointing thermal bridges, and detecting structural defects. Additionally, this imager features ε-Assist, IFOV warner, and the ScaleAssist function.
