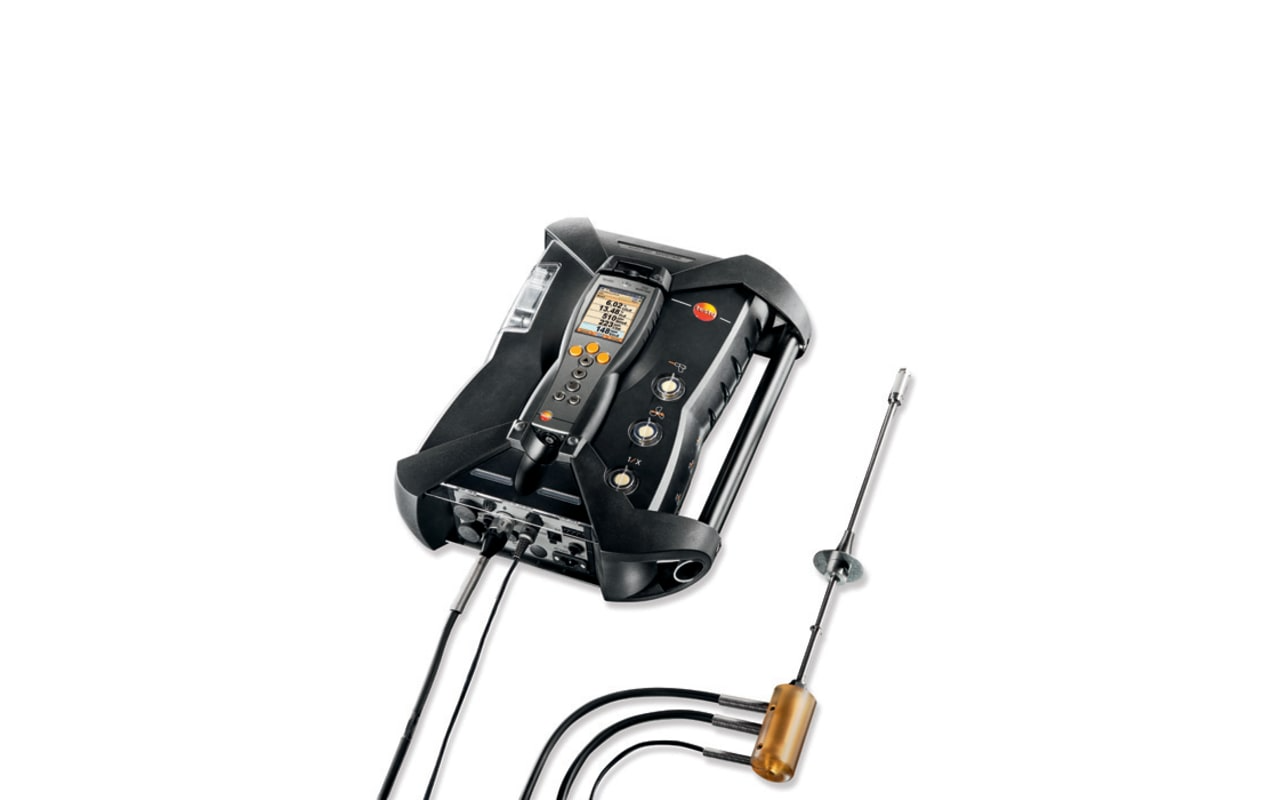

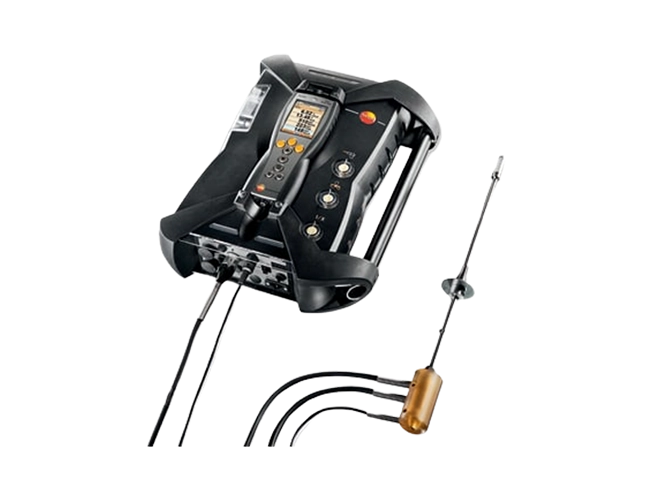

testo 350 MARITIME - Exhaust gas analyzer for diesel ship engines
00806-HW-TESTO-006
Overview
Testo proudly presents the world’s first portable exhaust gas analyzer for diesel ship engines: the testo 350 MARITIME! The groundbreaking exhaust gas analyzer measures emissions at diesel ship engines in compliance with MARPOL Annex VI and NOx Technical Code 2008.
| Weight | Approx. 17 kg |
| Dimensions | 565 x 455 x 265 mm (case) |
| Operating temperature | 5 to +45 °C |
| Product-/housing material | TPE/PC + ABS/PC + ABS + 10% GF |
| Connectable probes | 1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x temperature probe; 1 x differential pressure |
| Product colour | Black |
| Standards | Germanischer Lloyd (DNV GL) Certificate Nippon Kaijik Kyokai (Class NK) certificate according to MARPOL Annex VI and NOx Technical Code 2008 |
| Power supply | Li ion rechargeable battery; AC mains unit 100 V to 240 V (50 to 60 Hz) |
| Power consumption | max. 40 W |
| Pump flow | 1 l / min. with flow monitoring |
| Max. pos. press./flue gas | 50 mbar |
| Max. neg. press./flue gas | -300 mbar |
| Dewpoint calculation | 0.04 °Ctd; 99 °Ctd |
| Interface | IR/IRDA interface; Bluetooth®; USB; data bus; trigger input; Differential Pressure; probe input/ probe inputs; DC-voltage input; Mains connection; dilution gas inlet for measurement range extension |
| Storage temperature | -20 to +50 °C |
| Measuring range | -200 to +1370 °C |
| Accuracy | ±0.4 °C (-100 to +200.0 °C) ±1.0 °C (-200 to -+1001.0 °C) ±1.0 °C (200 to +1370.0 °C) |
| Resolution | ±0.1 °C (-200 to +1370.0 °C) |
| Measuring range | 600 to 1150 hPa |
| Accuracy | 10.0 ±10 hPa at -5 to 45 °C |
| Measuring range | 0 to 25 Vol.% |
| Accuracy | According to to MARPOL Annex VI and NOx Technical Code |
| Measuring range | 0 to 3000 ppm |
| Accuracy | According to to MARPOL Annex VI and NOx Technical Code |
| Measuring range | 0 to 3000 ppm |
| Accuracy | According to to MARPOL Annex VI and NOx Technical Code |
| Measuring range | 0 to 500 ppm |
| Accuracy | According to to MARPOL Annex VI and NOx Technical Code |
| Measuring range | 0 to 3000 ppm |
| Accuracy | According to to MARPOL Annex VI and NOx Technical Code |
| Measuring range | 0 to 40 Vol.% |
| Accuracy | According to to MARPOL Annex VI and NOx Technical Code |

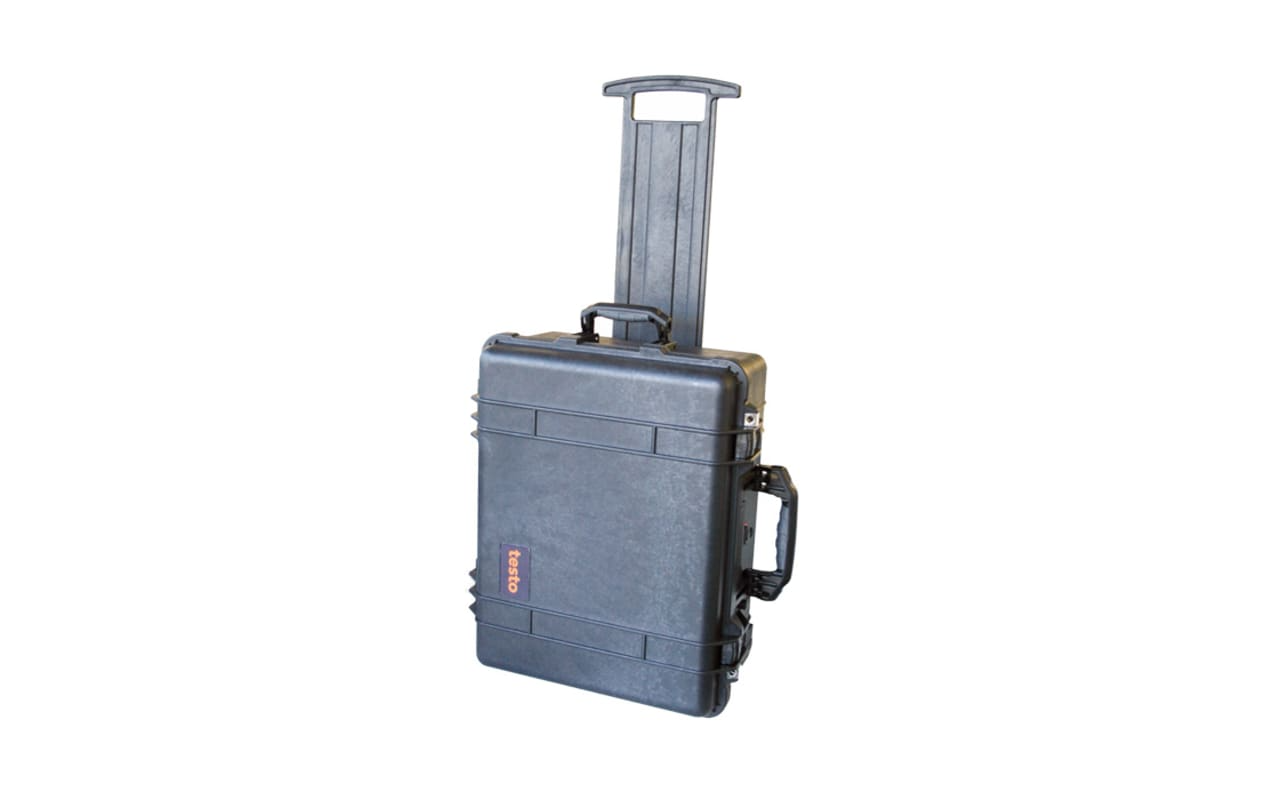

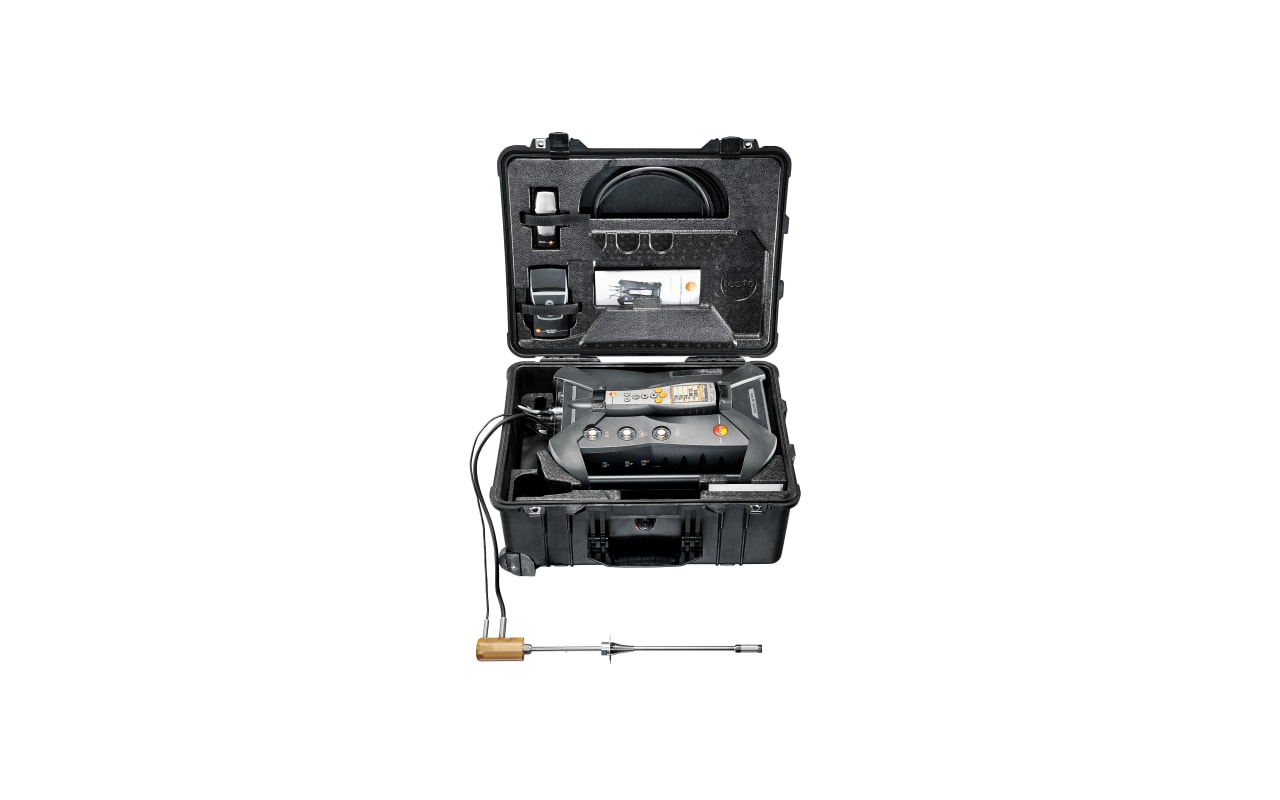

The flue gas analyzer testo 350 MARITIME can be used for emission measurement on marine diesel engines for measuring the gaseous exhaust gas concentrations of NO, NO2, SO2, CO, CO2-(IR), O2. In order to meet the harsh requirements at sea, the complete flue gas analyzer, including accessories, is housed in a robust protective case with a trolley function – the testo 350 MARITIME flue gas analyzer certainly isn't a landlubber.
