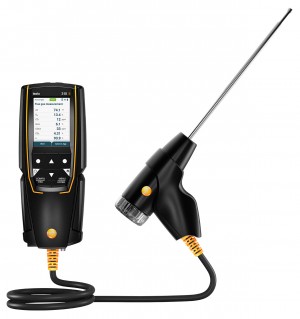

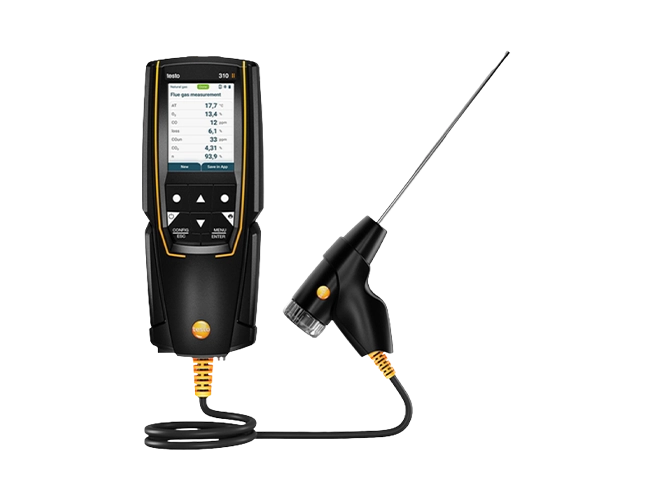

Testo 310 II Combustion Analyzer Kit, 32 to 752°F, 0 to 4000 ppm
00845-HW-TESTO-045
310 II
Overview
Ideally suited for basic measurements on heating systems, this analyzer combines simple functions with high accuracy. In addition, this kit includes a combustion analyzer, a rechargeable battery, a probe, a power supply, a cable, a silicon hose, five particle filters, a USB-C cable, a case, and a certificate of conformity.
| Measurements | |
| Temperature (Flue Gas) | Measuring range: 32 to 752°F (0 to 400°C) Accuracy ±1 digit: ±1.8°F (32 to 212°F)/±1°C (0 to 100°C) ±1.5% of mv (>212°F)/±1.5% of mv (>100°C) Resolution: 0.1°F (0.1°C) Adjustment time t90: <50 seconds |
| Temperature (Ambient Temperature) | Measuring range: -4 to 212°F (-20 to 100°C) Accuracy ±1 digit: ±2°F (±1°C) Resolution: 0.1°F (0.1°C) Adjustment time t90: <50 seconds |
| Draft Measurement | Measuring range: -8 to 8 "H2O (-20 to 20 hPa) Accuracy ±1 digit: ±0.01 "H2O (-1.2 to 1.2 "H2O) ±0.03 hPa (-3 to 3 hPa) ±1.5% of mv (remaining range) Resolution: 0.01 "H2O (0.01 hPa) |
| Pressure Measurement | Measuring range: -16 to 16 "H2O (-40 to 40 hPa) Accuracy ±1 digit: ±0.2 "H2O (±0.5 hPa) Resolution: 0.1 "H2O (0.1 hPa) |
| O2 Measurement | Measuring range: 0 to 21% volume Accuracy ±1 digit: ±0.2% volume Resolution: 0.1% volume Adjustment time t90: 30 seconds |
| CO Measurement (without H2- compensation) | Measuring range: 0 to 4000 ppm Accuracy ±1 digit: ±20 ppm (0 to 400 ppm) ±5% of mv (401 to 2000 ppm) ±10% of mv (2001 to 4000 ppm) Resolution: 1 ppm Adjustment time t90: 60 seconds |
| Ambient CO Measurement | Measuring range: 0 to 4000 ppm Accuracy ±1 digit: ±20 ppm (0 to 400 ppm) ±5% of mv (401 to 2000 ppm) ±10% of mv (2001 to 4000 ppm) Resolution: 1 ppm Adjustment time t90: 60 seconds |
| Pollution Degree | PD2 |
| Efficiency Testing (ETA) | Measuring range: 0 to 120% Resolution: 0.1% ppm |
| Protection Class | IP40 |
| Flue Gas Loss | Measuring range: 0 to 99.9% Resolution: 0.1% |
| General Specifications | |
| Environmental Conditions | Storage temperature: -4 to 122°F (-20 to 50°C) Operating temperature: 23 to 113°F (-5 to 45°C) Humidity application range: 0 to 80% RH |
| Memory | Reports saved within Testo Smart App |
| Display | Graphic seven-line display |
| Power Supply | Rating: 4 W Supply: 5 V/1 A, USB charger (connection via USB-C) Rechargeable battery: 1500 mAh Battery charge time: approximately eight hours |
| Operating Altitude | ≤6562' (≤2000 m) |
| Dimensions | 8 x 3 x 2" (201 x 83 x 44 mm) |
| Weight | Approximately 1.5 lbs (660 g) |
Simultaneous, individual measurement and display of all measurement parameters (O2, CO, CO2, flue gas, ambient temperature, CO environment, draught, and pressure) is simple with this combustion analyzer's easy and intuitive guidance menu. Long battery lifetimes of more than eight hours guarantee the analyzer is always ready. Furthermore, the analyzer is easily configurable via the Testo Smart App. A combination of easy handling and a compact design make this gas analyzer a robust tool for daily work, even when things get rough.
Features
- Easy and intuitive menu guidance
- O2, CO2, CO, HPA/"H2O, QA, and °F/°C measurements
- Simultaneous, individual measurements via the Testo Smart App (gas flow pressure, flow, and return temperature)
- Data documented and sent digitally via the Testo Smart App
- Digital customer data management via the Testo Smart App
- Sensor zeroing in 30 seconds
- Configurable display: Seven-line display with clear menu structure. Easy to operate and clearly legible (display configurable via the testo Smart App)
- Robust and light instrument for daily use – excellently suitable even for rough and dirty surroundings
- Automatic zeroing of sensor: Automatic zeroing of the gas sensor in only 30 seconds after starting, which can be cancelled if not required
- Rechargeable lithium battery: Operation with rechargeable lithium battery (1500 mAh) - no need to change battery, over eight hours running time, charging via USB possible
- Condensate trap: Integrated condensate trap - very quick and easy to empty
- Attachment: Integrated magnets for easy attachment to burner
- Probe filter: Quickly and easily exchangeable
