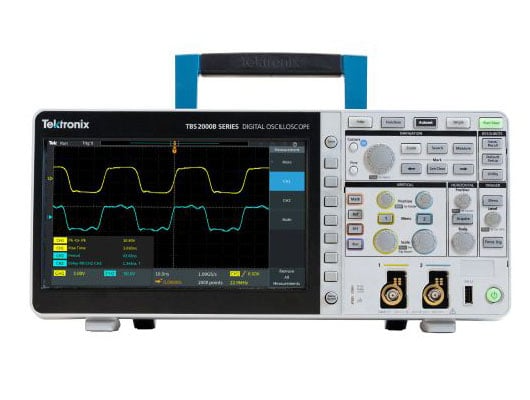

TBS2000B Digital Storage Oscilloscope
TF:
006404-HW-TEK-004
Overview
The new TBS2000B Digital Storage Oscilloscope is great at performing an oscilloscope's most important jobs - looking at and measuring signals. See more with its bigger 9-inch display with 15 horizontal divisions for more time per screen and 5M record length to capture long time windows.
| Hardware bandwidth limits | 20 MHz |
| Input coupling | DC or AC |
| Input impedance | 1 MΩ ± 1 %, 13 pF ± 1.5 pF |
| Input sensitivity range | 1mV/div to 10 V/div |
| Vertical resolution | 8 bits |
| Maximum input voltage, 1 MΩ | 300 VRMS, Installation Category II; with peaks ≤ ±450 V |
| Peak Detect | Captures glitches as narrow as 3.5 ns at all sweep speeds. |
| Time base range | TBS220xB, TBS207xB, TBS210xB: 1 ns/div to 100 sec/div |
| Time-base delay time range | 15 divisions to 5000 s |
| Time base accuracy | ±25 ppm over any ≥1 ms interval |
Measure more with handy cursors and powerful 32 automatic measurements. Share more with Wi-fi connectivity and 100-BaseT Ethernet port. This affordable scope delivers the performance you need.
