Portable Oscilloscope - 2 Series MSO Mixed Signal
TF:
006401-HW-TEK-001
Overview

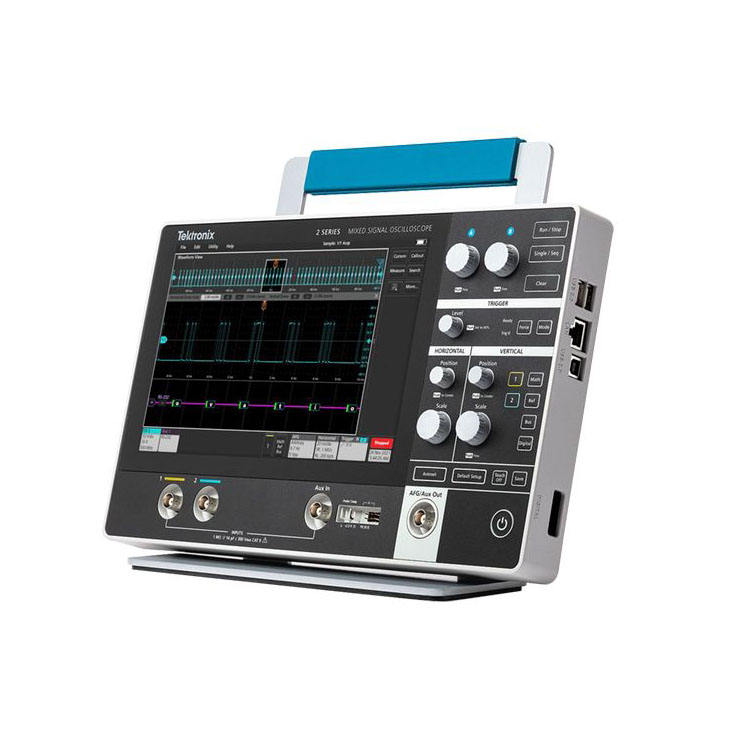

Portable Oscilloscope-2 Series MSO Mixed Signal
| Specification | Details |
|---|---|
| Analog Channels | 2 (MSO22) or 4 (MSO24) |
| Analog Bandwidth Options | 70 MHz, 100 MHz, 200 MHz, 350 MHz, 500 MHz |
| Sample Rate | Up to 2.5 GS/s |
| Record Length | 10 M points per channel |
| Digital Channels (MSO Option) | 16 inputs |
| Arbitrary Function Generator (Optional) | 50 MHz output |
| Vertical Resolution | 8-bit standard, up to 16-bit in high-resolution mode |
| Display | 10.1-inch WXGA (1280×800) multi-touch touchscreen |
| Connectivity | USB Host/Device, LAN (10/100 Mb/s) |
| Trigger Types | Edge, pulse width, runt, timeout, logic, setup & hold, rise/fall time, parallel bus |
| Serial/Bus Decode (Optional) | I²C, SPI, UART/RS-232, CAN, LIN, SENT, Automotive Ethernet |
| Form Factor | 1.5 in thick, less than 4 lbs (≈1.8 kg) |

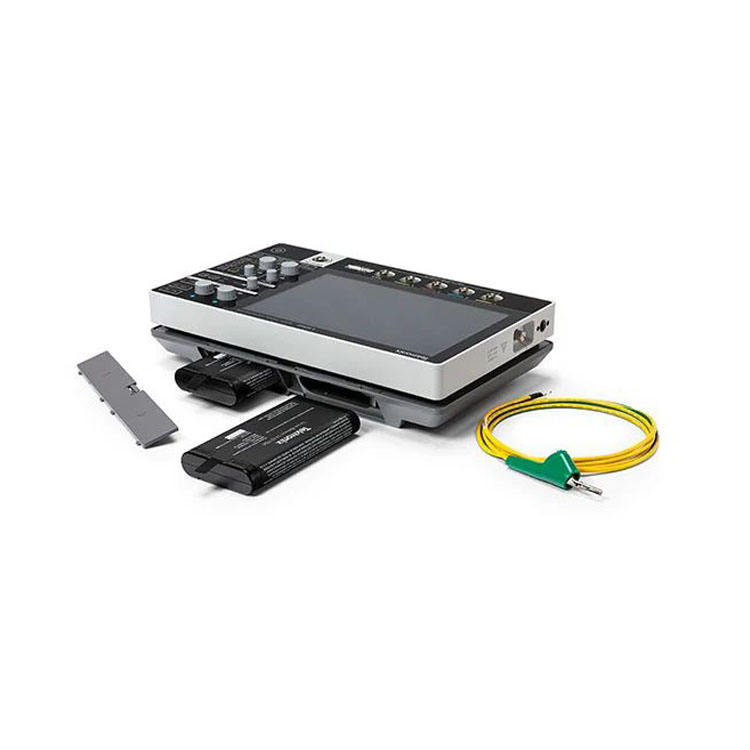

| Power Options | AC adapter or dual battery pack (up to 8 hours runtime) |
| Operating System | Embedded Linux with touchscreen UI |
| Applications | Embedded design, automotive, industrial, education, field service |
Portable Oscilloscope - 2 Series MSO Mixed Signal Compact, lightweight bench-/field-capable mixed-signal oscilloscope with up to 4 analog channels, optional 16 digital channels (MSO), bandwidth up to 500 MHz, and a high sample rate.
