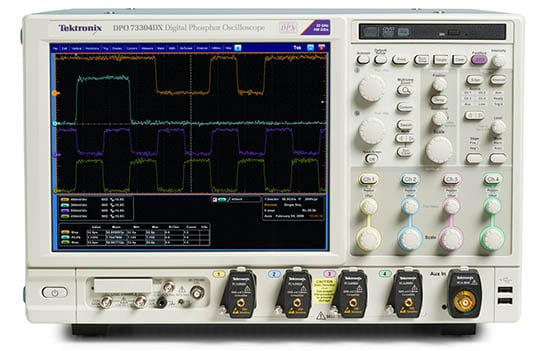

MSO/DPO70000DX Mixed Signal/Digital Phosphor Oscilloscopes
TF:
006412-HW-TEK-012
Overview
The MSO/DPO70000DX is one of the most advanced oscilloscopes in its class—enabling today's engineer to see signals better with minimal noise, debug signal anomalies faster and utilize measurement and analysis tools for automated compliance testing and other verifications.
- Analog Bandwidth: Up to 33 GHz (on 2 channels for 33GHz models), true real-time on 4 channels up to 23 GHz.
- Sample Rate: Up to 100 GS/s on 2 channels, 50 GS/s on 4 channels.
- Record Length: Up to 500 Megasamples (with MultiView Zoom).
- Channels: 4 Analog (DPO) or 4 Analog + 16 Digital (MSO).
- Waveform Capture Rate: >300,000 wfms/s.
- Digital Channels (MSO): 16 channels with 80 ps timing resolution.
- Vertical Resolution: 8-bit, with 12-bit in high-resolution (HD) mode.
- Triggering: 25 Gb/s Real-time Serial Trigger, advanced pattern/logic triggering.
- Special Features: iCapture for analog view of digital signals, FastFrame segmented memory, extensive protocol support (PCIe, USB, MIPI, etc.).
In addition, the MSO/DPO70000DX is perfect for analog/digital design and debug, data communications and high-speed serial communications. See how you can use the MSO/DPO70000DX for your next project to find and analyze a wide range of mixed-signal anomalies.
