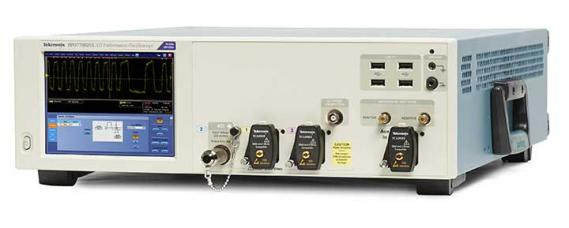

DPO70000SX ATI Performance Oscilloscope
006413-HW-TEK-013
Overview
DPO70000SX ATI Performance Oscilloscopes deliver the industry’s most accurate capture of high-speed signal behavior to verify, validate and characterize your next generation designs. Capture up to 70 GHz signals with the lowest noise and highest fidelity, ensuring the most accurate measurements of your signal’s true characteristics.
- Bandwidth: Up to 70 GHz real-time, expandable.
- Sample Rate: Up to 200 GS/s.
- Channels: Scalable from 1 to 16 (using UltraSync).
- Record Length: Up to 1 Billion points.
- ATI Architecture: Patented design for superior Signal-to-Noise Ratio (SNR) and low-noise acquisition.
- Triggering: >25 GHz edge trigger, <40 ps glitch trigger, <40 ps pulse width timer, Hardware Serial Trigger (8b/10b, 64b/66b, NRZ up to 14.1 Gbps).
- Serial Data Analysis: Hardware trigger/detector for high-speed interfaces (PCIe, SATA, USB, DDR).
- Form Factor: Compact 3U package, allowing for versatile multi-unit systems.
- Synchronization: UltraSync bus for precise multi-unit time synchronization.
- Analysis Software: Includes DPOJET for jitter, eye diagram, and compliance testing (with options for SignalVu for RF/Optical).
- Applications: Ideal for 100G/400G Ethernet, Coherent Optics, PCIe Gen5/6, DDR5, and advanced radar/RF analysis.
The Tektronix DPO70000SX ATI Oscilloscope datasheet series offers high-performance, scalable real-time signal capture up to 70 GHz with patented ATI (Asynchronous Time Interleaving) for low noise, enabling analysis for next-gen data comms (100G/400G), PCIe, DDR, and optical systems, featuring up to 200 GS/s sample rates, 14.1 Gbps serial triggering, and multi-unit scalability for more channels (up to 16) or higher bandwidth. Key specs include <40 ps glitch trigger, >25 GHz edge trigger, and integrated DPOJET for jitter/eye analysis, with a compact 3U form factor for versatile setups.
