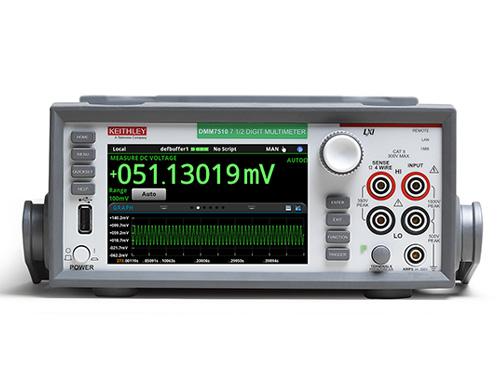

DMM7510 7.5 Digit Graphical Sampling Multimeter
TF:
006414-HW-TEK-014
Overview
The DMM7510 7.5 digit multimeter combines a precision, high-resolution digital multimeter (DMM), graphical touchscreen display, and high-speed, high-resolution digitizer to create the first graphical sampling multimeter. With pA-level sensitivity and 1Msample/s sampling, it accurately measures ultra-low sleep mode currents and transmit drain currents from wireless devices.
- Resolution: 7.5 Digits
- DC Voltage: 10 nV – 1010 V
- DC Current: 1 pA – 10.1 A
- Resistance (2/4-wire): 0.1 µΩ – 1.2 GΩ
- AC Current (TRMS): 1 nA – 10.1 A
- Frequency: 3 Hz – 500 kHz
- Digitizer: 1 MS/sec, captures waveforms
- Memory: Up to 27.5 Million Readings
- Display: 5-inch Color Touchscreen
- Interfaces: GPIB, USB, LAN (LXI), Digital I/O,
- Accuracy (1-yr): 14 ppm (DCV), 60 ppm (DCI), 24 ppm (Resistance)
The DMM7510’s digitizer can measure the current drain in all the IoT device’s operating states. Capture µA sleep mode currents and transmit currents up to 1A with the combination of sensitive and fast current measurements from the high resolution, high speed digitizer.
