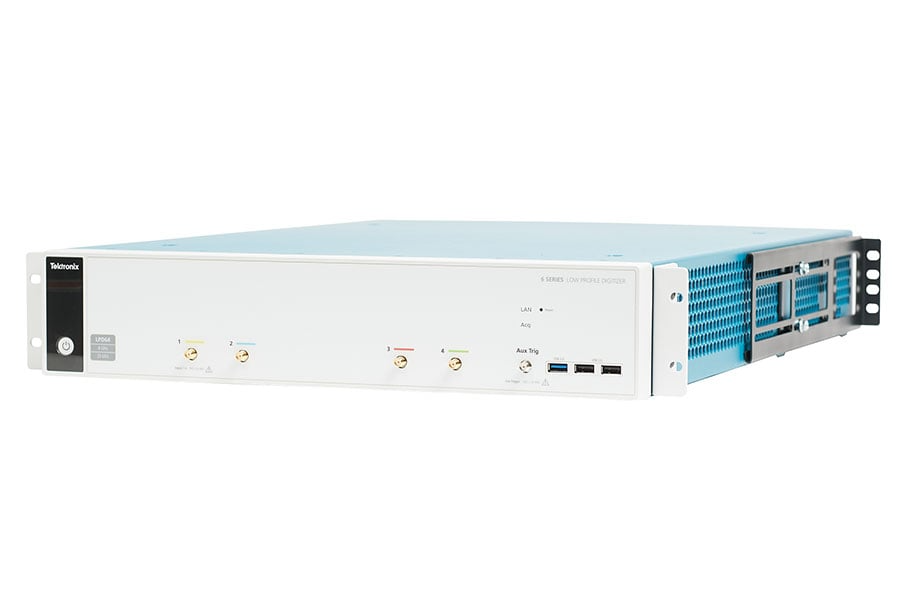

6 Series Low Profile Digitizer
006410-HW-TEK-010
Overview
Applications requiring high-speed digitizers shouldn’t trade-off performance when turning on channels. The 6 Series Low Profile Digitizer sets a new standard by not interleaving sample rate, bandwidth or record length. You get the fastest and most accurate performance from your digitizer – all in a 2U space.
- Channels: 4 Analog SMA inputs (Analog & Spectral/DDC simultaneous).
- Sample Rate: 25 GS/s on all channels.
- Bandwidth: DC to 8 GHz (optional), with versions available for 4 GHz, 6 GHz, etc..
- Vertical Resolution: 12-bit ADC (up to 16 bits in High Res mode at lower sample rates).
- Record Length: 125 Megapoints (standard), expandable to 250 Mpts, 500 Mpts, or 1 Giga points (optional).
- DDC (Digital Downconverter): Up to 2 GHz RF bandwidth (optional).
- Noise/Isolation: Best-in-class low noise, high ENOB (Effective Number of Bits), and channel-to-channel isolation.
- Form Factor: 2U Rackmount, LXI/USB 3.0 compliant for easy integration.
- Software: Same UI and APIs as 6 Series MSO for easy code migration.
The Tektronix 6 Series Low Profile Digitizer (LPD64) offers high-speed, multi-channel signal capture with specs like 25 GS/s sample rate, up to 8 GHz bandwidth, 12-bit ADC resolution, and large memory options (125 Mpts std, up to 1 Gpts opt) for detailed analysis in compact 2U rack form factors, featuring seamless integration with the 6 Series MSO benchtop platform for easy code transition from R&D to production.
