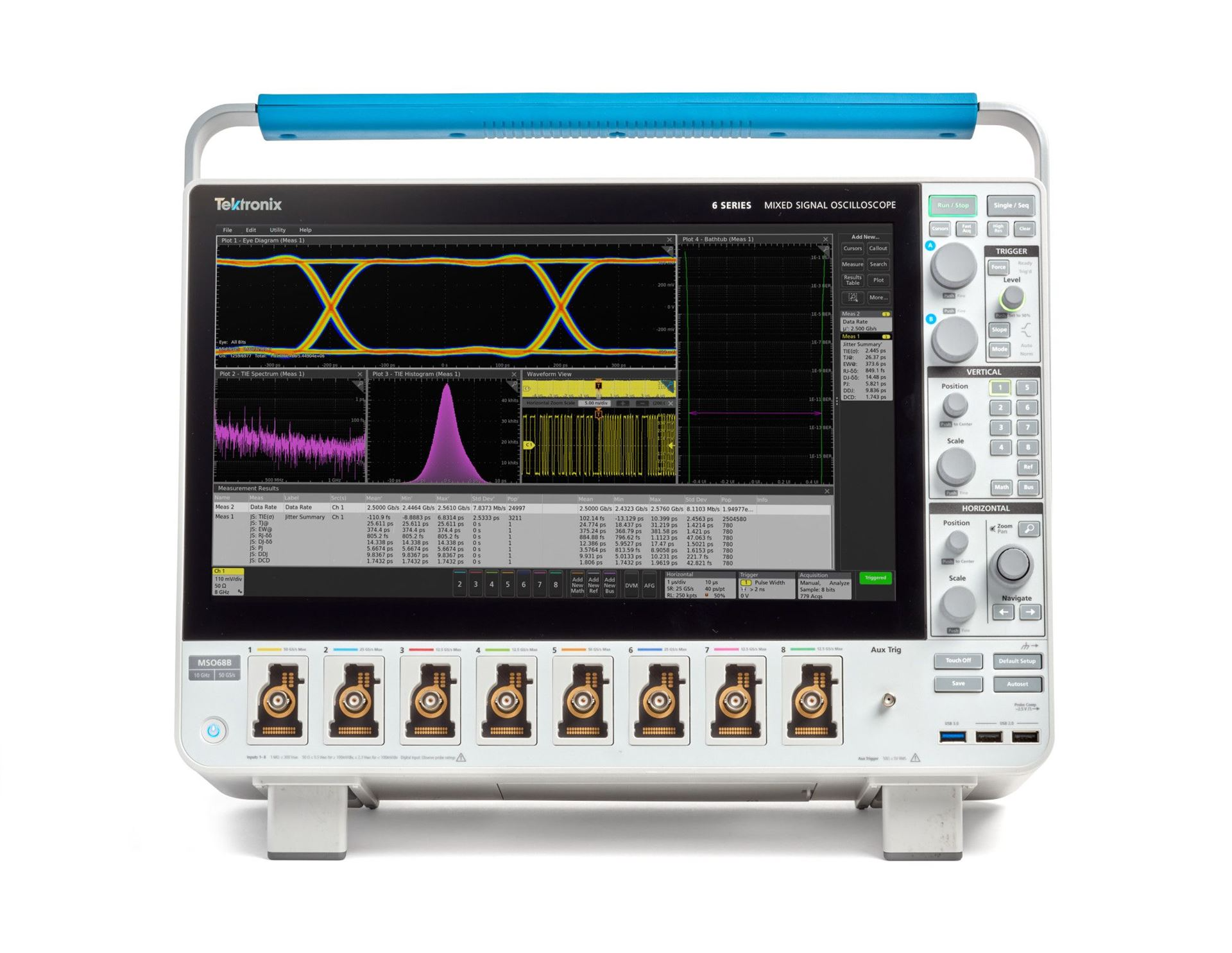

6 Series B MSO Mixed Signal Oscilloscope
TF:
006409-HW-TEK-009
Overview
With the lowest input noise and up to 10 GHz analog bandwidth, the 6 Series MSO provides the best signal fidelity for analyzing and debugging today's embedded systems with GHz clock and bus speeds.
- 10 GHz bandwidth
- 8 Flex Channels
- Each Flex Channel provides one analog signal or eight digital logic inputs with optional TLP058 logic probe
- Sample rate: Real-time: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (> 4 channels)
- Record length: 62.5Mpoints standard (expandable via option)
- Waveform capture rate: >500,000 waveforms/s
- Vertical resolution: 12-bit ADC, up to 16-bit in High Res mode
- 15.6" capacitive touchscreen
- Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains
The remarkably innovative pinch-swipe-zoom touchscreen user interface coupled with the industry's largest high-definition display and up to 8 FlexChannel inputs that let you measure one analog or eight digital signals per channel, the 6 Series MSO is ready for today's toughest challenges and tomorrow's too.
