5 Series MSO Low Profile
Main
Gallery 1

5 Series MSO Low Profile

Tektronix
TF: 006408-HW-TEK-008
Overview

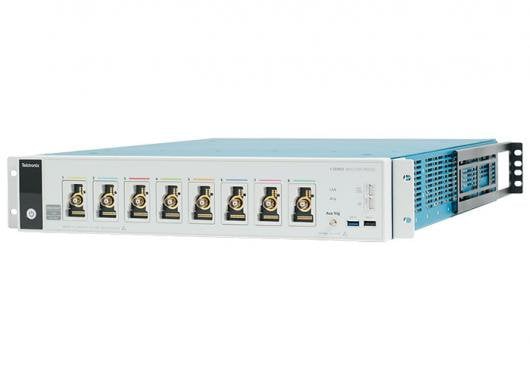

The Tektronix 5 Series MSO Low Profile is a space-saving, high-density digitizer (2U rack height) for ATE/embedded systems, offering 8 channels with up to 1 GHz bandwidth, 6.25 GS/s sample rate, 12-bit resolution (up to 16-bit effective), 125M record length, and powerful protocol analysis, designed for rack mounting but with a bench conversion option.

Ask For Price
Compare Product
  • Bandwidth: 500 MHz or 1 GHz (depending on model).
  • Analog Channels: 8 FlexChannel® inputs.
  • Sample Rate: 6.25 GS/s on all channels.
  • Record Length: 125 Mpoints standard (expandable).
  • Vertical Resolution: 12-bit ADC (up to 16-bit with high-res mode).
  • Waveform Capture Rate: >500,000 waveforms/s.
  • Form Factor: 2U high, rack-mountable.
  • Probes: Supports TekVPI probes with power for up to 80W.
  • Connectivity: USB (Host/Device), LAN, DisplayPort, DVI-D, VGA.
  • Analysis: Standard DVM, Trigger Counter, Protocol Analysis (optional), DPOJET (optional).

Key features include <1920x1080> HD display (via external monitor), 12-bit ADC, >500k wfms/s capture rate, and a robust TekVPI probe interface, making it ideal for detailed signal analysis in compact environments.
