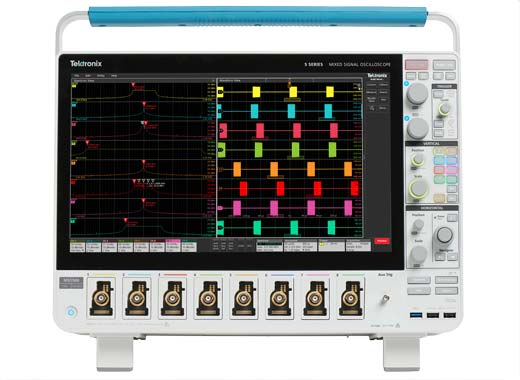

5 Series B MSO 8 Channel Mixed Signal Oscilloscope
TF:
006407-HW-TEK-007
Overview
The Tektronix 5 Series B MSO 8-Channel Mixed Signal Oscilloscope (MSO58B) offers 8 FlexChannel inputs (convertible to 64 digital channels), bandwidths from 350 MHz to 2 GHz, a 6.25 GS/s sample rate, large 15.6" HD touchscreen, and extensive analysis tools like Spectrum View, with key specs including 12-bit ADC (up to 16-bit High Res), >500k waveforms/s capture, and optional features like built-in AWG and advanced serial decoding.
- Channels: 8 FlexChannel Inputs (each can be 1 analog or 8 digital with TLP058 probe for up to 64 channels).
- Bandwidth: 350 MHz, 500 MHz, 1 GHz, 2 GHz (upgradeable).
- Sample Rate: 6.25 GS/s (all analog/digital channels).
- Record Length: 62.5 Mpoints standard (up to 500 Mpoints optional).
- Display: 15.6" HD (1920x1080) Capacitive Touchscreen.
- Vertical Resolution: 12-bit ADC (up to 16-bit High-Res Mode).
- Waveform Capture Rate: >500,000 waveforms/second.
Get a complete view of your design with high-fidelity waveforms, insightful measurements, unique spectrum analysis, and flexible probing. Experience the intuitive user interface appreciated by engineers everywhere
