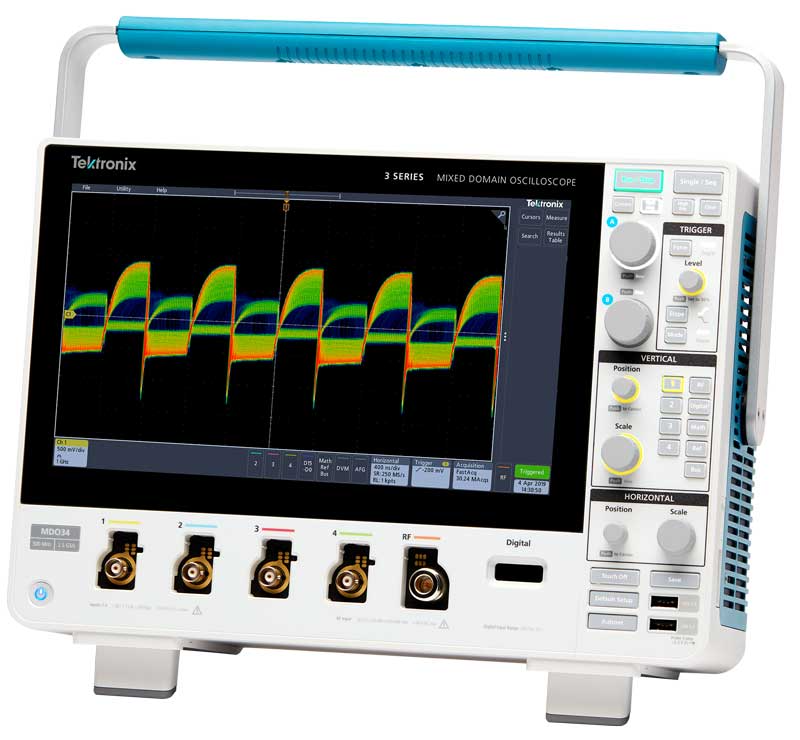

3 Series MDO Mixed Domain Oscilloscope
TF:
006405-HW-TEK-005
Overview
With the largest display in class, improved low-level signal measurement accuracy and industry-leading probe performance, the 3 Series MDO sets a new standard for bench oscilloscopes. Whether you’re testing your baseband design for IoT or just for simple EMI sniffing, the 3 Series has a unique true hardware spectrum analyzer built right in with superior RF test performance and guaranteed RF specifications.
- Bandwidth: 100 MHz
- Channels: 4
- Sample Rate: 2.5 GS/s
- Oscilloscope + Spectrum Analyzer on the same time domain
- 1 GHz hardware-based spectrum analyzer standard, 3 GHz optional
- 10 M record length on all channels
- >280,000 wfm/s maximum waveform capture rate
- Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz analog bandwidth
- Spectrum Analyzer
- Frequency range: 9 kHz - 1 GHz (standard) or 3 GHz (optional)
- Ultra-wide capture bandwidth up to 3 GHz
- Arbitrary Function Generator (optional)
- 13 predefined waveform types
Oscilloscope probes should not be overlooked as a key element in the measurement signal path. When you buy a 3 Series MDO you get the industry’s best probes free. Featuring industry-best loading of 3.9 pF to your oscilloscope, the TPP Series probes will be your go-to probe for everyday use.
