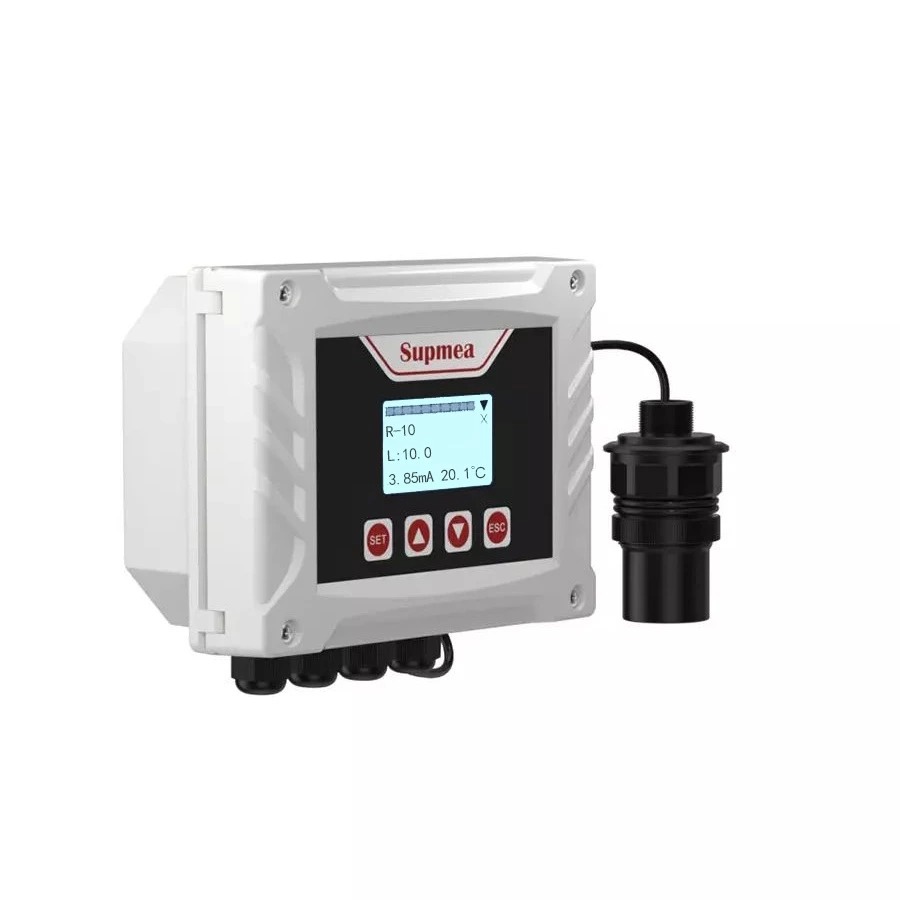

Supmea SUP-ULS-B Ultrasonic level transmitter
-
NG # 00300-HW-SUPMEA-001
Manufactured by:
SUP-ULS-B Ultrasonic level transmitter is a non-contact, high reliability, cost-effective, easy to install and maintain liquid level/material level measure instrument. It can meet most liquid level/level measurement requirements without contacting the measured medium. It is a new generation of ultrasonic level gauge with completely independent property rights of our company.
Specification
Product Ultrasonic level transmitter Model SUP-ULS-B Measure range 0-5m,0-10m,0-15m(optional) Blind zone ≤0.3m(range 5m)
≤0.35m(range 10m)
≤0.5m(range 15m) Accuracy ±0.3%FS, ±0.5%FS Display Monochrome LCD screen Output (optional) Isolated,4-20mA Output precision:±0.5%FS RL≤500Ω Measuring variable Level/Distance Power supply 100-240 VAC,5W MAX,50/6Hz 18-28 VDC Temperature range Converter:-20-60 ℃
Sensor:-20-80 ℃Humidity range 10%-85% RH(no condensation) Ingress protection Converter:IP65 Sensor:IP68 Cable 10m(Standard)
30m MAX(optional)Alarm 2 relays Capacitance AC250V/3A(Standard) 4 relays(optional) Inatallation Wall-mounted Communication Isolated RS485,Modbus-RTU
Description
Features
Convenient operation
Fault self-diagnosis technology
A variety of working conditions algorithm selection
Fast response time
Automatic temperature compensation
High precision
Characteristics
Measure range: 0-15m(optional)
Blind zone: 0.3m
Accuracy: ±0.3%FS,±0.5%FS
Power supply: 100-240 VAC,18-28 VDC
