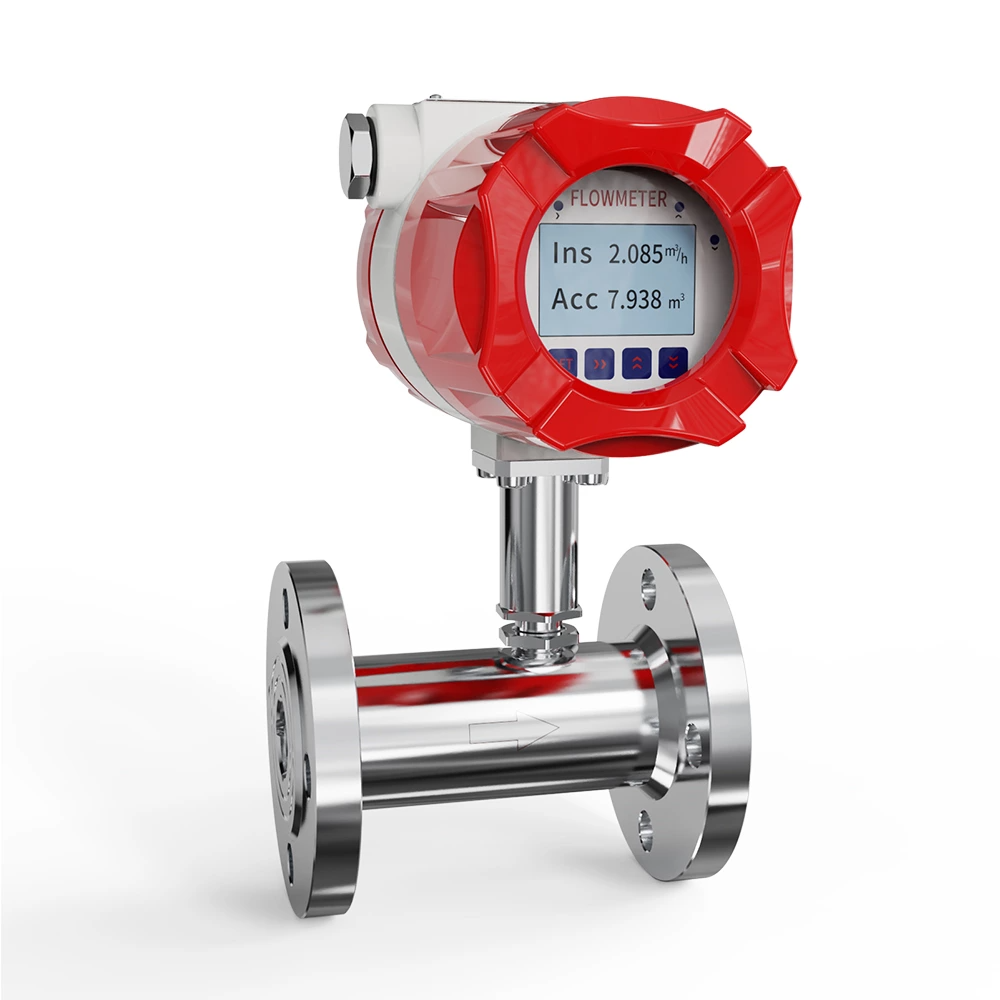

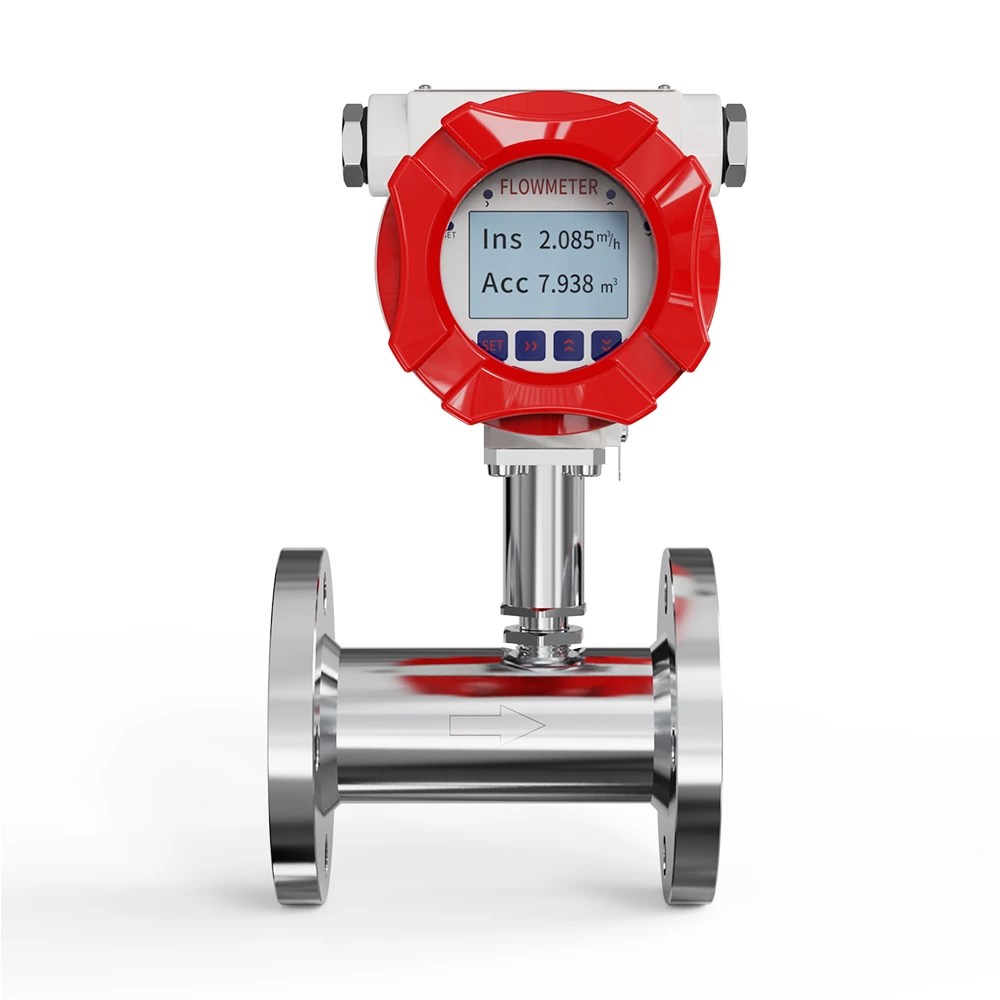

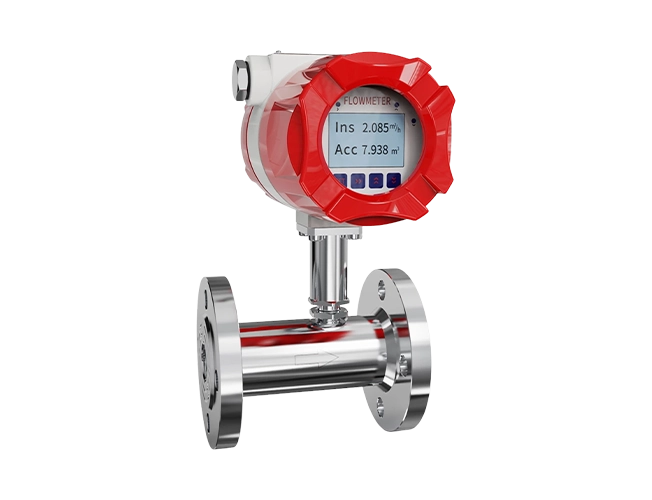

Supmea SUP-LWGY Turbine flowmeter flange connection
TF:
00311-HW-SUPMEA-011
Overview
SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance.
| Product | Turbine flowmeter |
| Model | SUP-LWGY |
| Diameter Nominal | DN4~DN200 |
| Atmospheric Pressure | 86kPa～106kPa |
| Accuracy | 0.5%R, 1.0%R |
| Medium viscosity | Less than 5×10-6m2/s |
| (for the liquid with >5×10-6m2/s, | |
| the flowermeter needs to be calibrated before using) | |
| Medium Temperature | -20℃～＋120℃ |
| Power Supply | 3.6V lithium battery; 220VAC; 24VDC |
| Output Signal | Pulse, 4-20mA, Modbus, Hart |
| Ingress protection | IP65 (IP67, IP68 protocol supply, pulse converter probe IP00) |
It is used to measure the volume flow of low viscosity liquid in closed pipe. In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.
