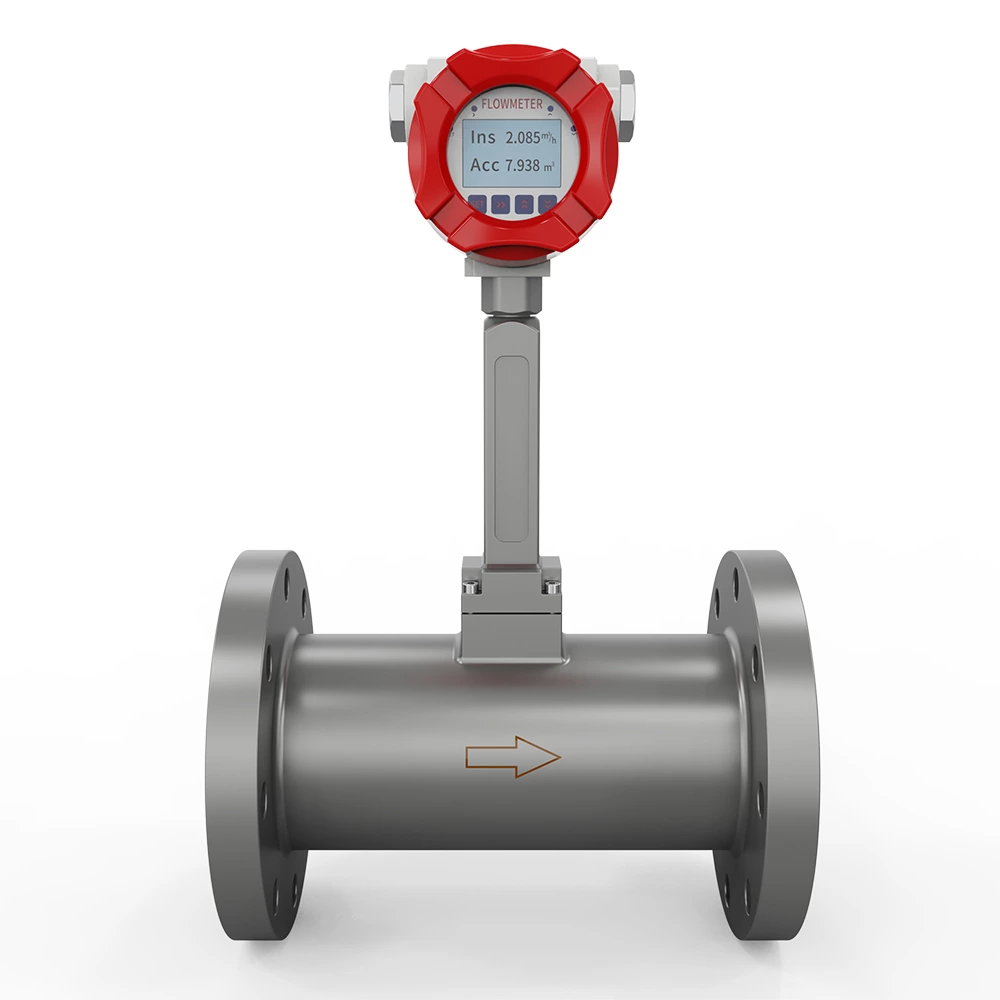

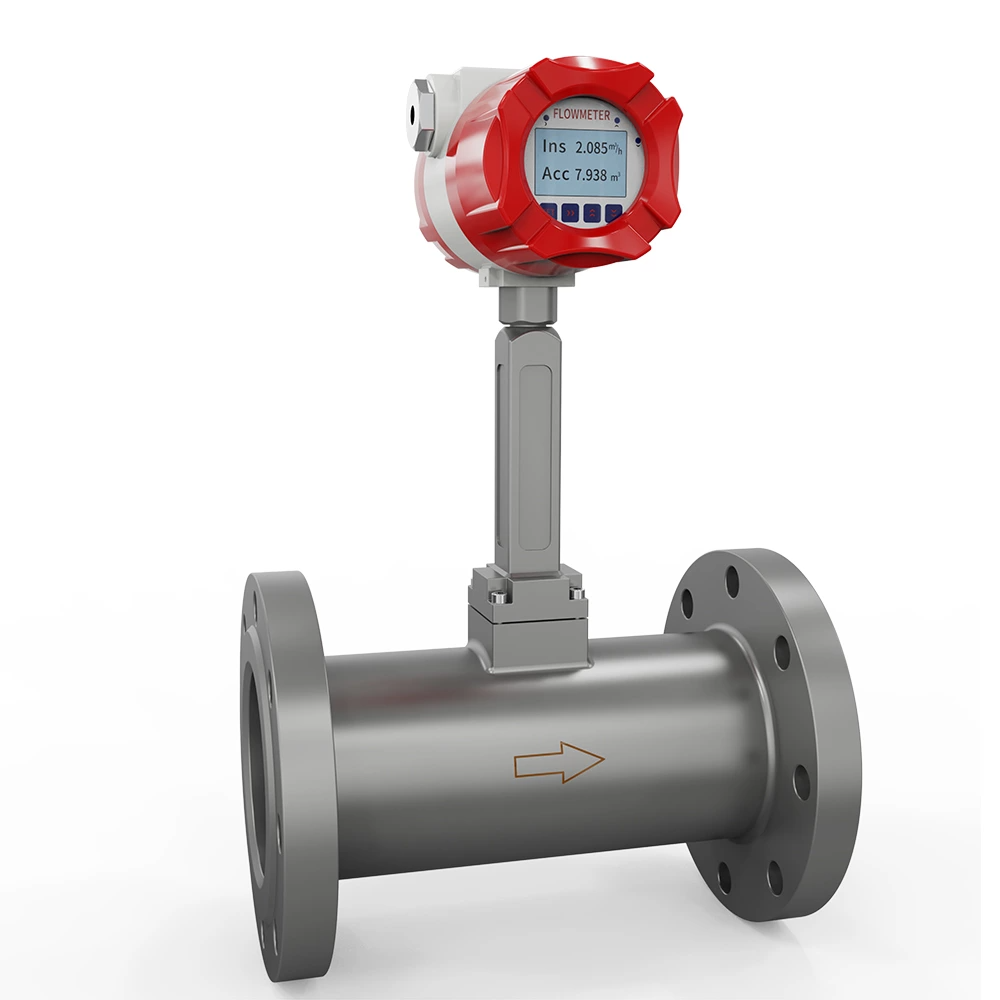

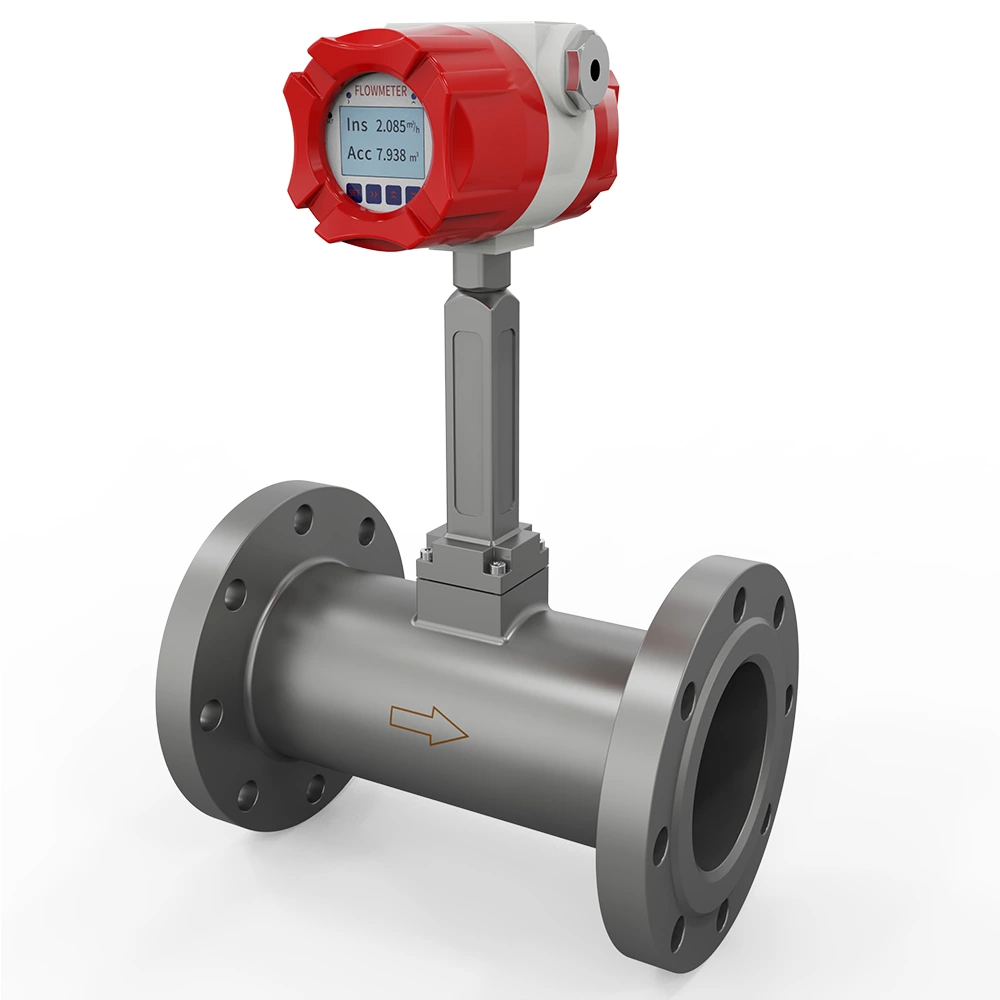

Supmea SUP-LUGB Vortex flowmeter without temperature & pressure compensation
TF:
00307-HW-SUPMEA-007
| Product | Vortex flowmeter |
| Model | SUP-LUGB |
| Diameter nominal | DN15~DN300 |
| Installation | Wafer connection: DN15-DN300(priority PN2.5MPa); Flange connection: DN15-DN50(priority PN2.5MPa);DN65-DN200(priority PN1.6MPa);DN250-DN300(priority PN1.0MPa） |
| Accuracy | Gas without compensation: DN15-DN25--1.5%, DN32-DN200--1.0%, DN250-DN300--1.5% |
| Liquid without compensation: DN15-DN300-- 1.0% | |
| Temperature and pressure compensation: DN25-DN300-- 1.5% | |
| Range Ratio | Gas density:1.2kg/m3, Range ratio: 8:1 |
| Liquid density:1000kg/m3, Range ratio: 8:1 | |
| when the medium density is different, the range ratio will change | |
| Medium Temperature | -20°C ~ +150°C、-20°C ~ +260°C、-20°C ~ +300°C |
| Output signal | 4-20mA |
| Frequency | RS485 communication (Modbus RTU) |
| Power supply | 24VDC±5% Li battery(3.6VDC) |
| Ingress protection | IP65 |
| Body Materials | Stainless shell |
| Display | 128*64 dot matrix LCD |
SUP-LUGB Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal, which specialize in measurement of steam, gas and liquid of lower viscosity.
