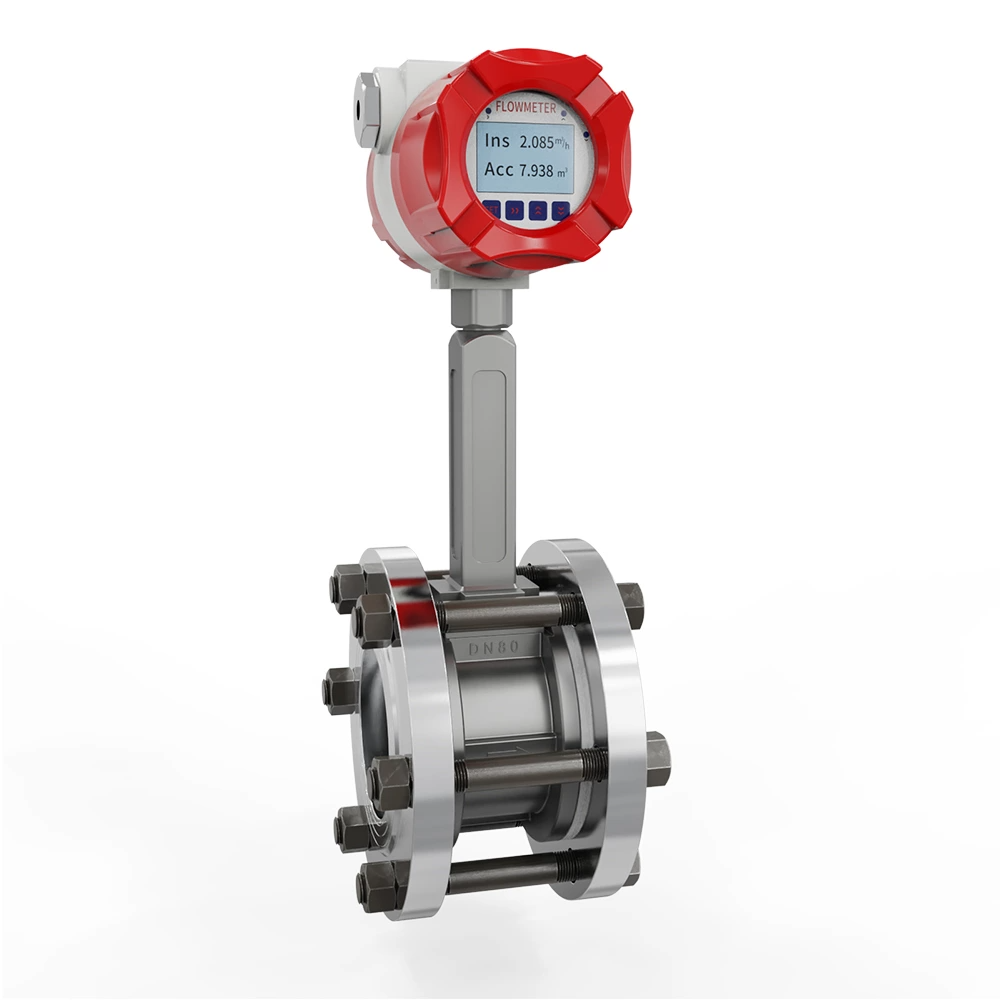

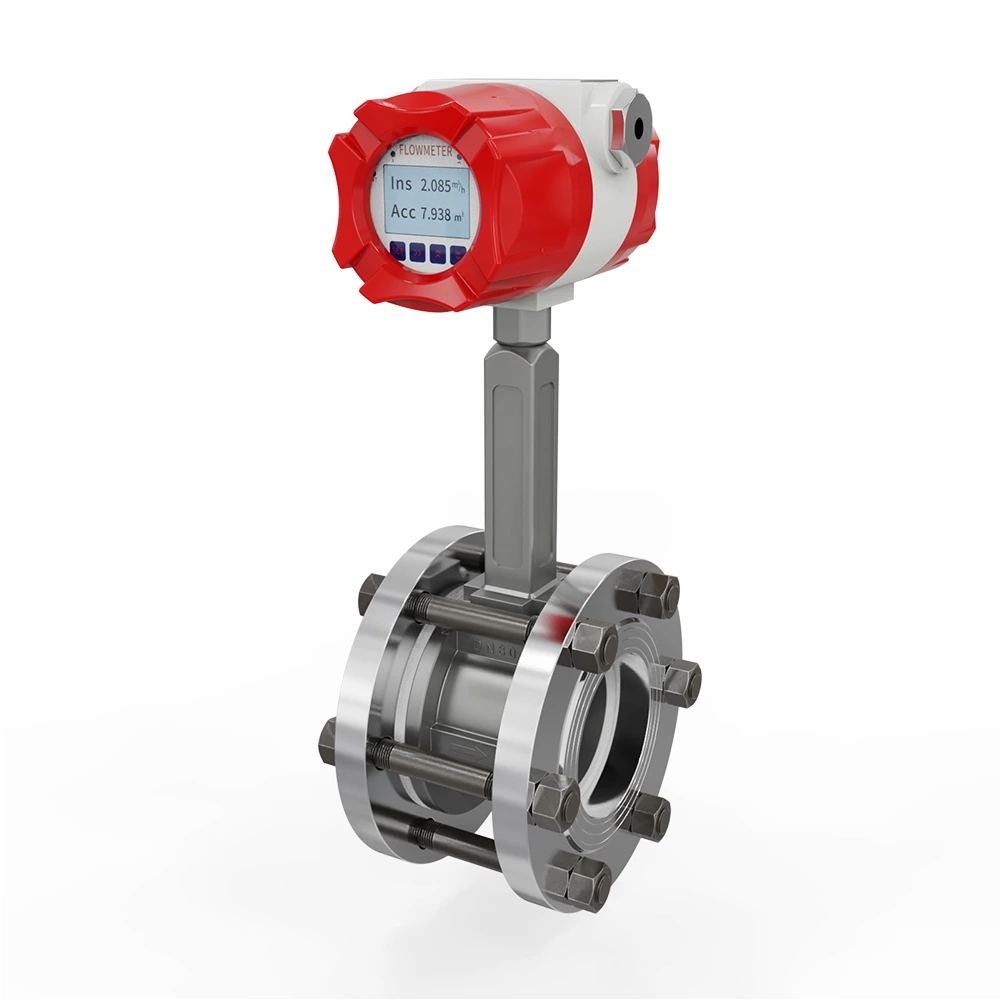

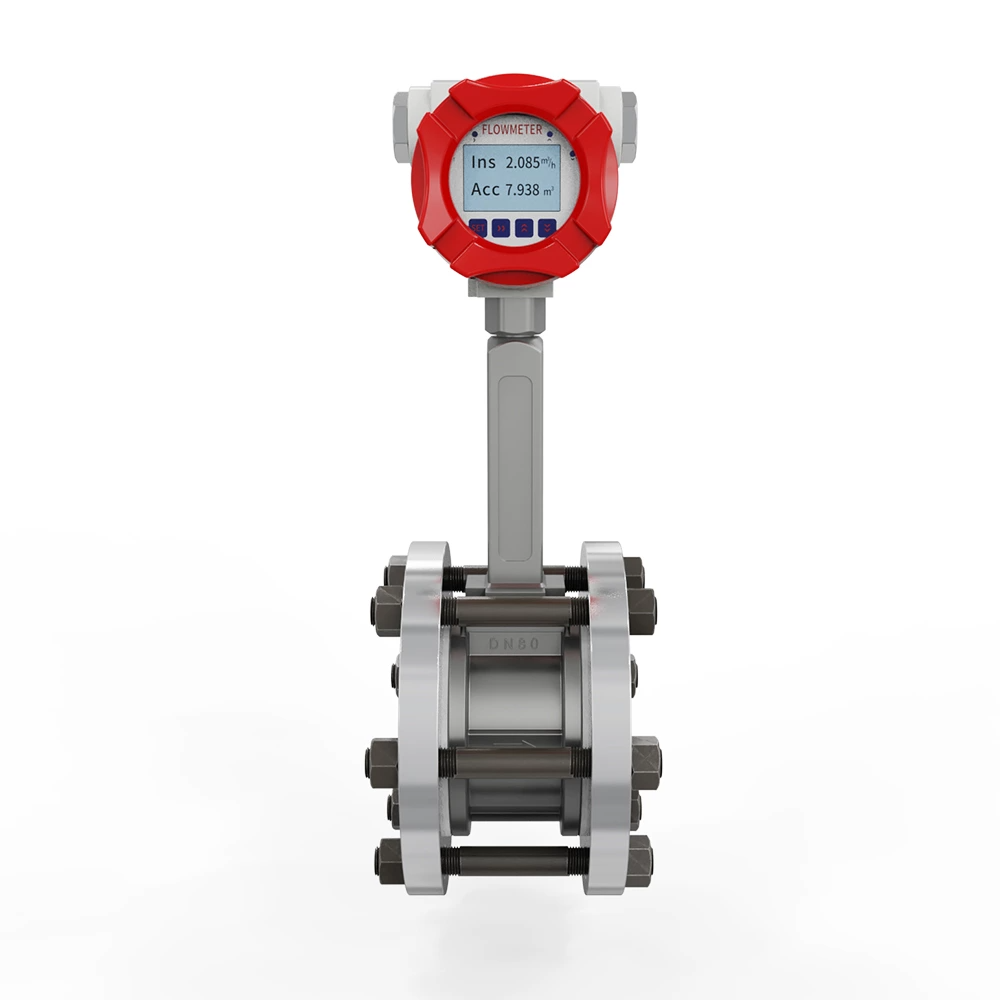

Supmea SUP-LUGB Vortex flowmeter wafer installation
TF:
00310-HW-SUPMEA-010
Overview
A fluid flowing with a certain velocity and passing a fixed obstruction generates vortices. The generation of vortices is known as Karman’s Vortices.The frequency of vortex shedding is a direct linear function of fluid velocity and frequency depends upon the shape and face width of bluff body.
| Product | Vortex flowmeter wafer installation |
| Model | SUP-LUGB |
| Diameter nominal | DN15~DN300 |
| Installation | Wafer connection: DN15-DN300(priority PN2.5MPa) |
| Accuracy | 1.5%, 1.0% |
| Range Ratio | Gas density:1.2kg/m3, Range ratio: 8:1 |
| Medium Temperature | -20°C ~ +150°C、-20°C ~ +260°C、-20°C ~ +300°C |
| Output signal | 4-20mA |
| Frequency | RS485 communication (Modbus RTU) |
| Power supply | 24VDC±5% Li battery (3.6 VDC) |
| Ingress protection | IP65 |
| Body Materials | Stainless shell |
| Display | 128*64 dot matrix LCD |
SUP-LUGB Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal, which specialize in measurement of steam, gas and liquid of lower viscosity.
