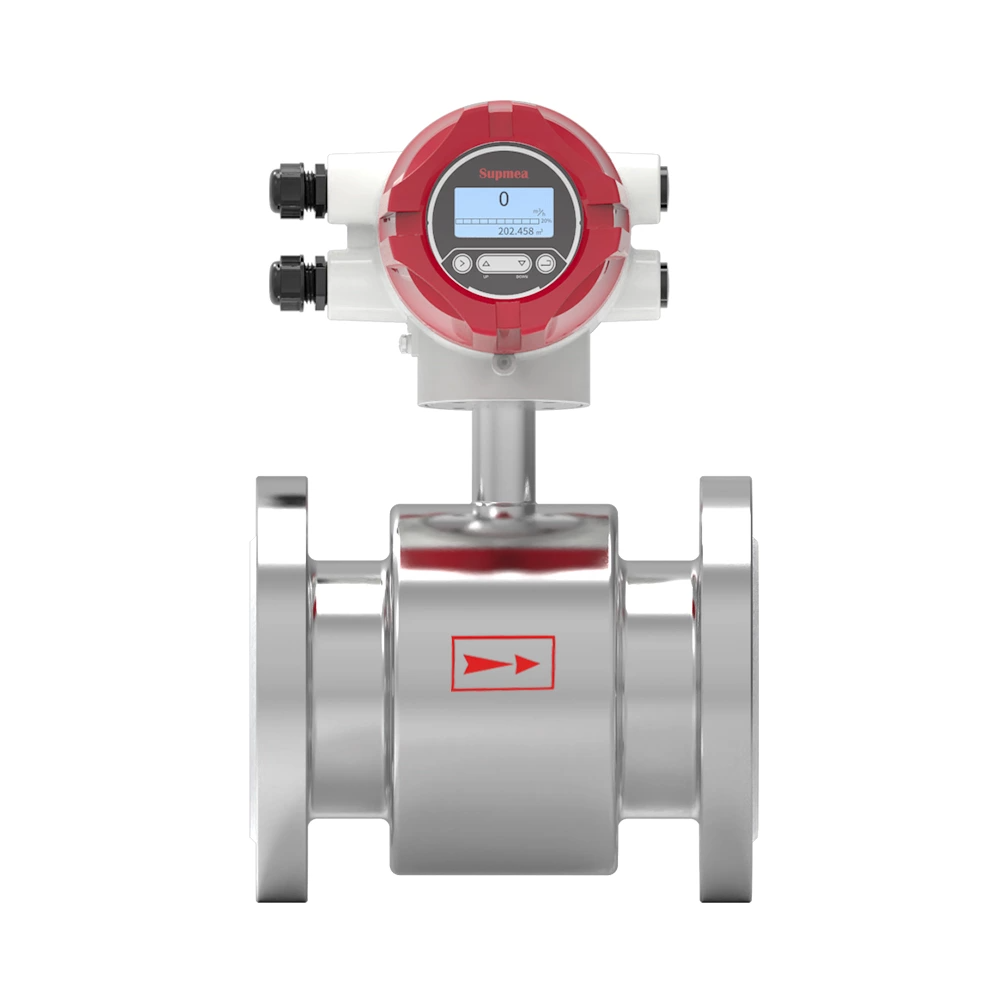

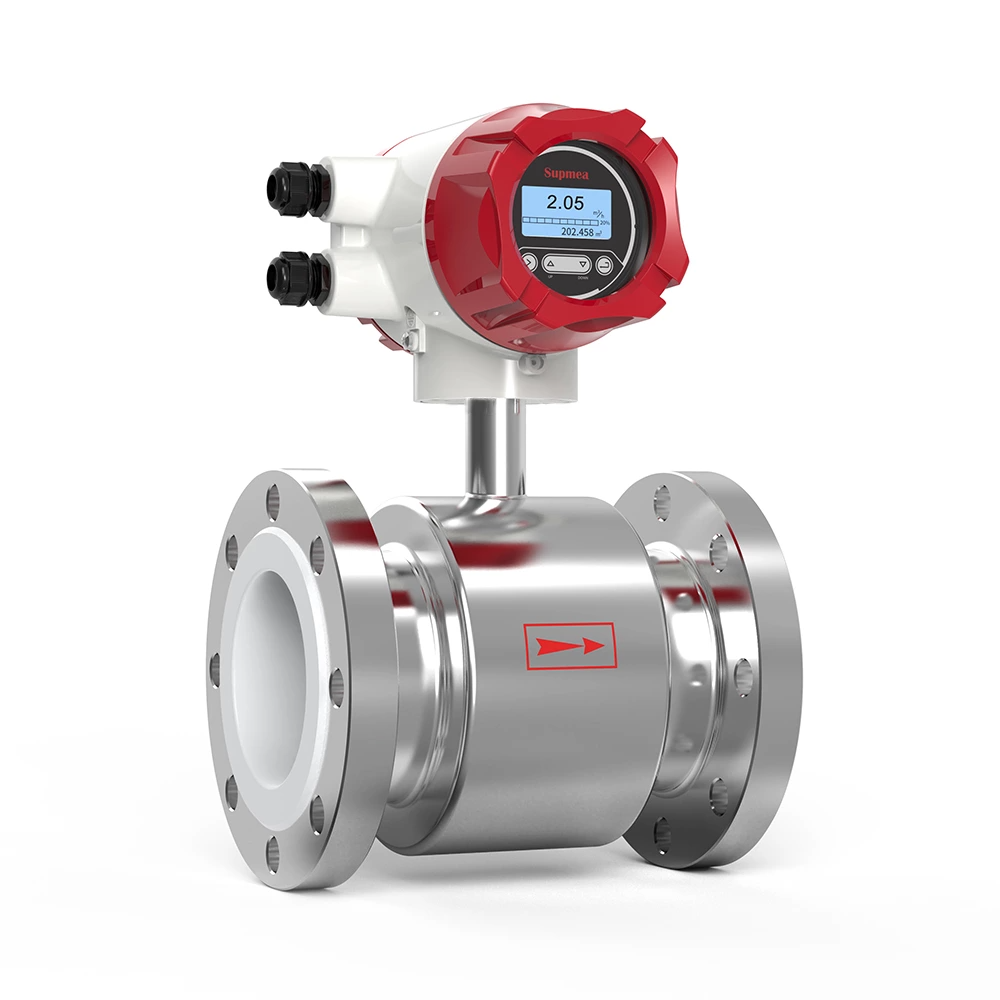

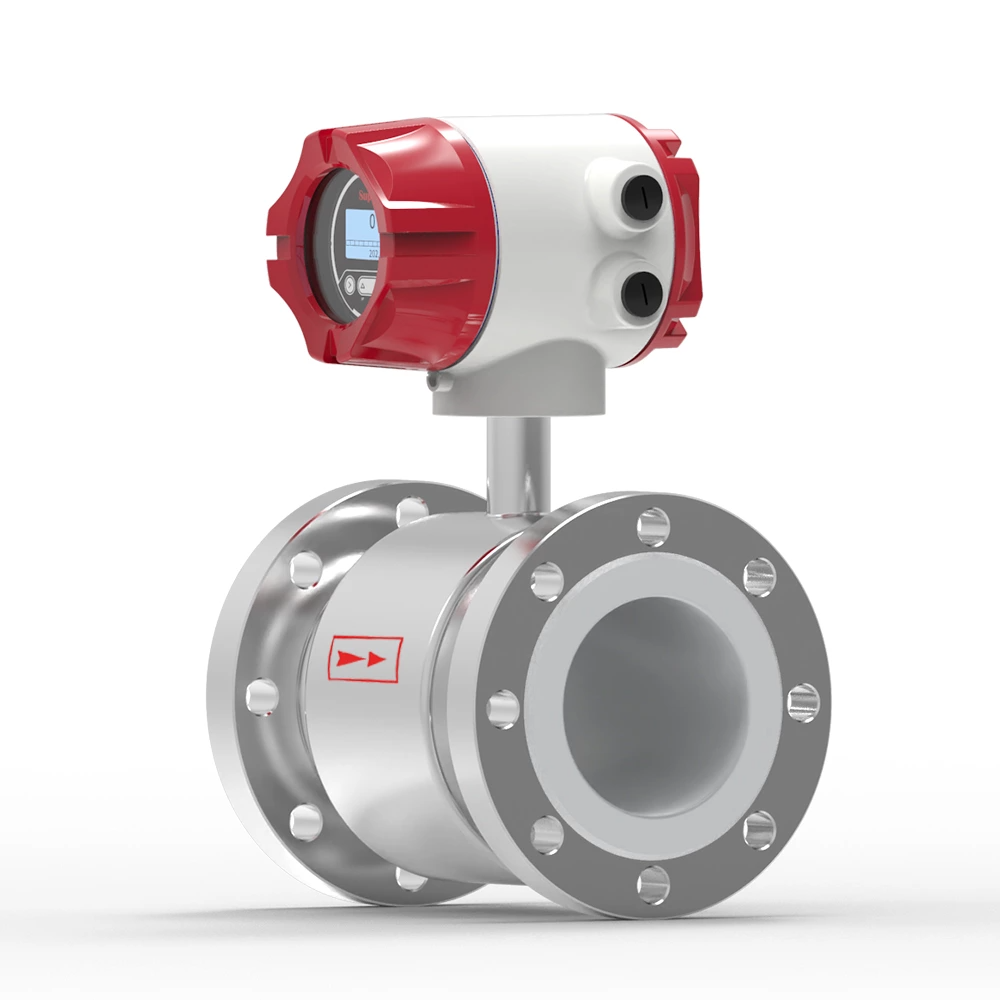

Supmea SUP-LDG Stainless steel body electromagnetic flowmeter
TF:
00304-HW-SUPMEA-004
Overview
Magnetic flow meters operate under the principle of Faraday's Law of Electromagnetic Induction to measure liquid velocity.
| Product | Electromagnetic flow meter |
| Model | SUP-LDG |
| Diameter nominal | DN15~DN1200 |
| Nominal pressure | 0.6~4.0MPa |
| Accuracy | ±0.5%，±2mm/s(flowrate<1m/s) |
| Liner material | PFA,F46,Neoprene,PTFE,FEP |
| Electrode material | Stainless steel SUS316L, Hastelloy C, Titanium, |
| Tantalum Platinum-iridium | |
| Medium temperature | Integral type: -10℃~80℃ |
| Split type: -25℃~180℃ | |
| Ambient Temperature | -10℃~60℃ |
| Electrical conductivity | Water 20μS/cm other medium 5μS/cm |
| Structure type | Tegral type, split type |
| Ingress protection | IP65 |
| Product standard | JB/T 9248-1999 Electormagnetic Flowmeter |
Following Faraday's Law, magnetic flowmeters measure the velocity of conductive liquids in pipes, such as water, acids, caustic, and slurries. In order of usage, magnetic flowmeter use in water/wastewater industry, chemical, food and beverage, power, pulp and paper, metals and mining, and pharmaceutical application.
