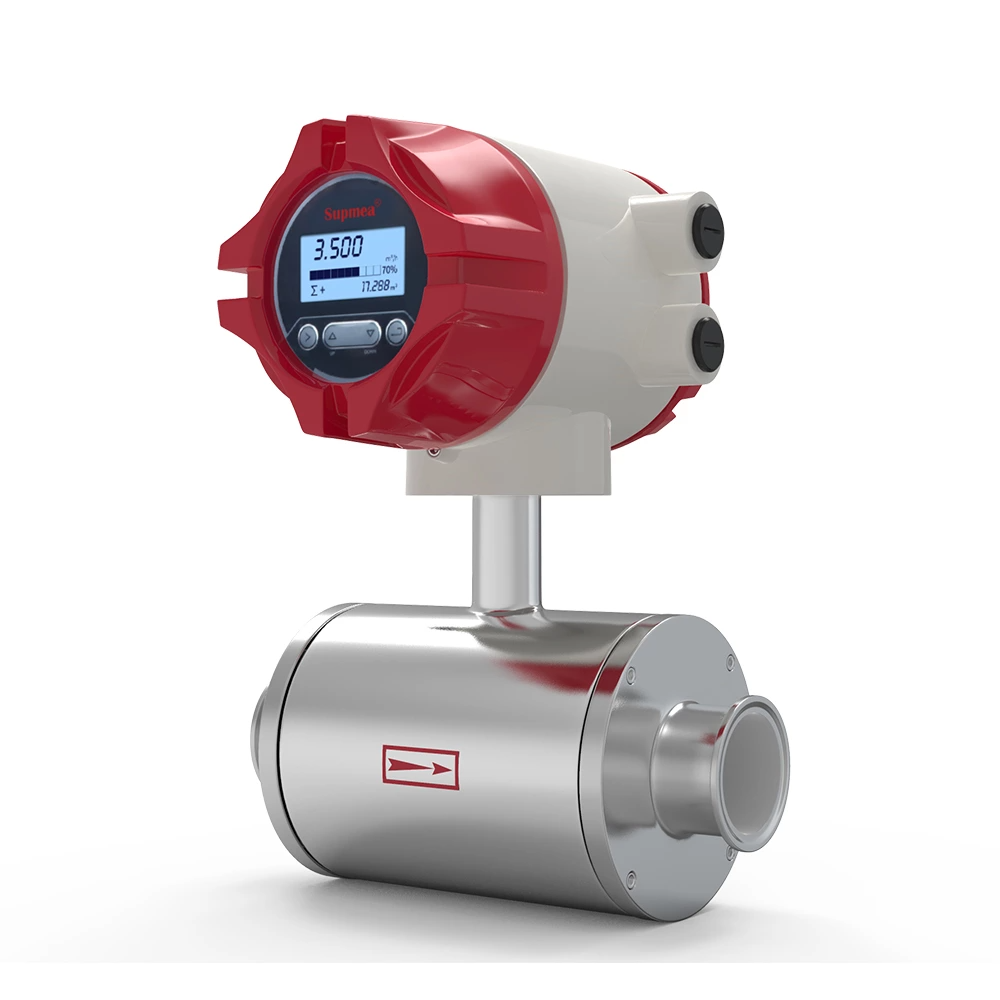

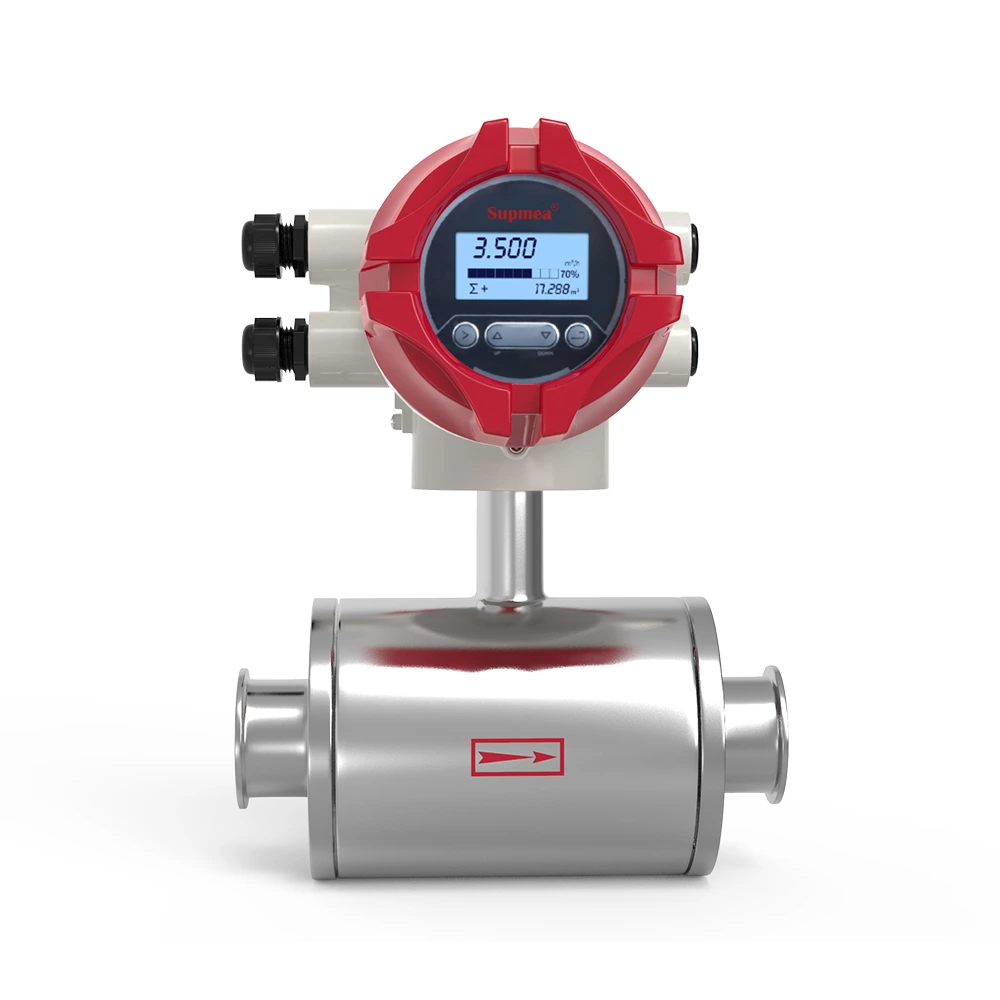

Supmea SUP-LDG Sanitary electromagnetic flowmeter for food processing
TF:
00306-HW-SUPMEA-006
| Product | Sanitary type electromagnetic flowmeter (magnetic flow meter) |
| Model | SUP-LDGS |
| Diameter nominal | DN15~DN100 |
| Nominal pressure | 0.6~4.0MPa |
| Accuracy | ±0.5%，±2mm/s(flowrate<1m/s) |
| Repetitiveness | 0.2% |
| Liner material | PFA, F46, Neoprene, PTFE, FEP |
| Electrode material | Stainless steel SUS316L, Hastelloy C, Titanium, |
| Tantalum, Platinum-iridium | |
| Medium temperature | Integral type: -10℃~80℃ |
| Split type: -25℃~180℃ | |
| Ambient temperature | -10℃~55℃ |
| Power supply | 100-240VAC，50/60Hz / 22VDC—26VDC |
| Electrical conductivity | Water 20μS/cm other medium 5μS/cm |
| Ingress protection | IP65, IP68(optional) |
| Product standard | JB/T 9248-2015 |
Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The remote type is with high IP protection class and can be installed in different locations for the transmitter and converter. Output signal can pulse,4-20mA or with RS485 communication.
