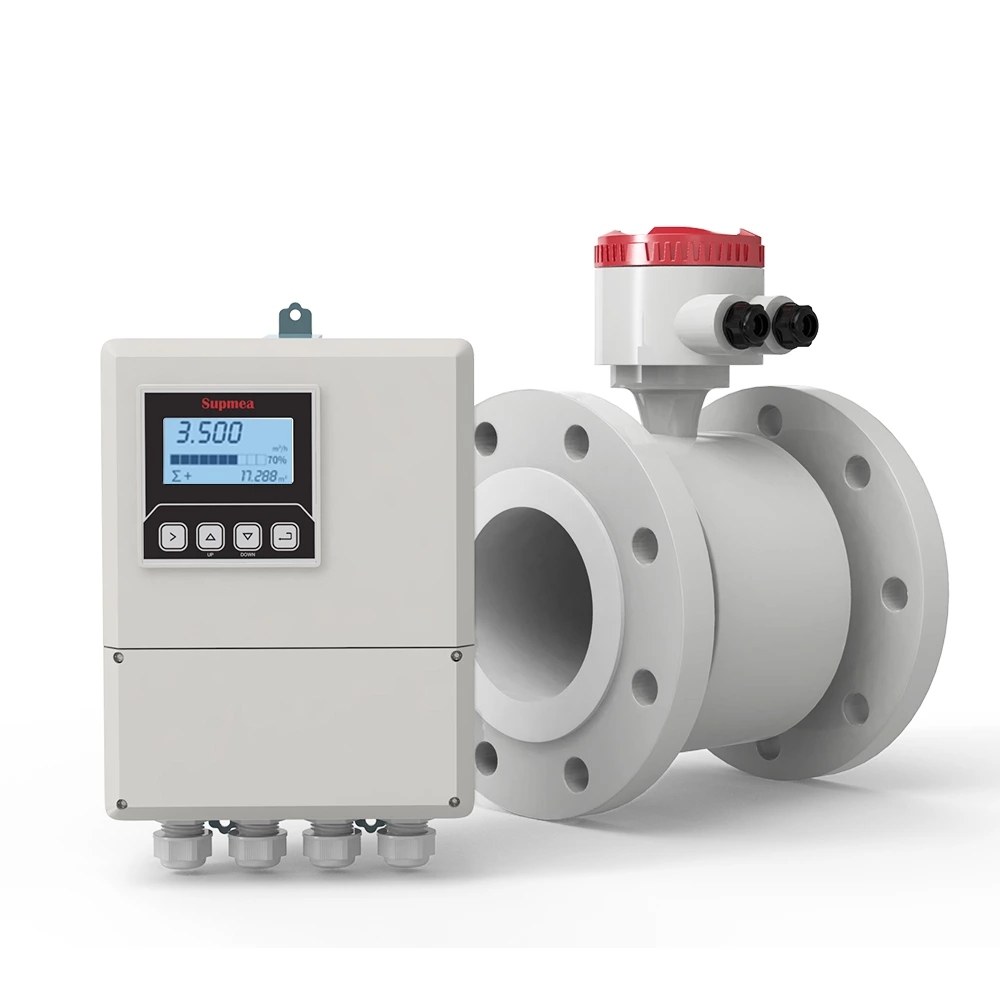

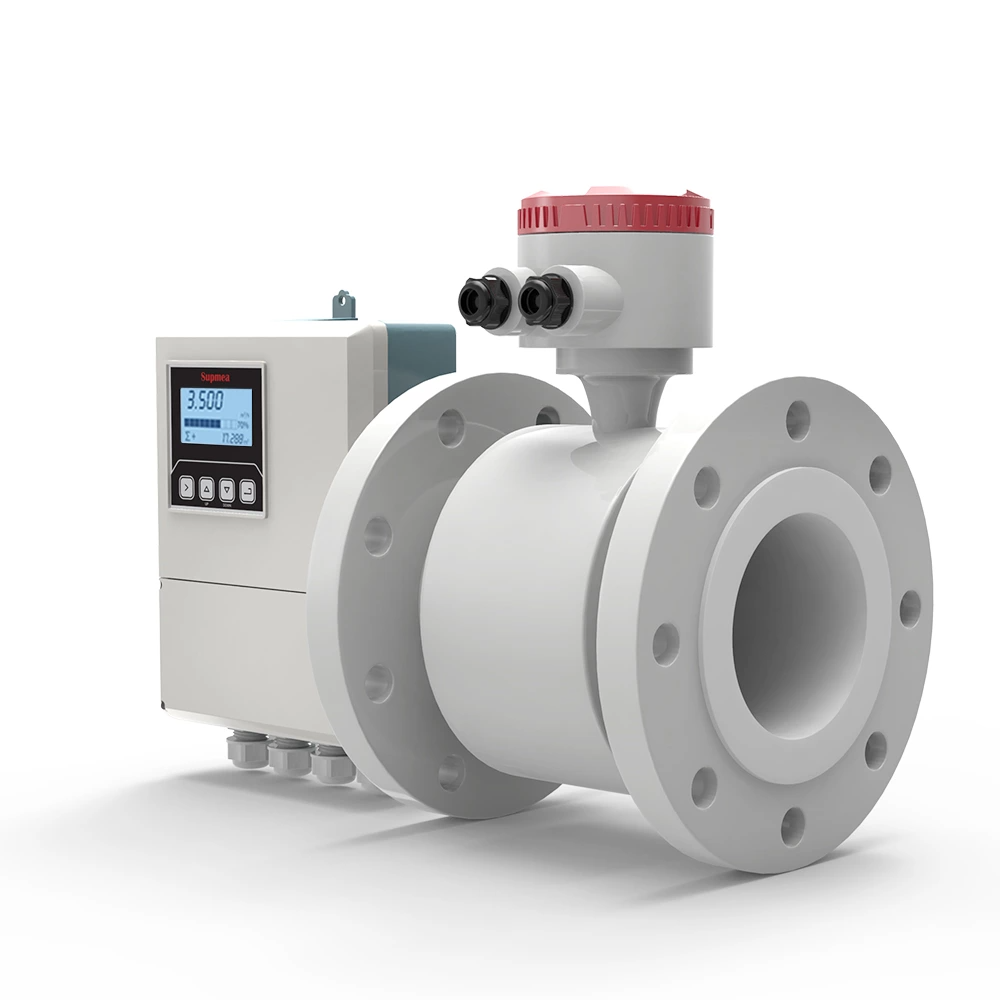

Supmea SUP-LDG Remote type electromagnetic flowmeter
TF:
00303-HW-SUPMEA-003
| Product | Electromagnetic flowmeter |
| Model | SUP-LDG |
| Diameter nominal | DN15~DN1200 |
| Nominal pressure | DN15 - DN250, PN ≤1.6MPa; DN300 - DN1000, PN ≤1.0MPa; DN1200, PN ≤0.6 MPa; Higher pressure can be customized |
| Accuracy | ±0.5% F.S. (Flow speed > 1m/s); ±0.5% F. S. ±2mm/s (Flow speed <1m/s) |
| Liner material | Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA |
| Electrode material | 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt |
| Medium temperature | Neoprene: -10…+60℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+180℃ |
| Power supply | 85-245VAC，50/60Hz, 22VDC-26VDC |
| Electrical conductivity | Water min.20μS/cm;other medium min.5μS/cm |
| Structure type | Compact type, Remote type |
| Ingress protection | IP65 for converter, IP68 for sensor |
| Product standard | JB/T 9248-1999 Electromagnetic Flow Meter |
Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The remote type is with high IP protection class and can be installed in different locations for the transmitter and converter. Output signal can pulse,4-20mA or with RS485 communication.
