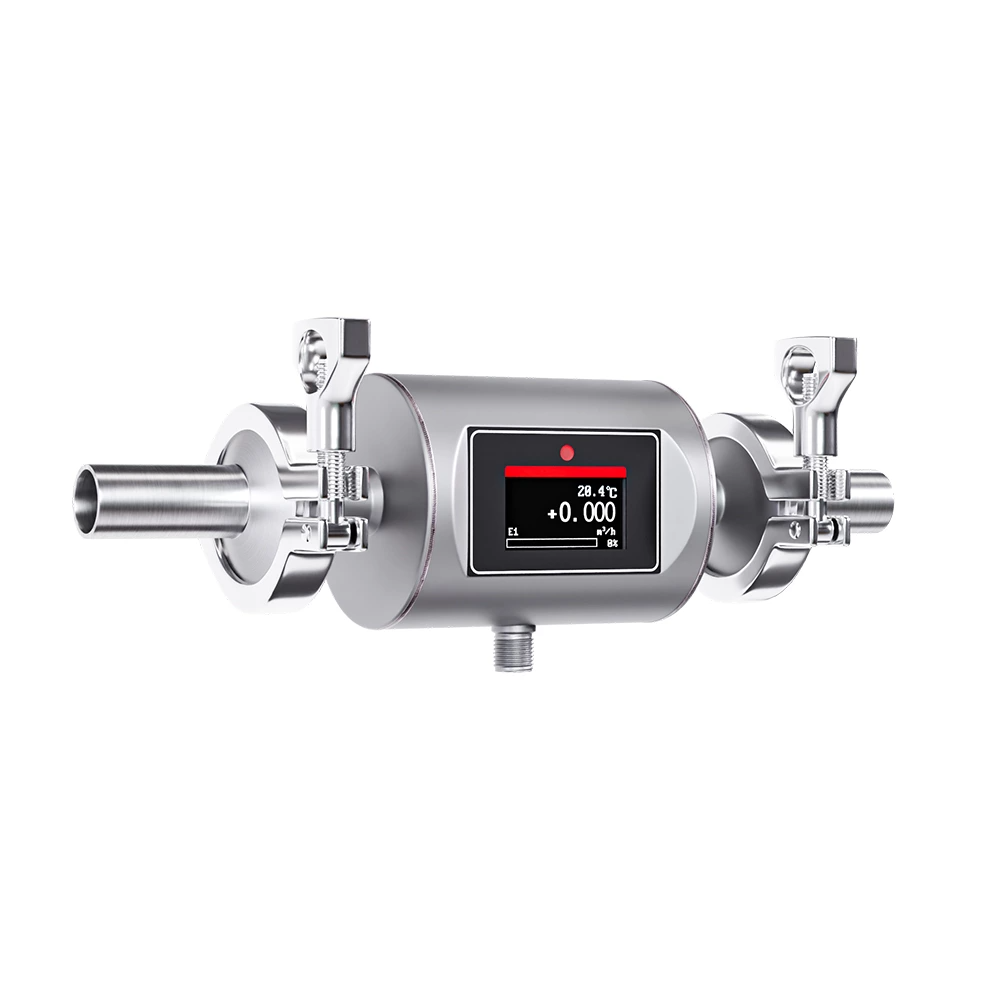

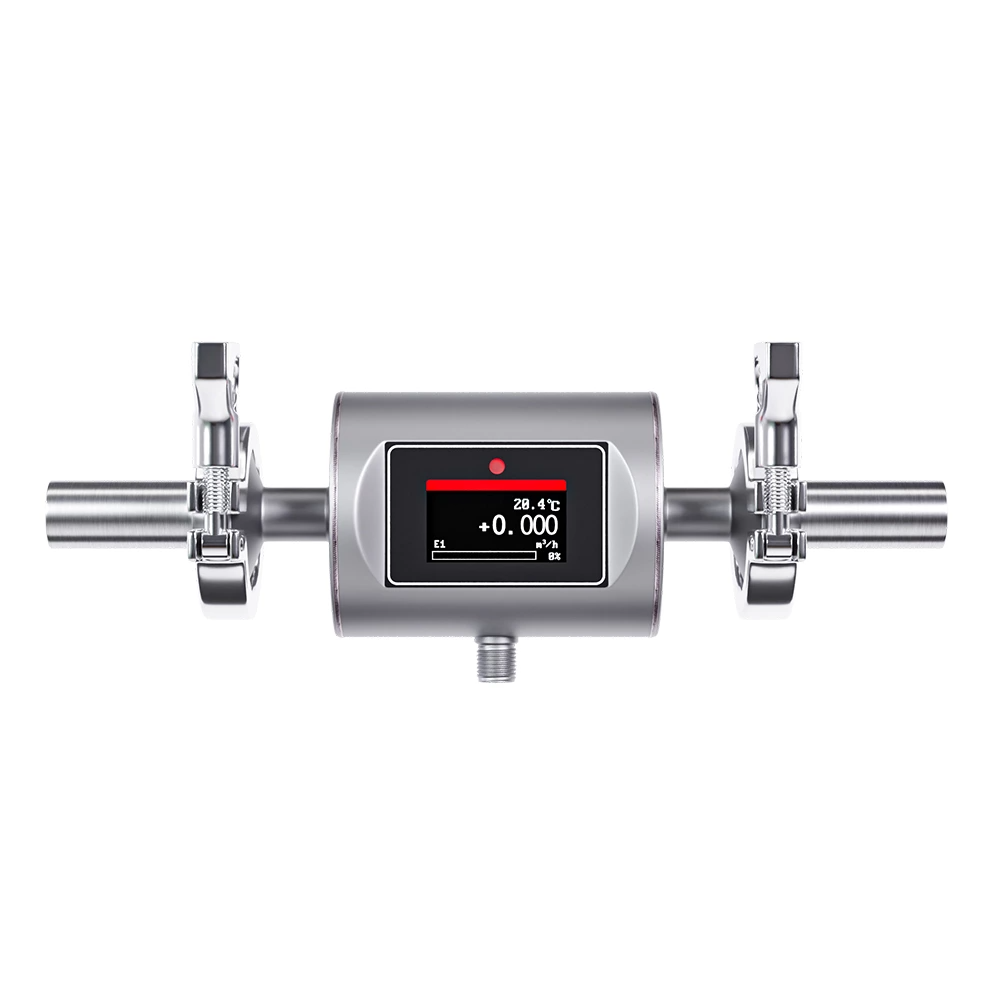

Supmea SUP-FMX240 Compact Electromagnetic Flow Meter
TF:
00308-HW-SUPMEA-008
| Product | Electromagnetic flowmeter |
| Model | FMX240 |
| Diameter nominal | DN6~DN65 |
| Accuracy | ±0.5% |
| Repeatability | ≦0.1% |
| Electrial conductivity | ≧2 μS/cm |
| Process pressure | -0.1MPa~6.3MPa |
| Medium temperature | 0…+80℃ |
| Power supply | (18~36)VDC |
| Communication output | RS485,MODBUS-RTU |
| Ingress protection | IP67 |
| Electrical interface | M12-4 core connector |
The compact electromagnetic flowmeter (also magmeter, mentioned as magmeter in the following content) integrates the traditional magmeter’s transmitter and sensor into a single unit. With its compact design and flexible installation, it features an infrared remote control for easy commissioning and mounting. Widely used across various industries, it measures the volumetric flow rate of conductive liquids with a conductivity greater than 2μS/cm. This inductive instrument is specifically designed for measuring the volumetric flow of conductive media.
