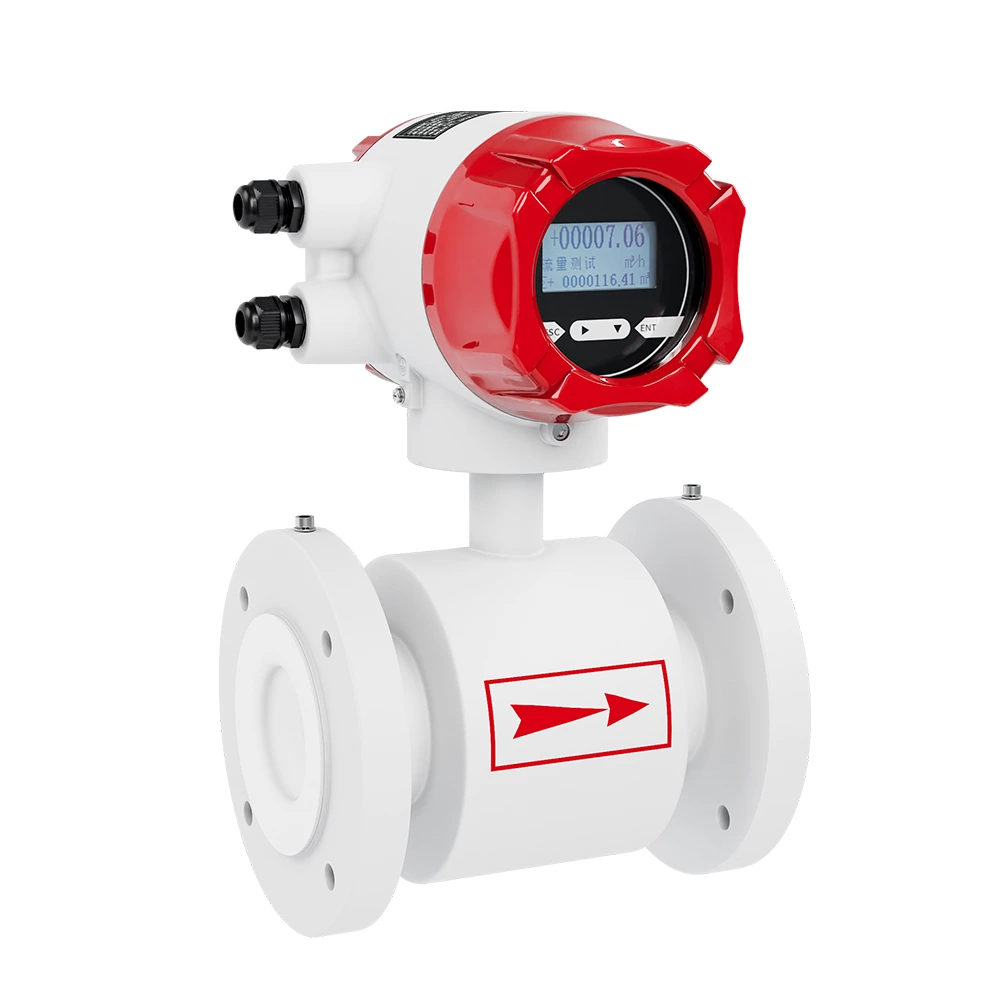

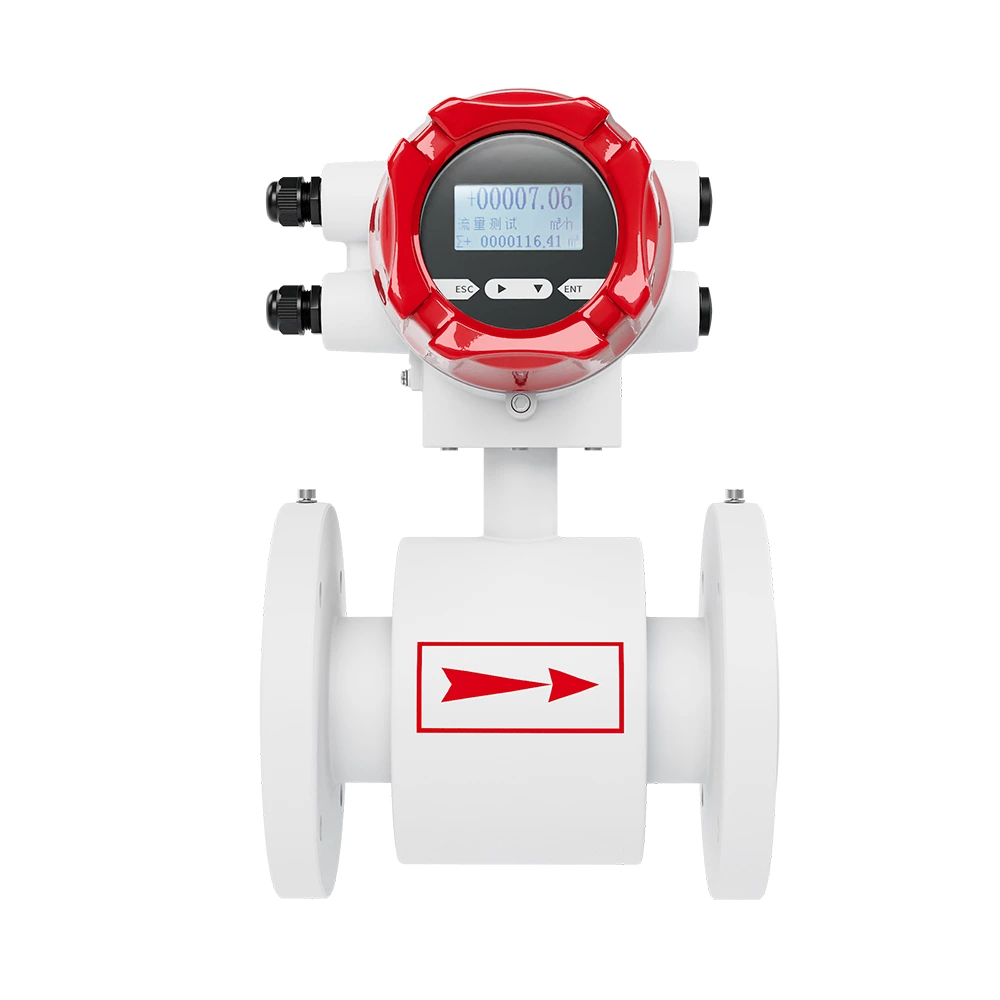

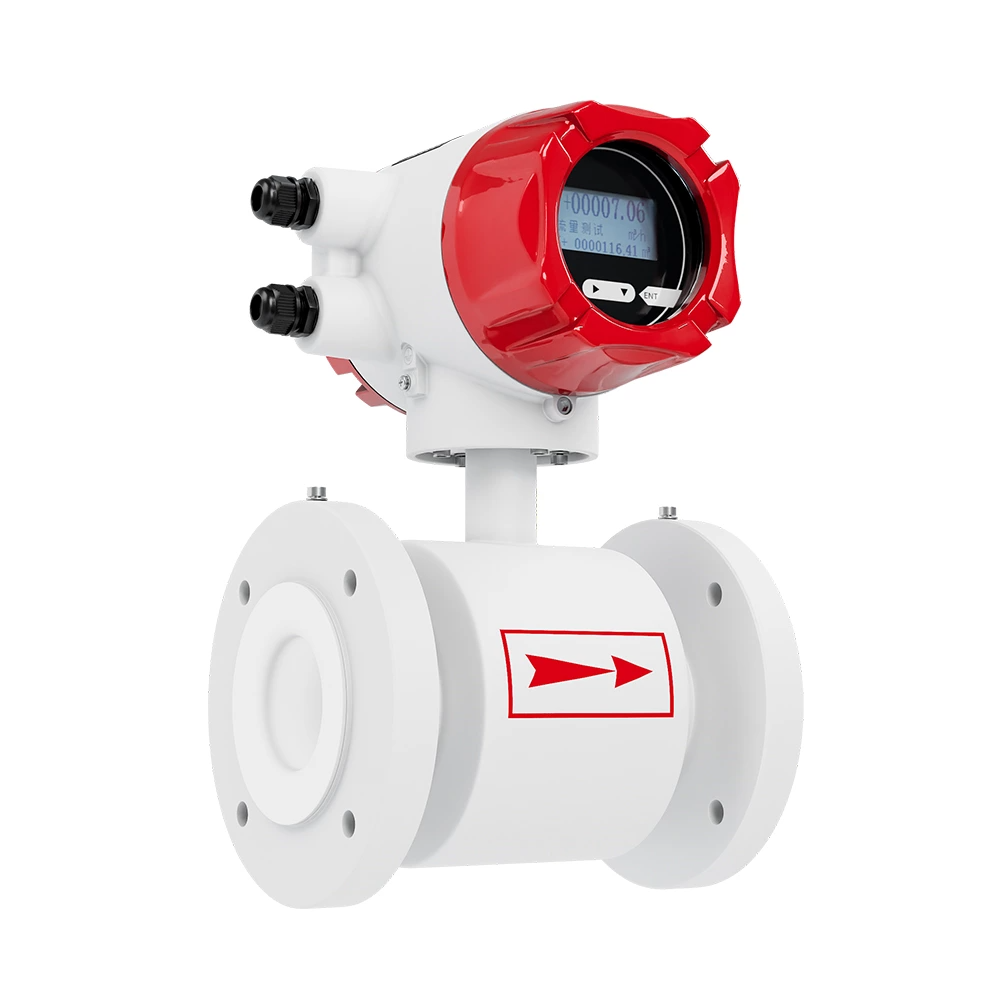

Supmea SUP-FMC400 Low Conductivity Electromagnetic flow meter
TF:
00305-HW-SUPMEA-005
Overview
The electromagnetic flowmeter is designed based on the Faraday electromagnetic induction principle and used to measure the instantaneous flow rate of conductive liquids in enclosed pipelines in flammable and explosive environments.
| Product | Electromagnetic flowmeter |
| Model | SUP-FMC400 |
| Diameter nominal | DN10~DN1000 |
| Nominal pressure | DN15 - DN250, PN ≤1.6MPa |
| DN300 - DN1000, PN ≤1.0MPa | |
| Accuracy | Measurement value ±0.5%(Flow velocity 0.5m/s~5m/s) |
| Repetitiveness | 0.16% |
| Liner material | CR,UR,PTFE(F4),FEP(F46),and PTFE(PTA) |
| Electrode material | 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt |
| Medium temperature | Polyurethane: -10…+60℃ ;PTFE/FEP: -10…+120℃;Chloroprene: -10…+70℃；PFA: -10…+120℃ |
| Power supply | AC：85V~264V，50Hz~60Hz; DC：18V~28V |
| Communications | RS485,MODBUS-RTU |
| Ingress protection | IP65 |
During on-site monitoring and display, standard current signals, pulse signals, and RS485 digital signals can be output for recording, adjustment, and control, achieving automatic detection and control. It can be widely used in industries such as tap water, chemical industry, coal, environmental protection, light textile, metallurgy, papermaking, etc.
