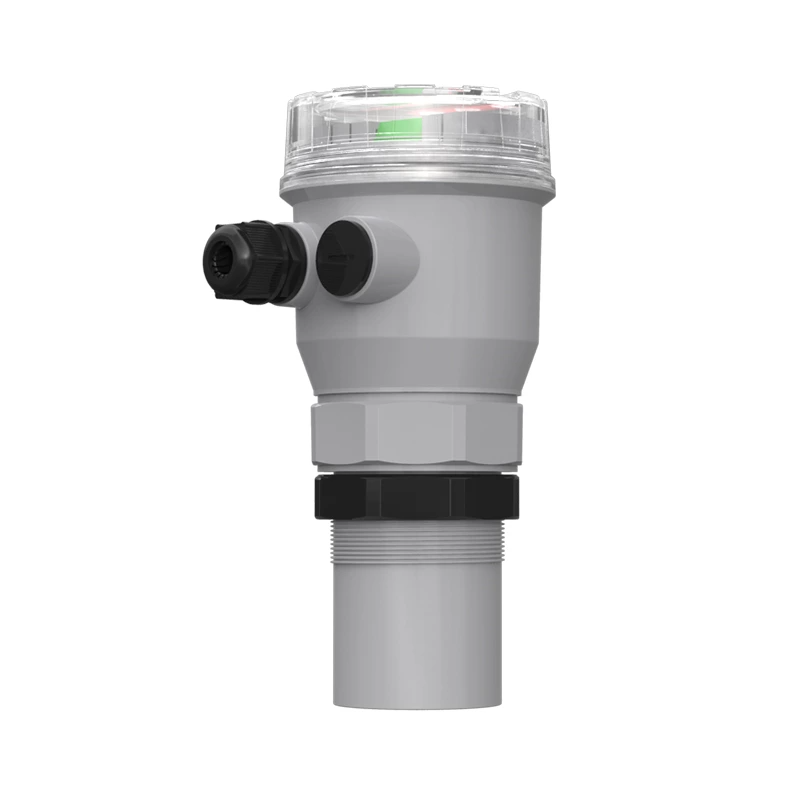

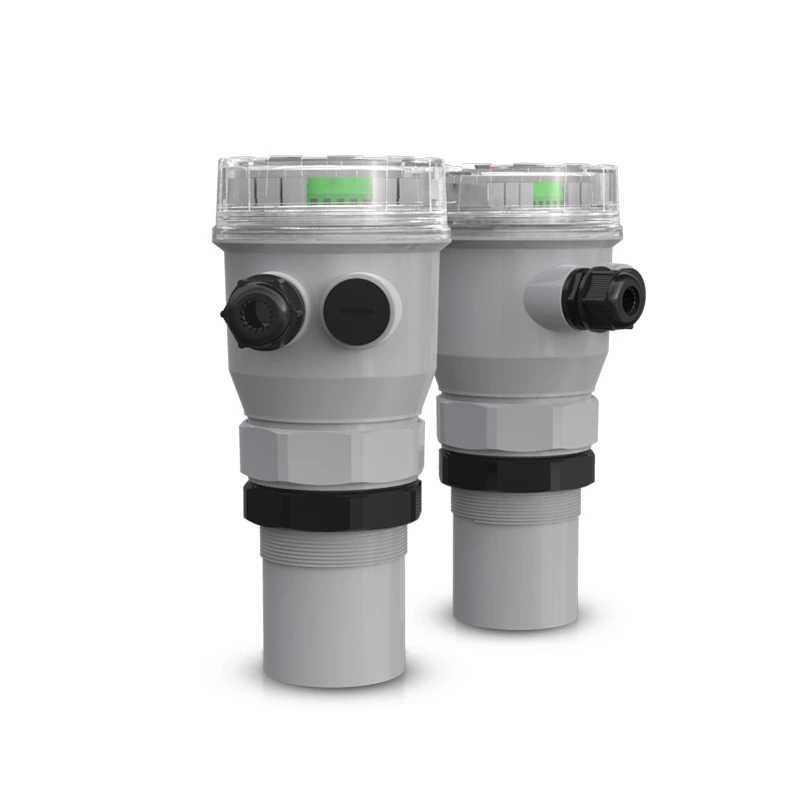

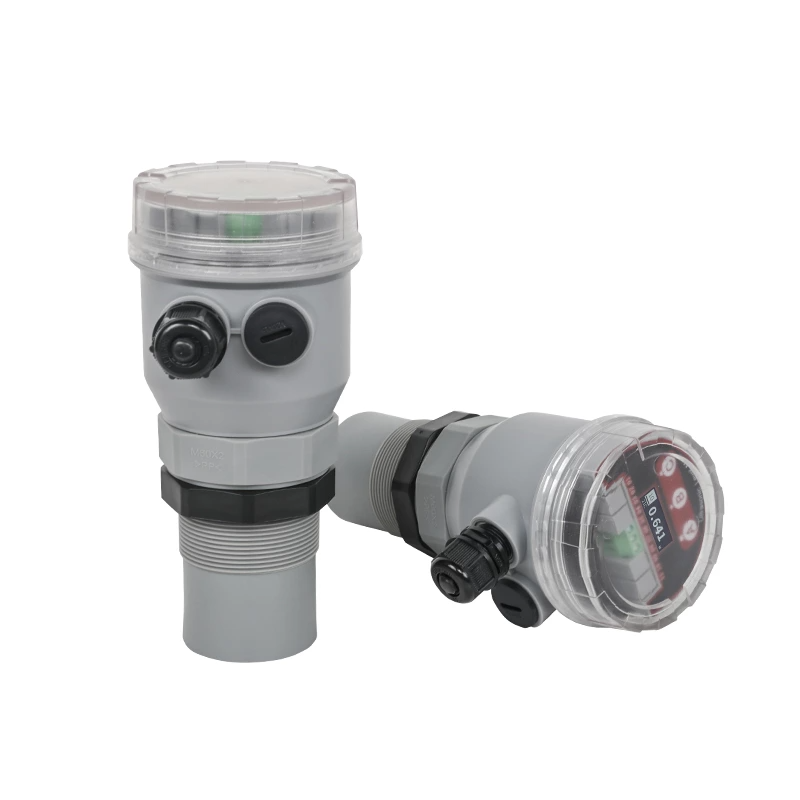

SUP-ZP Ultrasonic level transmitter
TF:
00341-HW-SUPMEA-041
Overview
SUP-ZP Ultrasonic level transmitter taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design.
| Product | Ultrasonic level transmitter |
| Model | SUP-ZP |
| Measure range | 5m, 10m,15m |
| Blind zone | 0.4m (range 5m) 0.5m (range 10m) 0.6m (range 15m) |
| Accuracy | 0.3%F.S |
| Display | OLED |
| Output (optional) | 4-20mA RL＜600Ω (standard) |
| RS485 | |
| HART(two-wire) | |
| (1～5)V \ (1～10)10V | |
| 2 relays (AC: 5A 250V DC: 10A 24V) | |
| Material | ABS, PP |
| Electrical interface | M20X1.5 |
| Power supply | 12-24VDC, 18-28VDC (two-wire), 220VAC |
| Power consumption | <1.5W |
| Ingress protection | IP65/IP68 (optional) |
It has perfect level monitoring, data transmission and man-machine communication. The master chip is imported technical m single chip with relevant application specific ICs such as digital temperature compensation. It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication.
