| Product | TDS meter, EC controller |
| Model | SUP-TDS210-C |
| Measure range | 0.01 electrode: 0-20.00us/cm |
| 0.1 electrode: 0.2-200.0us/cm | |
| 1.0 electrode: 2-2000us/cm | |
| 10.0 electrode: 0.02-20ms/cm | |
| Accuracy | ±2%FS |
| Measuring medium | Liquid |
| Temp compensation | NTC10K/PT1000 Manual/ Auto temperature compensation |
| Temperature Range | -10-130℃ |
| Communication | RS485, Modbus-RTU |
| Signal output | 4-20mA, maximum loop 750Ω, 0.2%FS |
| Power supply | AC220V±10%, 50Hz/60Hz DC24V±20%, ≥6W |
| Relay output | 250VAC, 3A |
| Relative humidity | (10~85)%RH |
| Operation temperature | 0~60℃ |
| Operation condition | Temperature: 15~65℃ Relative humidity: (5~95)%RH |

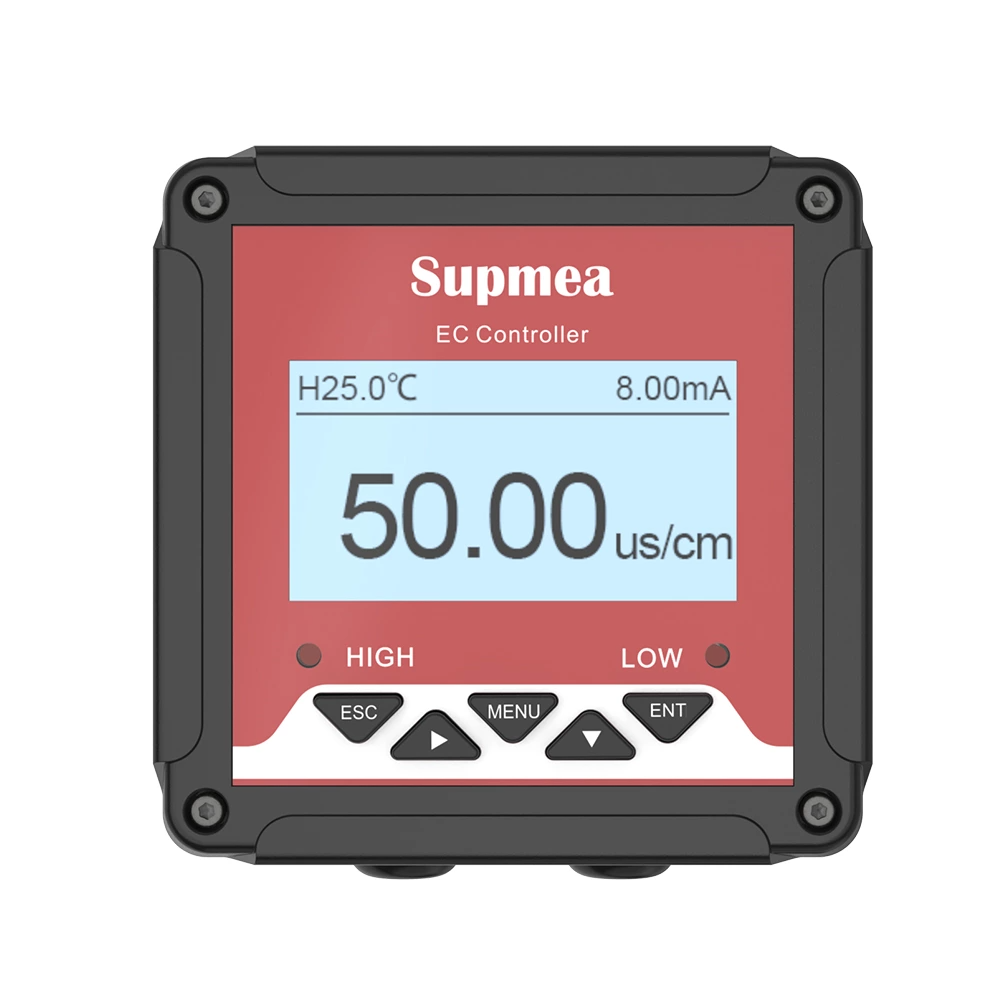

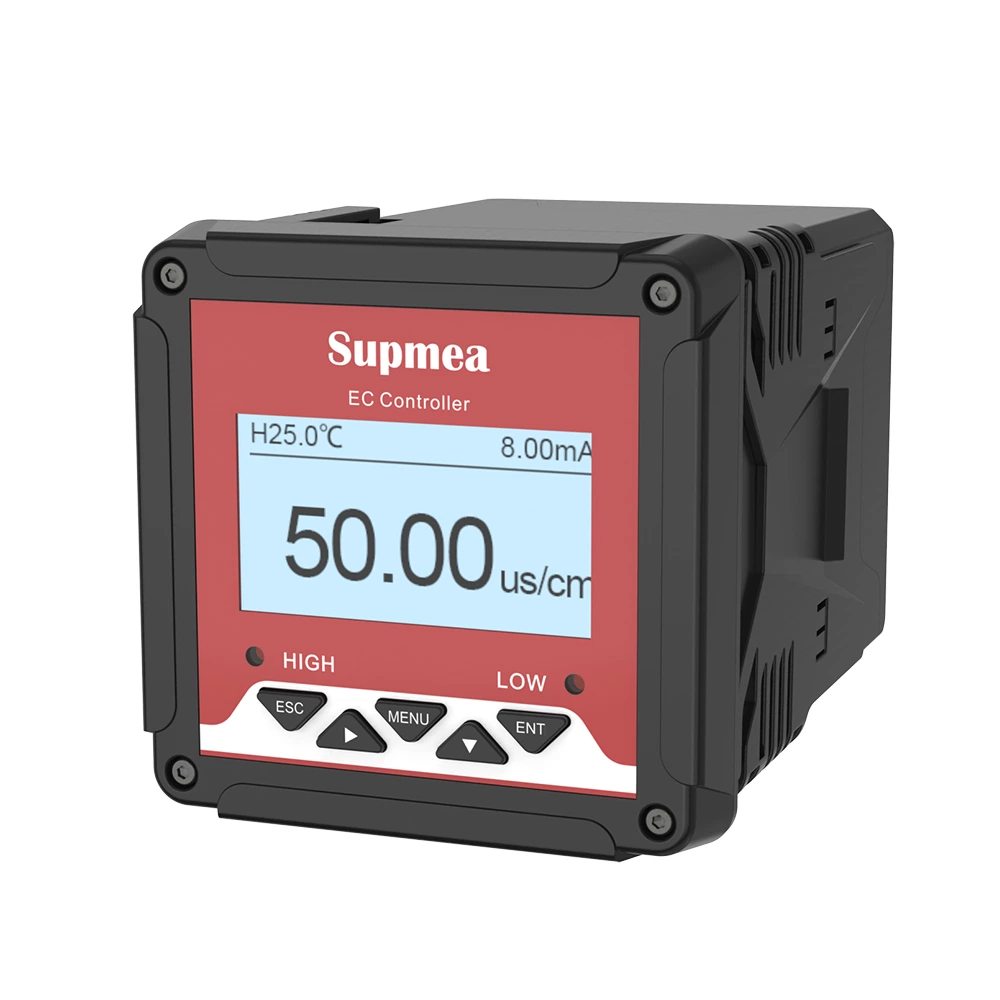

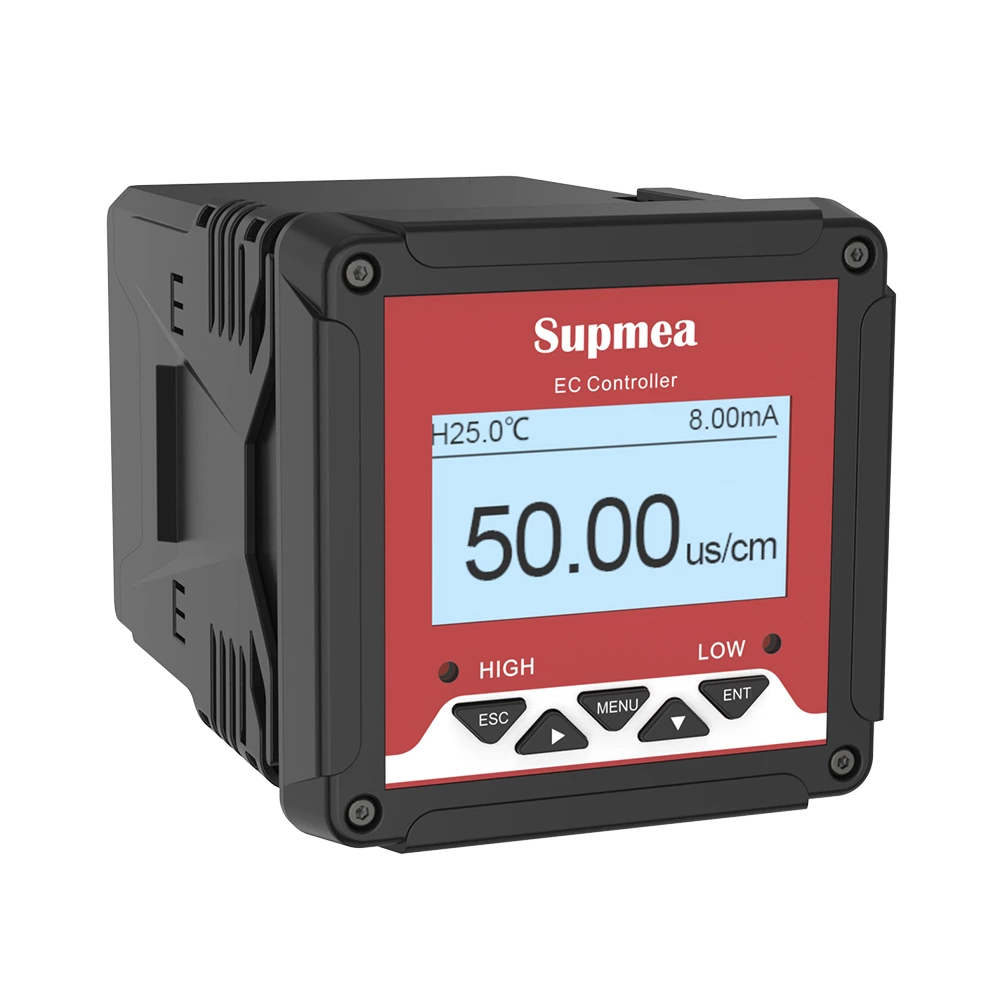

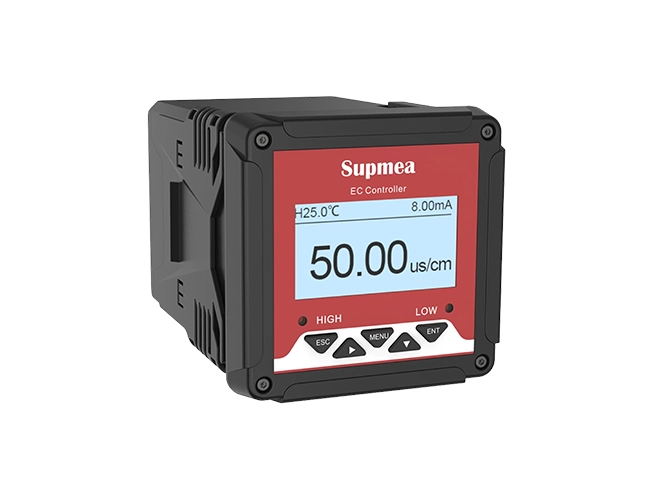

SUP-TDS210-C Conductivity meter EC controller, an intelligent Online chemical analyzer, is widely applied for continuous monitoring and measurement of EC value or TDS value or ER value and temperature in the solution in the industry of thermal power, chemical fertilizer.
