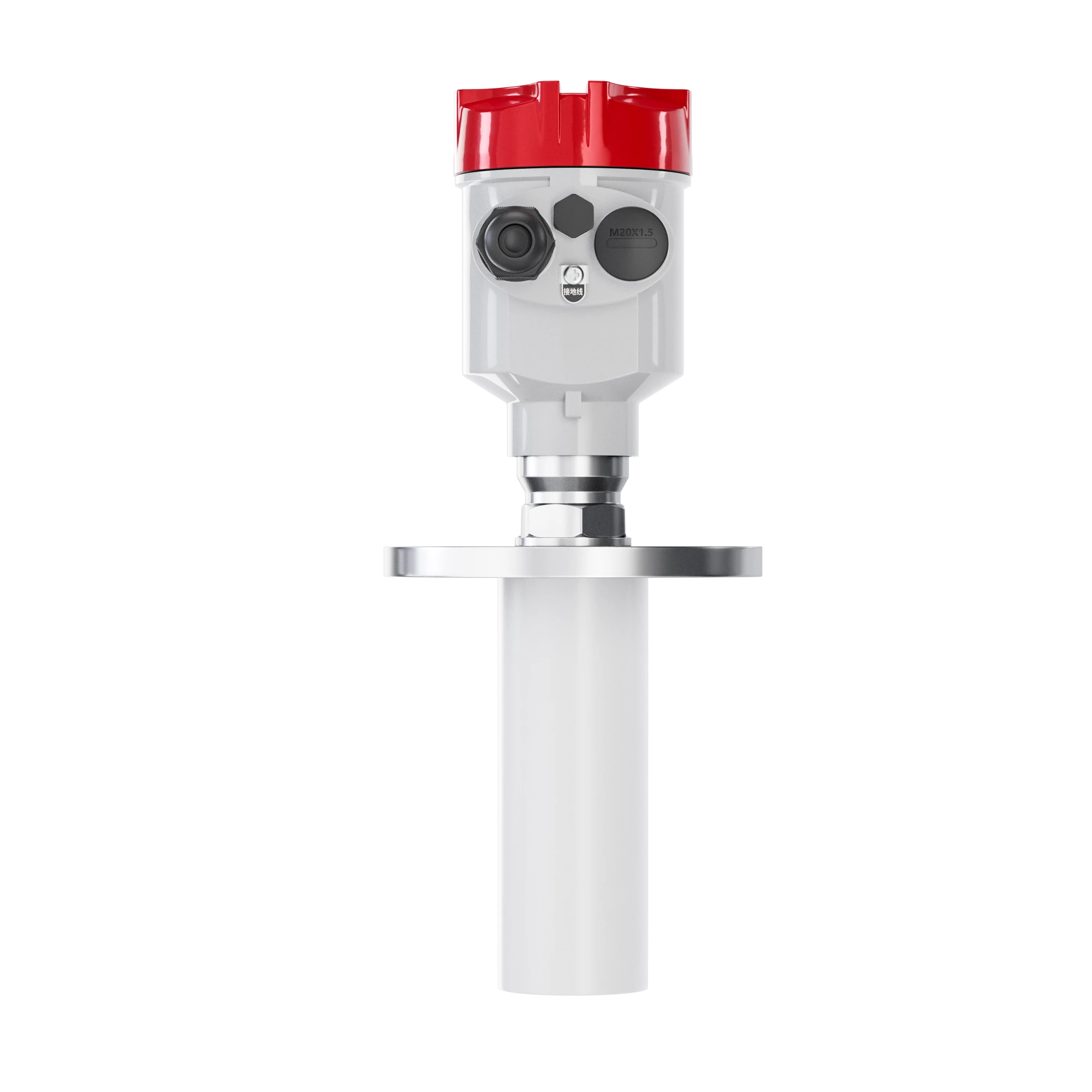

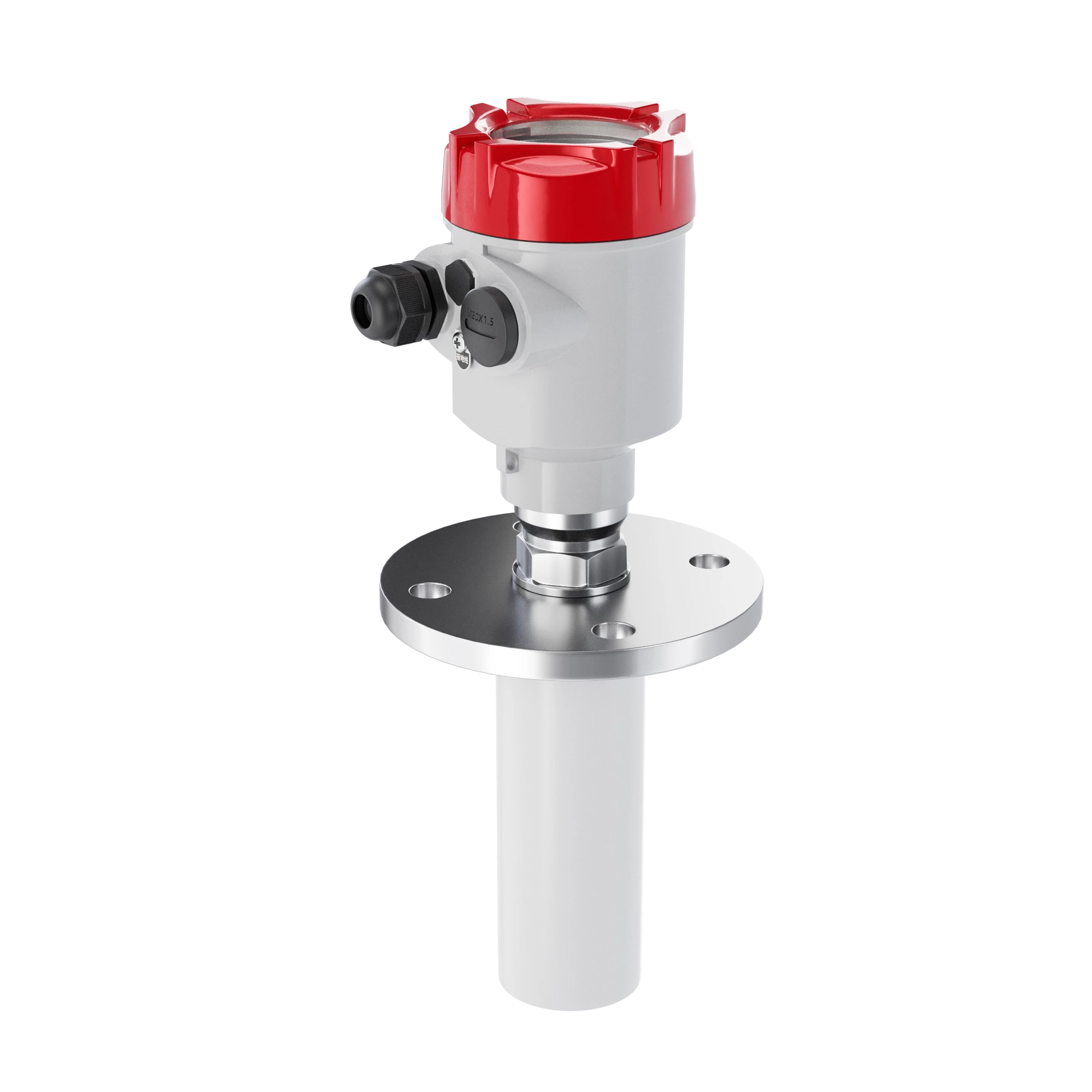

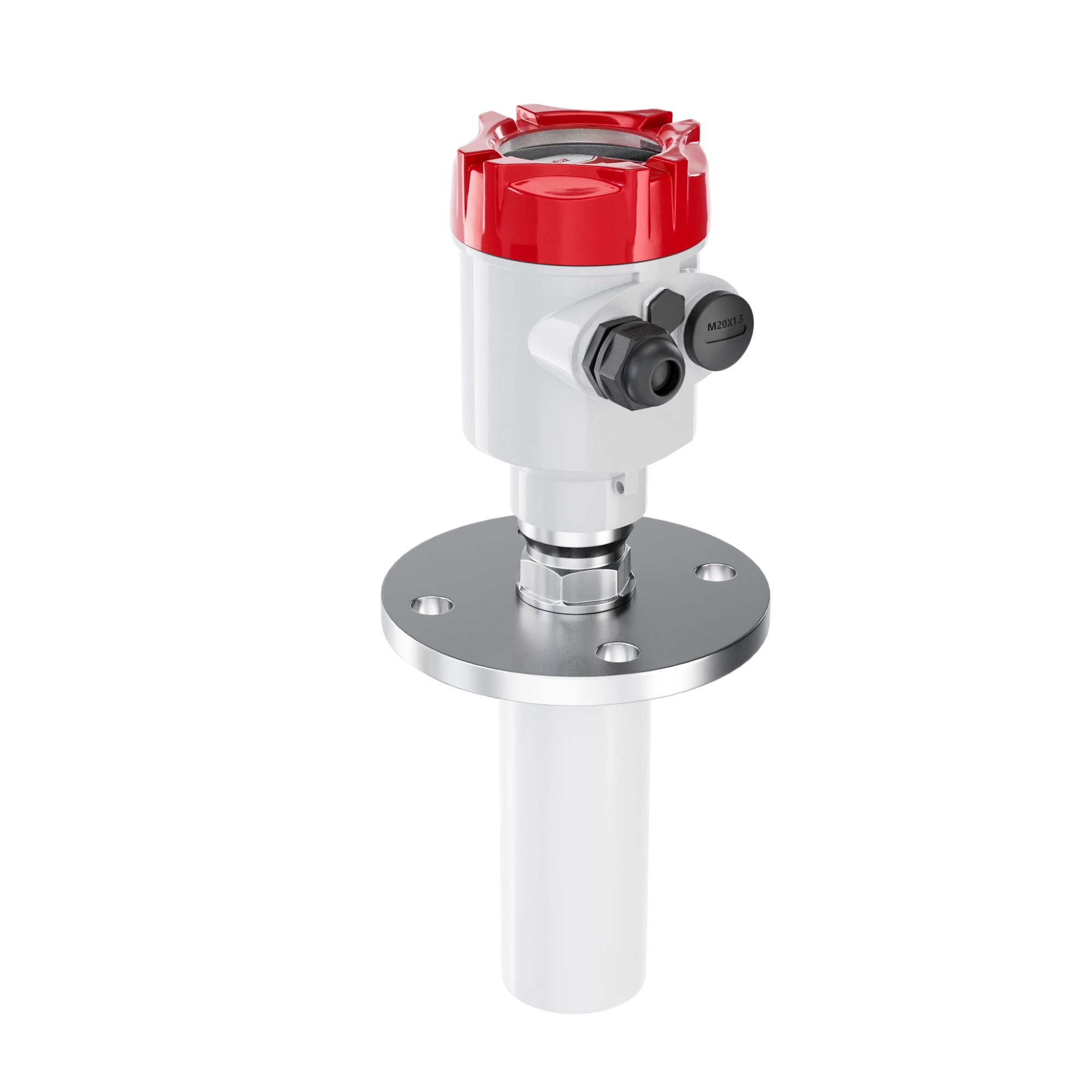

SUP-RD902T 26GHz Radar level meter
-
NG # 00345-HW-SUPMEA-045
Manufactured by:
Specification
Product Radar level meter Model SUP-RD902T Measure range 0-20 meters Application Temperature resistant, pressure resistant, slightly corrosive liquid Process Connection Thread, Flange Medium Temperature -40℃~130℃(Standard type), -40℃~230℃(High temp type) Process Pressure -0.1~2.0MPa Accuracy ± 3mm Protection Grade IP67 Frequency Range 26GHz Signal Output 4-20mA RS485/Modbus Power supply DC(6~24V)/ Four-wire
DC 24V / Two-wire
Description
SUP-RD902T Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
