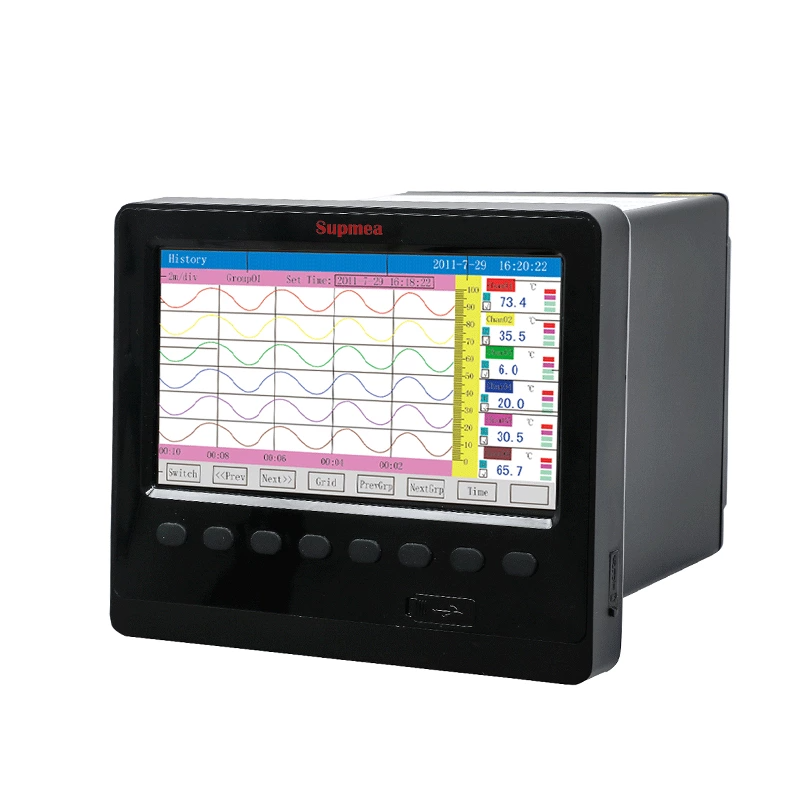

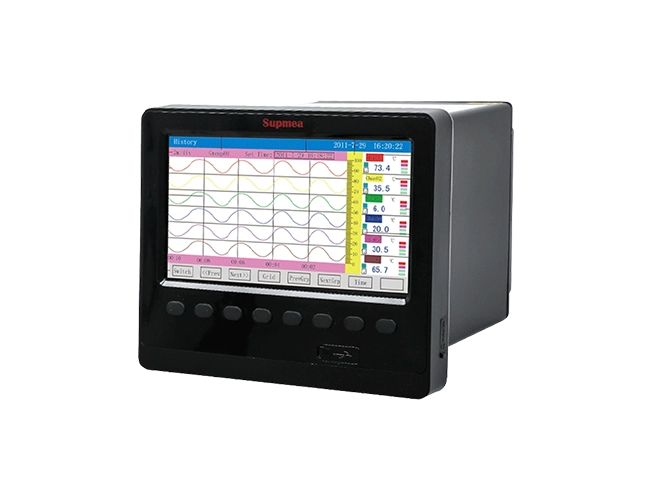

SUP-R6000C Paperless recorder up to 48 channels universal input
TF:
00355-HW-SUPMEA-055
| Product | Paperless recorder |
| Model | SUP-R6000C |
| Display | 7 inch TFT display screen |
| Input | Up to 48 channels of universal input |
| Relay output | 1A/250VAC, Max 18 channels |
| Communication | RS485, Modbus-RTU |
| Internal memory | 64 Mbytes Flash |
| Power supply | AC85～264V，50/60Hz; DC12～36V |
| Outer dimensions | 185*154*176mm |
| DIN panel cutout | 138*138mm |
SUP-R6000C Color paperless recorder with fixed point/program segment adopts the control algorithm of differential in advance. The proportional band P, integral time I and derivative time D are mutually independent of each another without affecting each other when being adjusted. The system overshoot can be controlled with strong anti-jamming capability.
