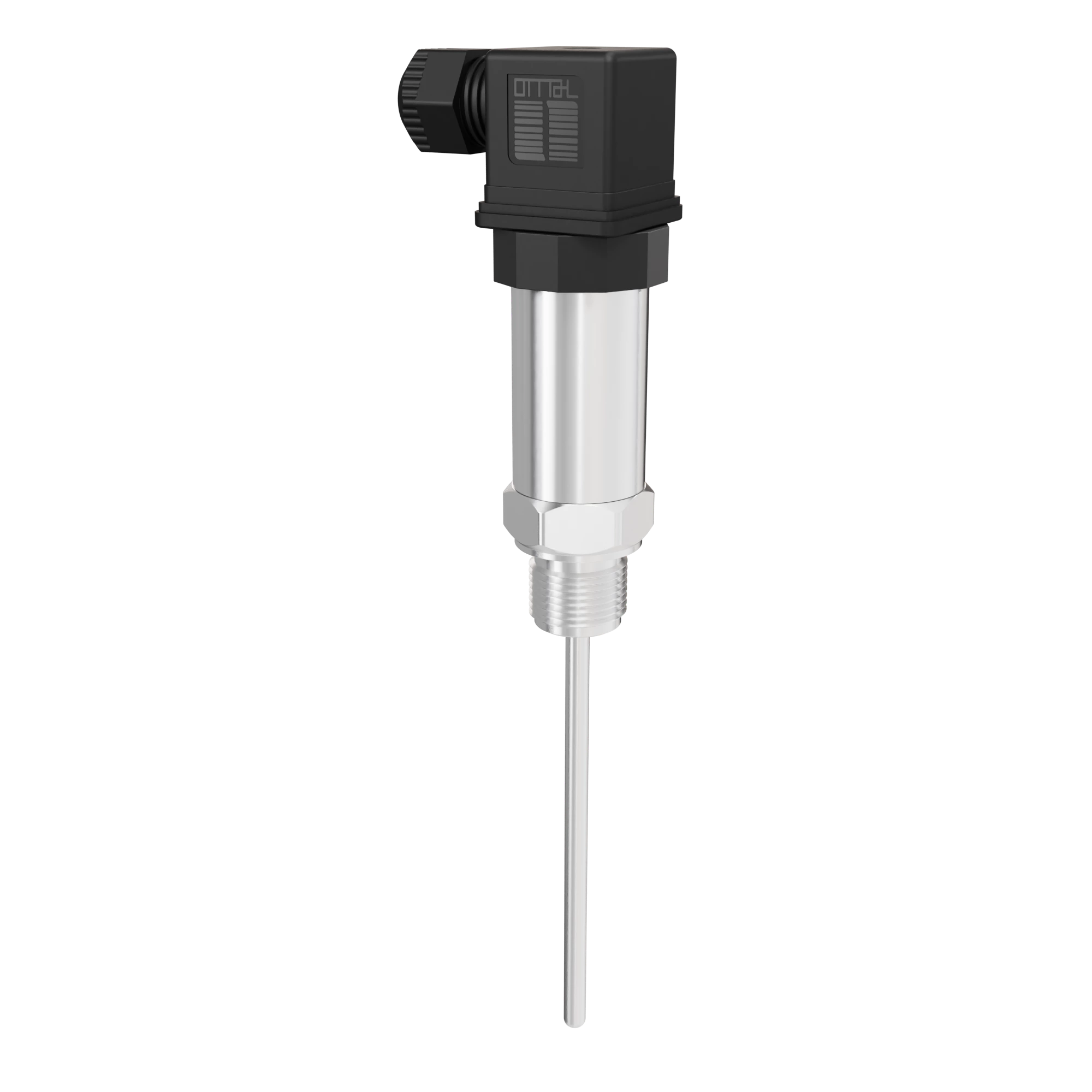

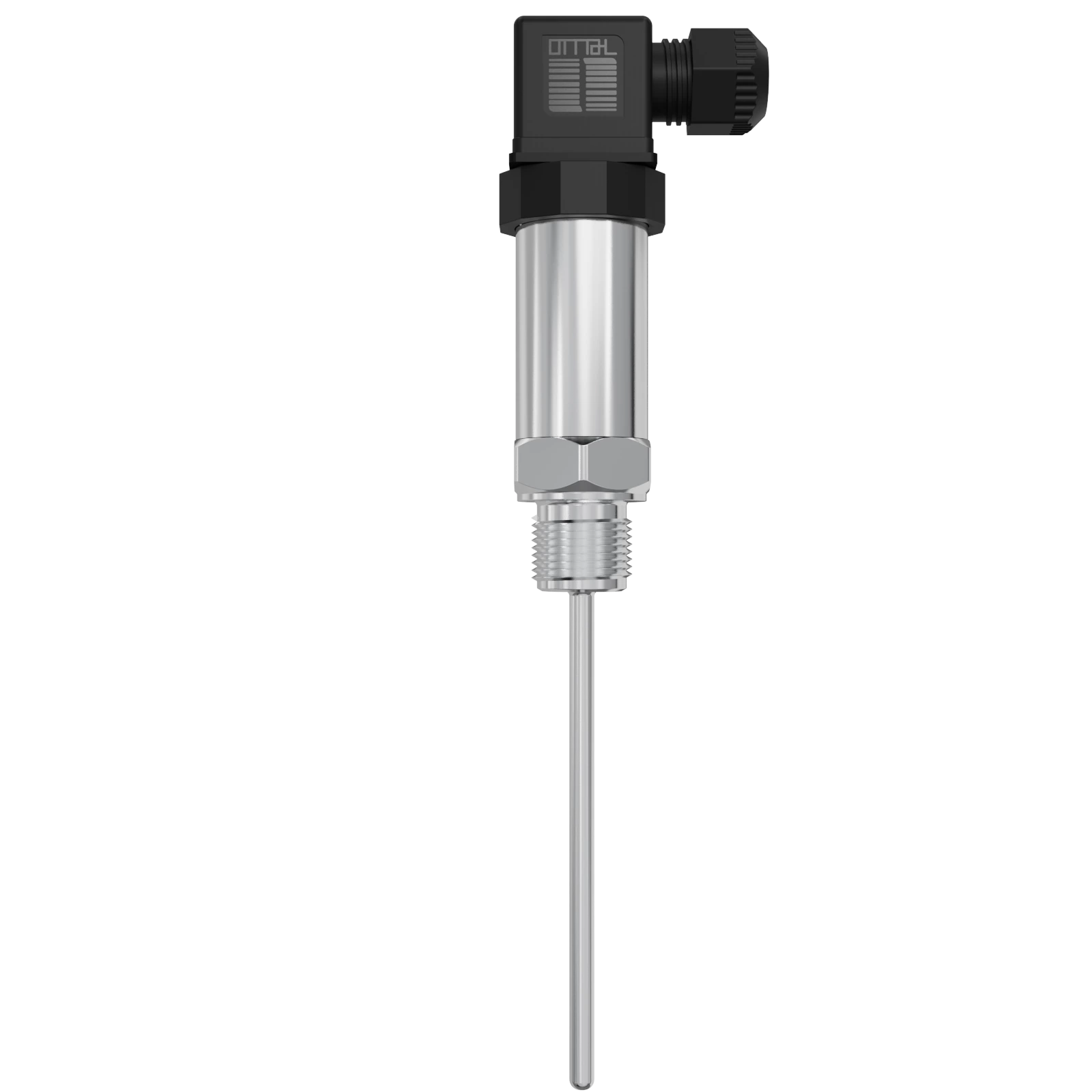

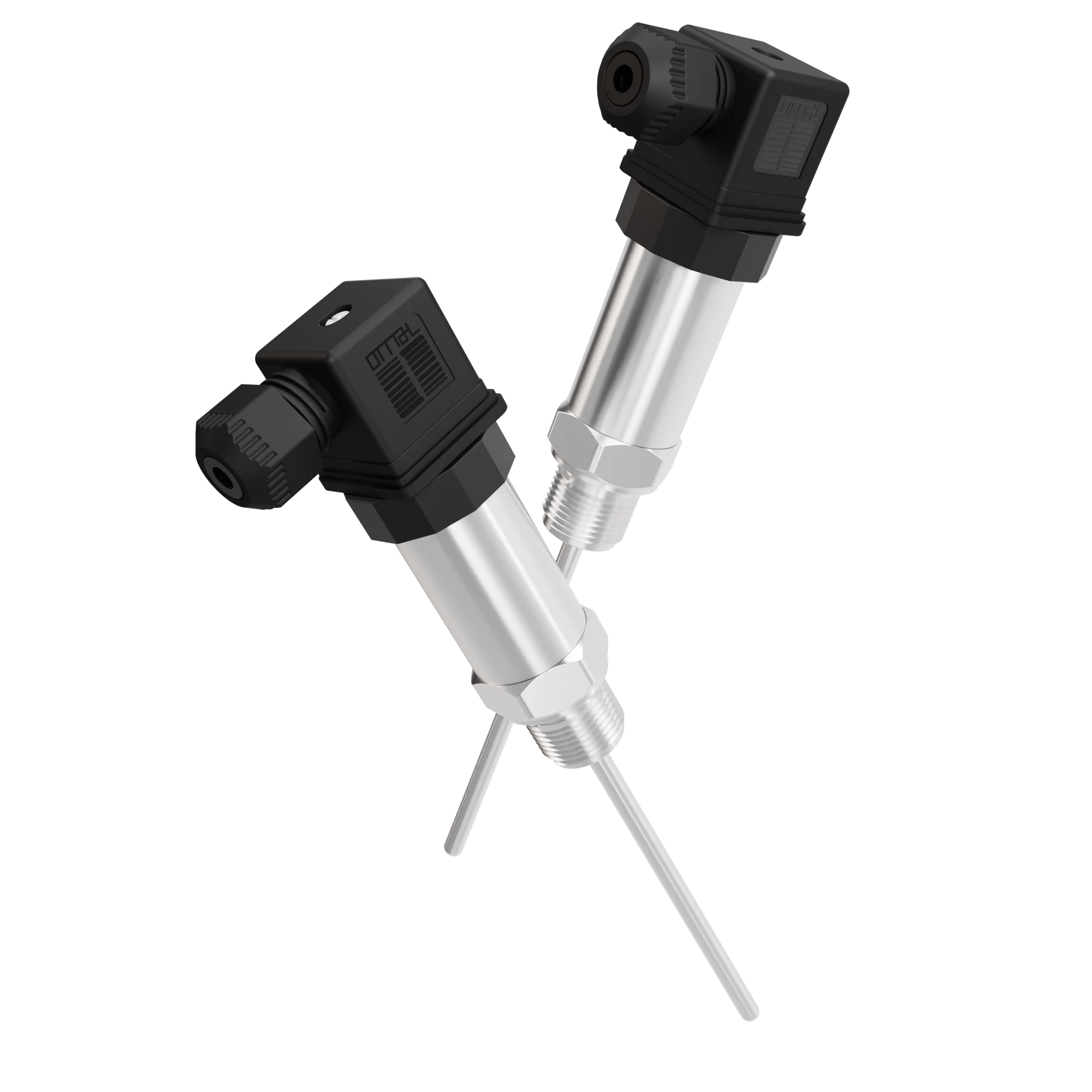

SUP-P202 Industrial Temperature Sensors
TF:
00369-HW-SUPMEA-069
Overview
Industrial temperature sensors are crucial components in many industrial processes.
| Product name | Industrial Temperature Sensors |
| Model | SUP-P202 |
| Power supply | (4~20) mA Output: (9~30) V |
| RS485 output | (5~30)V |
| Output | (4~20) mA, RS485 |
| Accuracy | 0.5 % |
| Measuring range | (-50-200) ā |
| Ambient temperature | (-40~85) ā |
| Storage temperature | (-40~85) ā |
| Insulation resistance | 20MĪ©/250VDC |
| Dielectric strength | 500V |
| Ingress protection | IP65 |
| Load resistance | (U-9V)/0.02A, U: supply voltage |
These sensors are designed to measure temperature in harsh and challenging environments, where traditional temperature sensors may not be able to function. They are used in a wide range of industries, including oil and gas, chemical, automotive, and aerospace.
