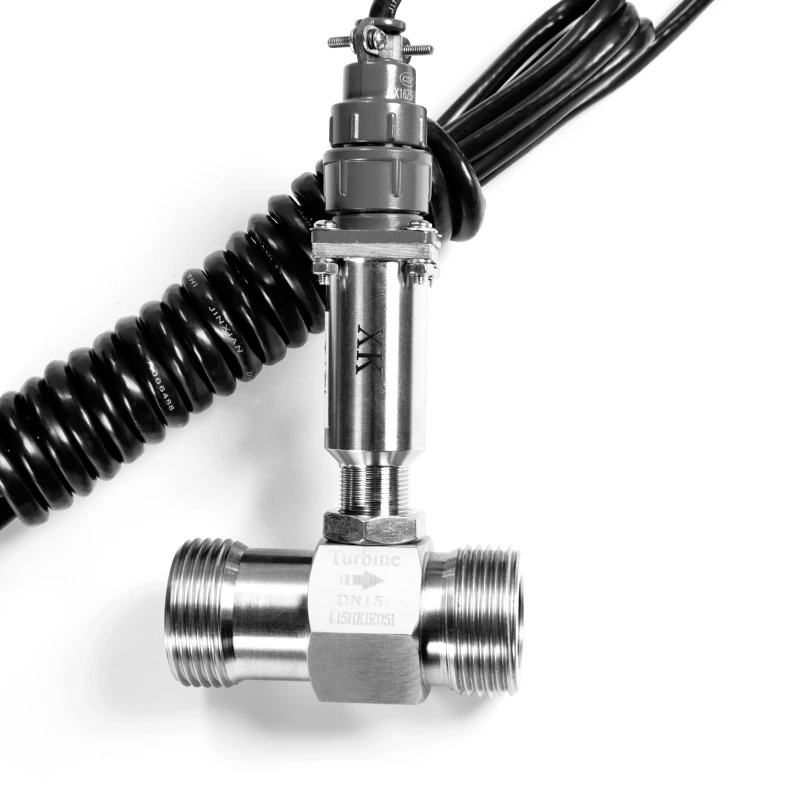

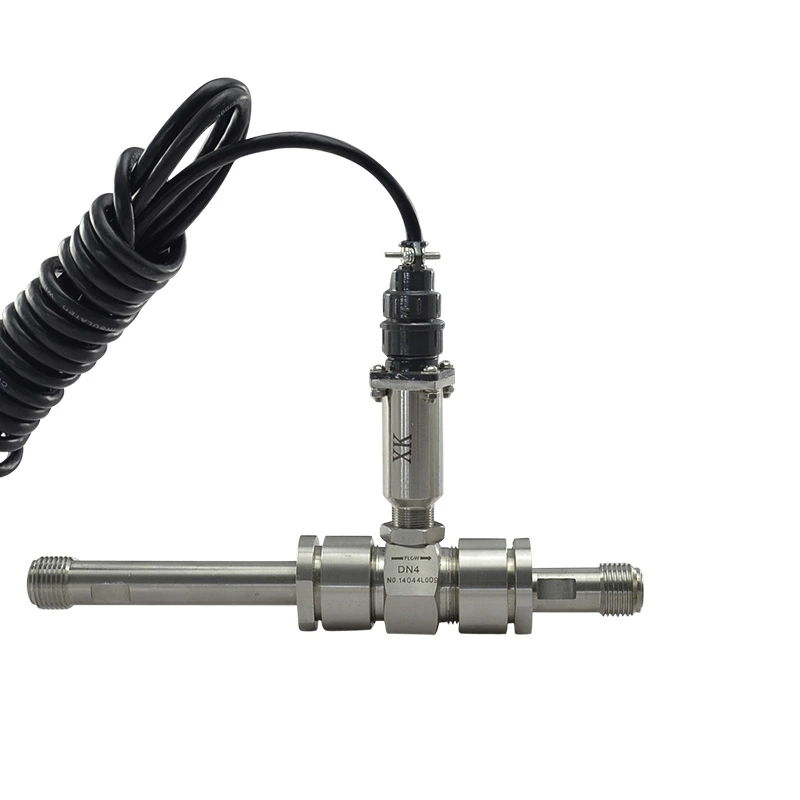

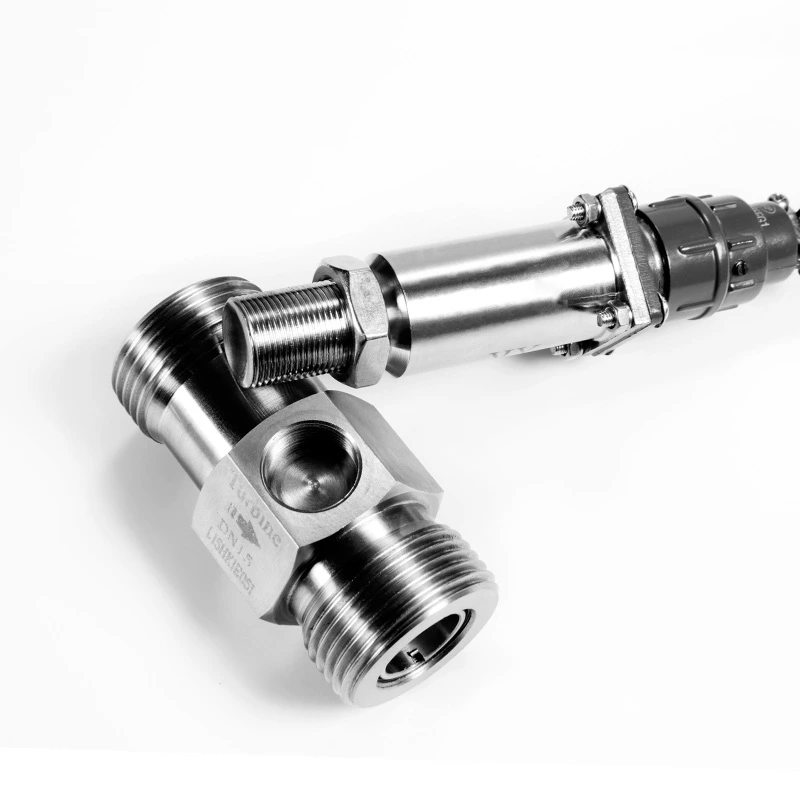

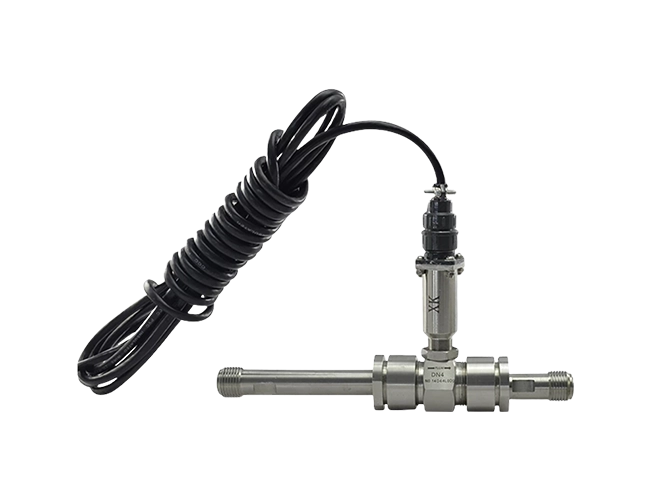

SUP-LWGY Turbine flow sensor thread connection
TF:
00313-HW-SUPMEA-013
| Product | Turbine flow sensor |
| Model | SUP-LWGY |
| Diameter Nominal | DN4~DN100 |
| Nominal Pressure | 86kPa～106kPa |
| Accuracy | 0.5%R, 1.0%R |
| Medium Temperature | -20℃～＋120℃ |
| Power Supply | 3.6V lithium battery; 220 VAC; 24VDC |
| Output Signal | Pulse, 4-20mA, Modbus, Hart |
| Ingress protection | IP65 |
SUP-LWGY series liquid turbine flow sensor is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe.
