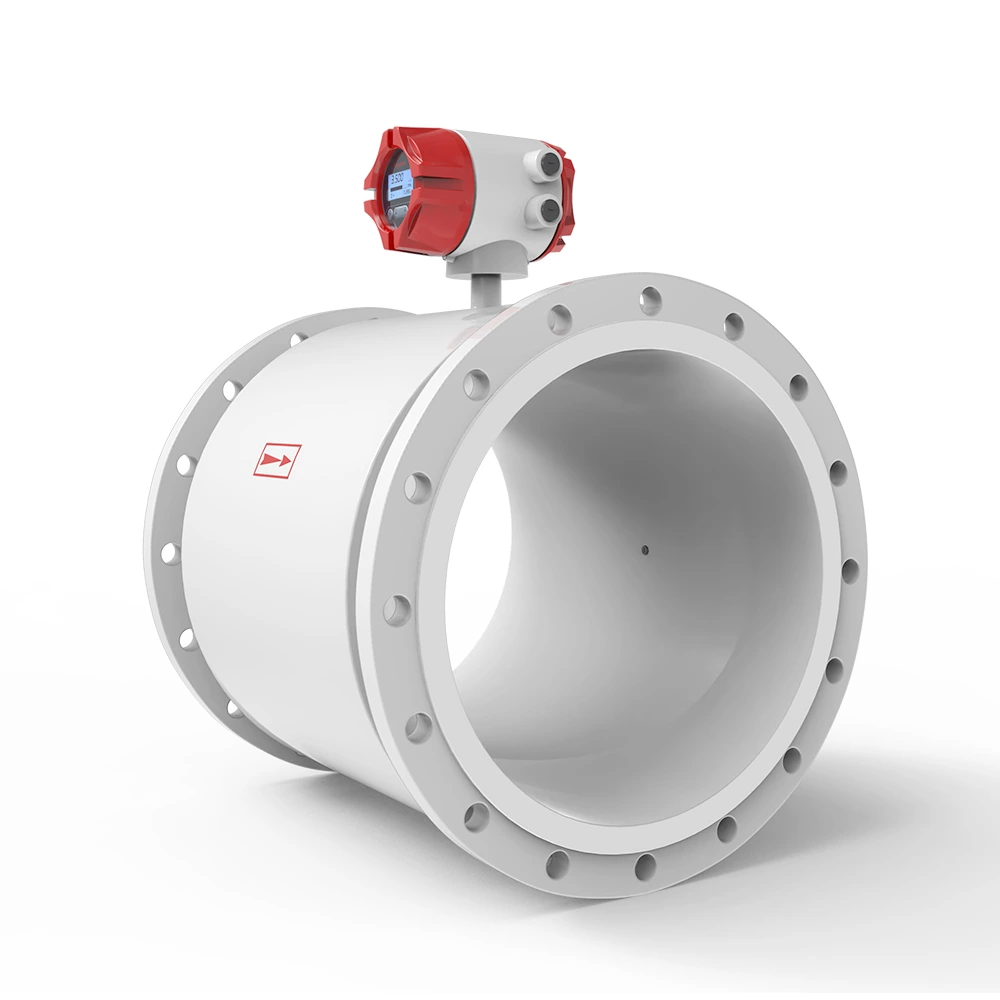

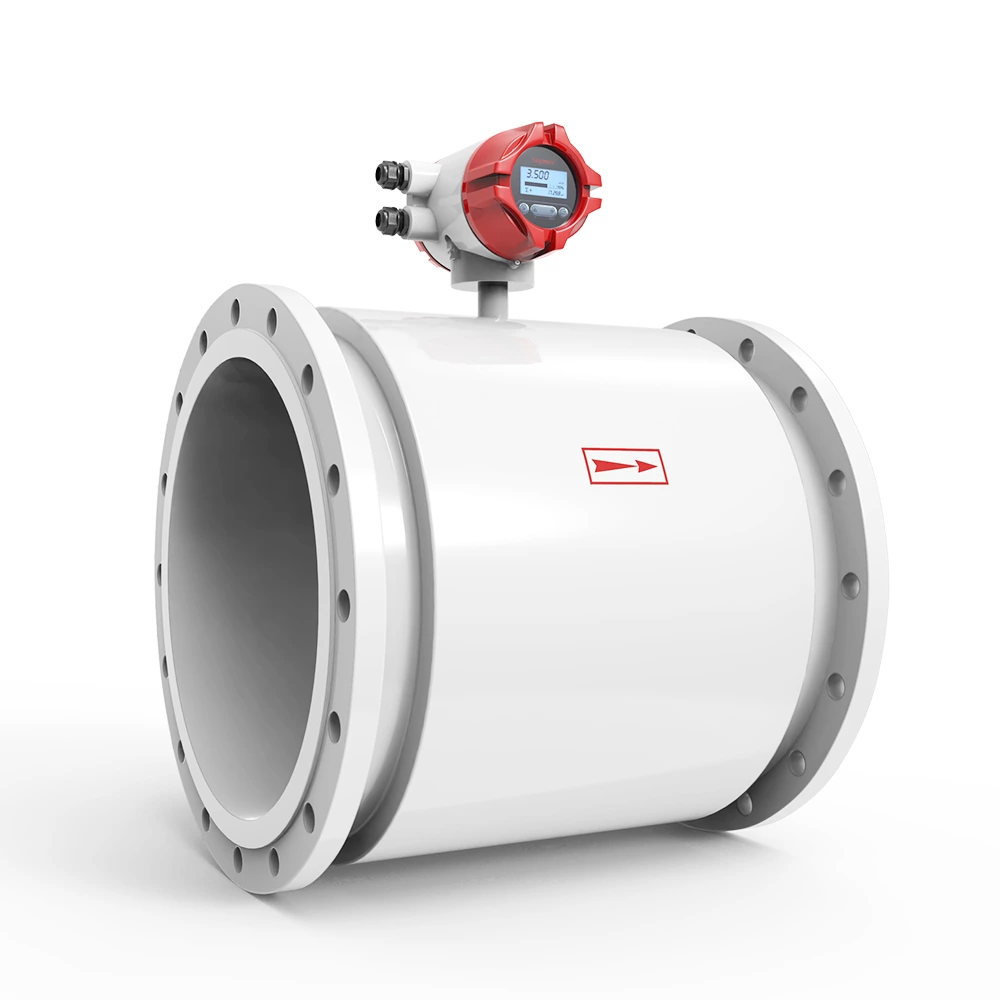

SUP-LDG Carbon steel body electromagnetic flow meter
TF:
00302-HW-SUPMEA-002
Overview
SUP-LDG Electromagnetic meters are a leading choice to deliver the performance and precision your applications require.
| Product | Electromagnetic flow meter |
| Model | SUP-LDG |
| Diameter nominal | DN15~DN1200 |
| Nominal pressure | DN15 - DN250, PN ≤1.6MPa |
| DN300 - DN1000, PN ≤1.0MPa | |
| DN1200, PN ≤0.6 MPa | |
| Higher pressure can be customized | |
| Accuracy | ±0.5% F.S. (Flow speed > 1m/s); ±0.5% F.S.±2mm/s (Flow speed <1m/s) |
| Repetitiveness | 0.16% |
| Liner material | Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA |
| Electrode material | 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt |
| Medium temperature | Neoprene: -10…+60℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+120℃ |
| Power supply | 85-245VAC，50/60Hz, 22VDC-26VDC |
| Structure type | Compact type, Remote type |
| Ingress protection | IP65, IP68(remote type only) |
| Product standard | JB/T 9248-2015 |
These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer
