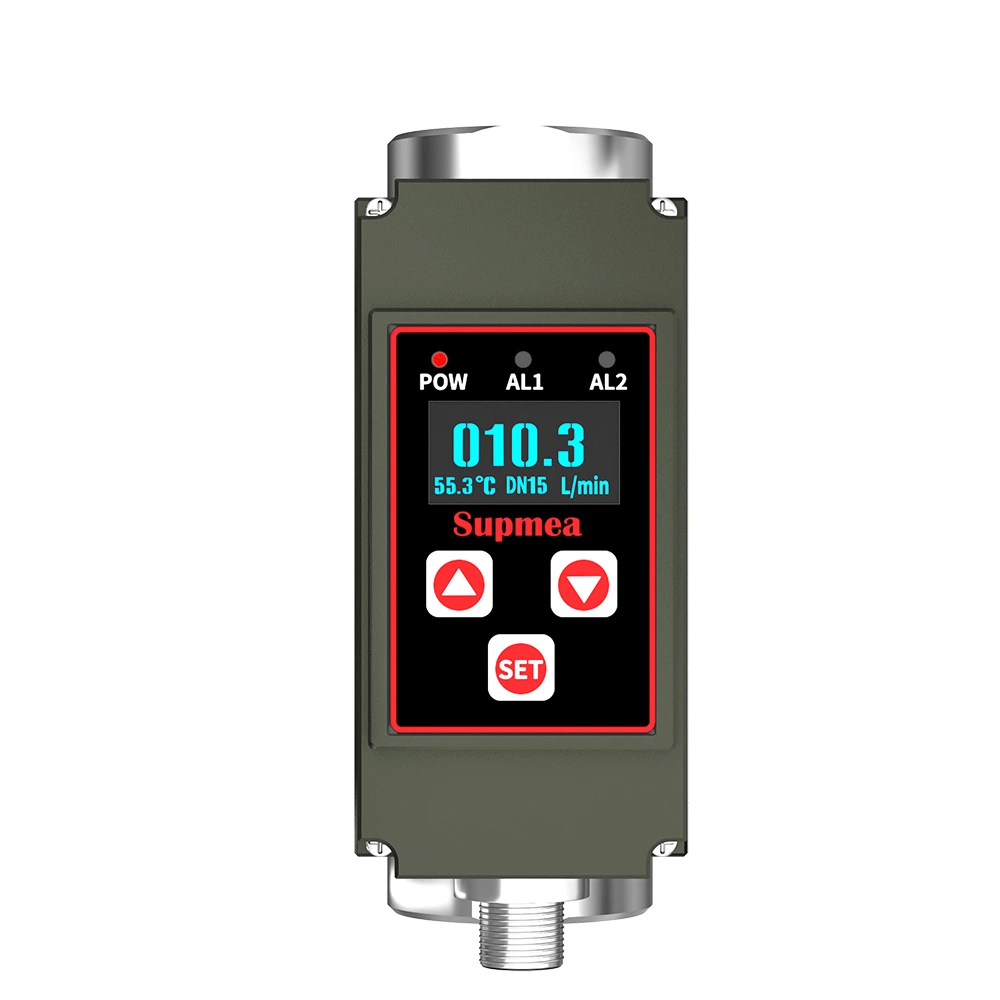

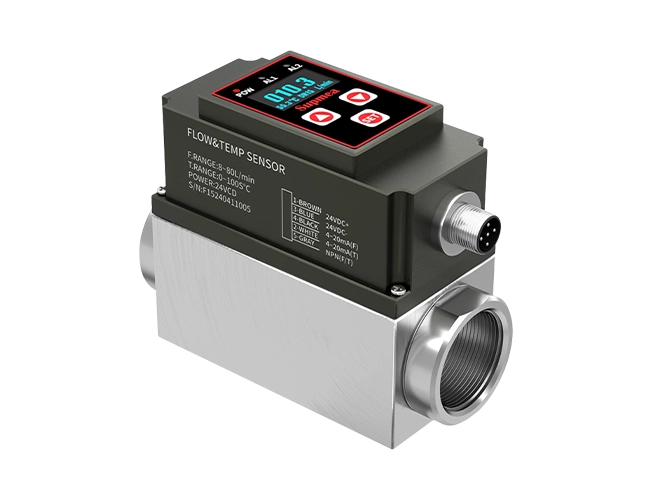

| Product | Micro vortex flow meter |
| Model | SUP-FVM200 |
| Measured variable | Flow rate,temperature |
| Nominal diameter & flow range | DN8：1~15 L/min |
| DN10：3~30 L/min | |
| DN15：5~50 L/min | |
| Communication output | RS485,MODBUS-RTU |
| Temperature range | 0...90℃ |
| Power supply | 24 VDC |
| Accuracy | Flow：± 3%；Temperature：± 1℃ |
| Medium type | Liquid(Water or water-soluble liquids such as ethylene glycol) |
| Process pressure | MAX 1.2MPa (at 40℃) |
| Protection level | IP65 |
Micro vortex flowmeter simple structure, high accuracy, easy to install and maintain, can be used for real-time monitoring of the liquid flow and temperature in the pipeline, support for flow and temperature (4 ~ 20) mA signal or 485 communication, alarm switch output, and the use of OLED real-time display of the fluid flow and temperature, to achieve the pipeline in the flow of the temperature of the one-monitoring function. This product is widely used in petrochemical, electric power, gold, steel mills, paper, food processing, water treatment, battery factory and other industries.
