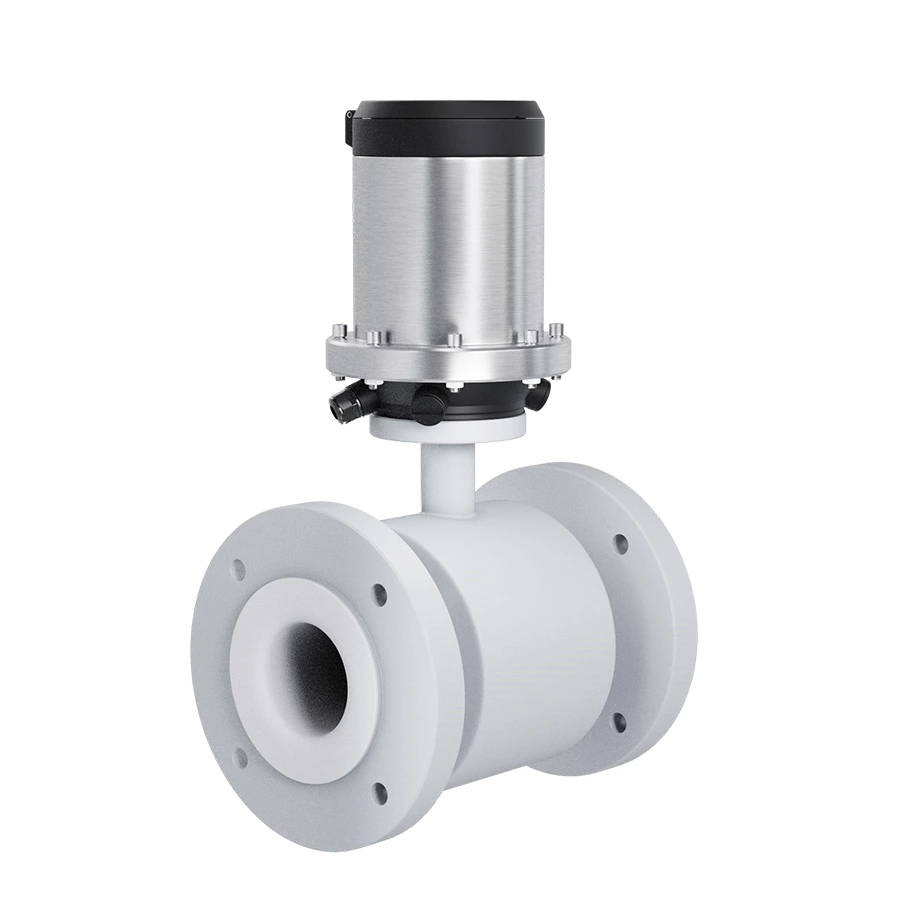

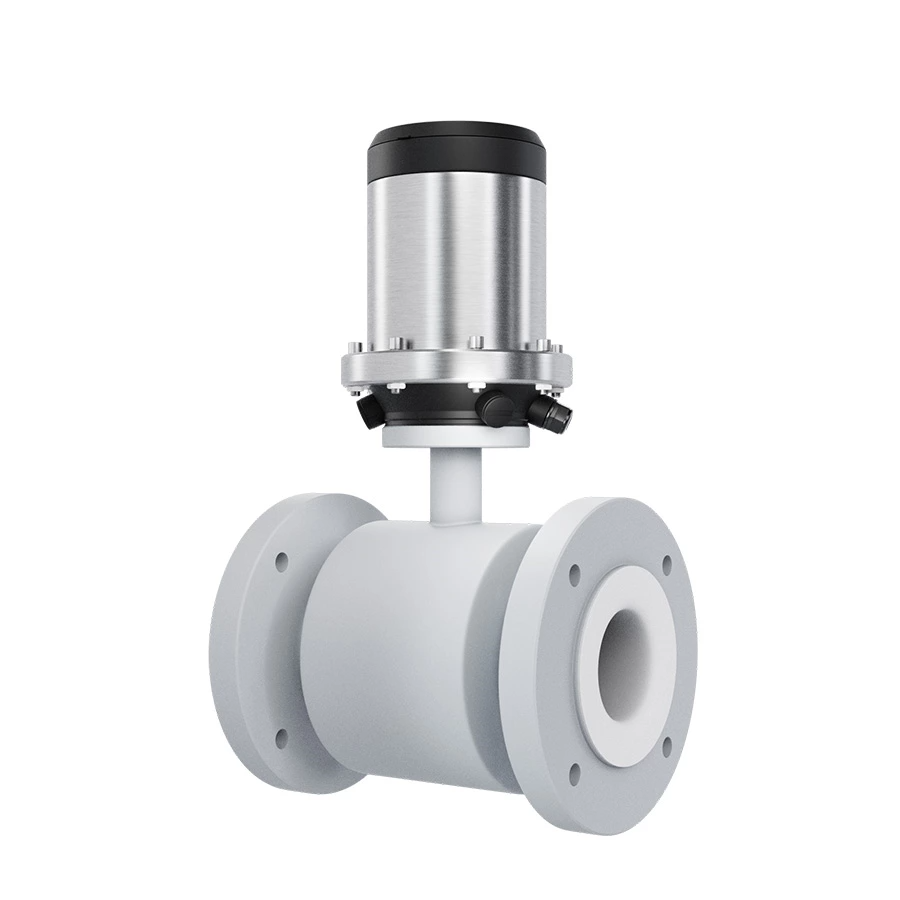

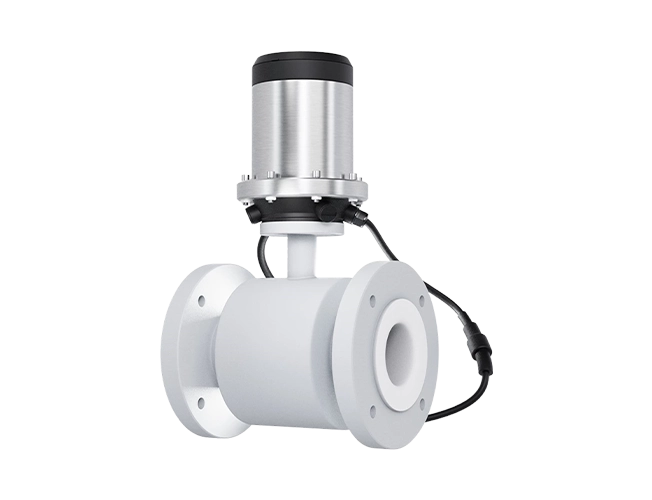

SUP-FMC800 Battery powered electromagnetic flowmeter
TF:
00330-HW-SUPMEA-030
| Product | Electromagnetic flowmeter |
| Model | SUP-FMC800 |
| Diameter nominal | DN3~DN2100 |
| Accuracy | 0.5% |
| Environmental temperature | -20℃-50℃ |
| Relative humidity | ≦95％ |
| Lining material | PTFE, PFA, F46, neoprene, polyurethane rubber, high temperature rubber |
| Flow range | 0-15m/s |
| Conductivity | Clean water >20 μs/cm |
| Communication | RS485 (modbus protocol) |
| Electrode material | SS316, Hastelloy B/C, titanium, tantalum, platinum-iridium alloy, tungsten carbide |
| Electrode type | Standard , scraper, replaceable |
| Connection | Flange, plug-in, clamp ,clip-on |
| Medium temperature | -20℃～+60℃ |
| Nominal pressure | 0.6～4.0Mpa (other can be customized) |
| Measurement parameter | Instantaneous flow, instantaneous flow rate |
| Record parameter | Accumulated total Flow |
| Detection and alarm parameters | Fluid empty pipe detection alarm, excitation current detection alarm |
| Test mode output signal | Unit volume flow pulse |
The battery-powered electromagnetic flow meter converter adopts internal battery power supply without external power supply. It is suitable for working conditions where the field power grid cannot be reached and the power grid is difficult to lay. It is especially suitable for the monitoring, metering and settlement of the tap water supply system.
