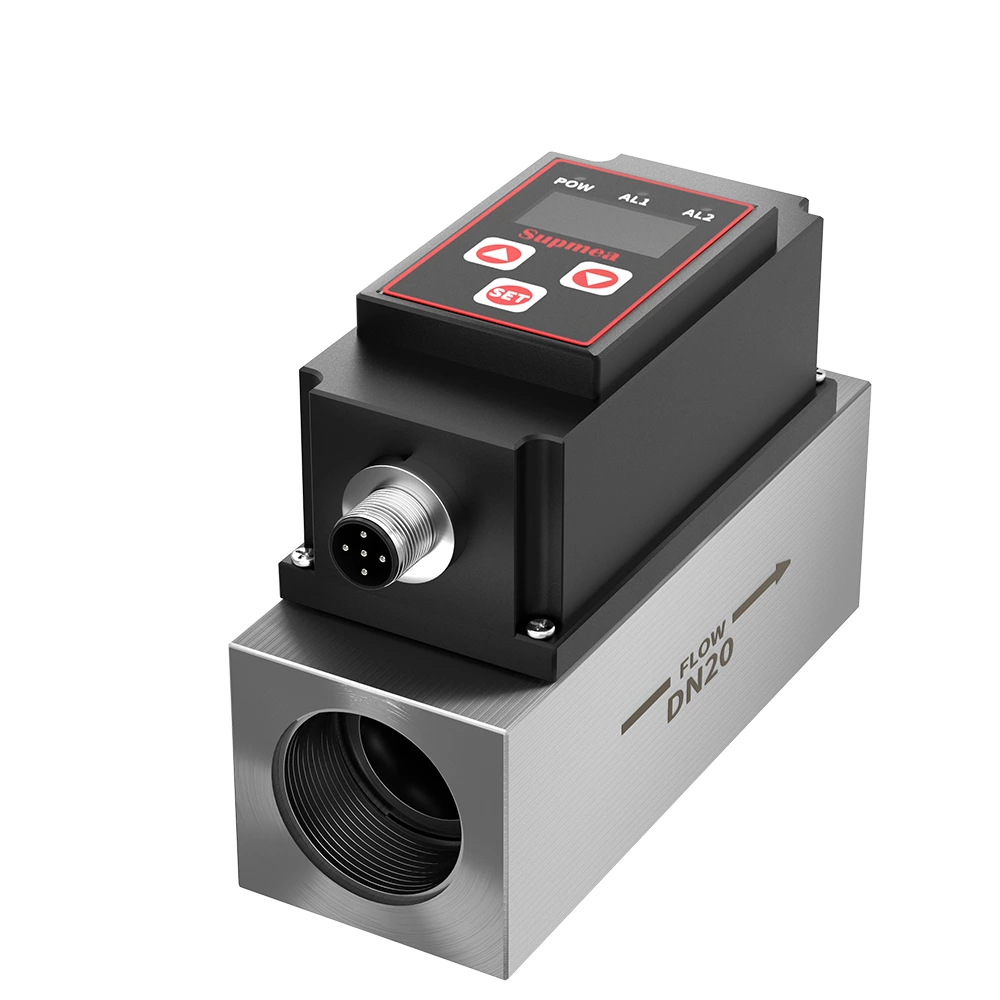

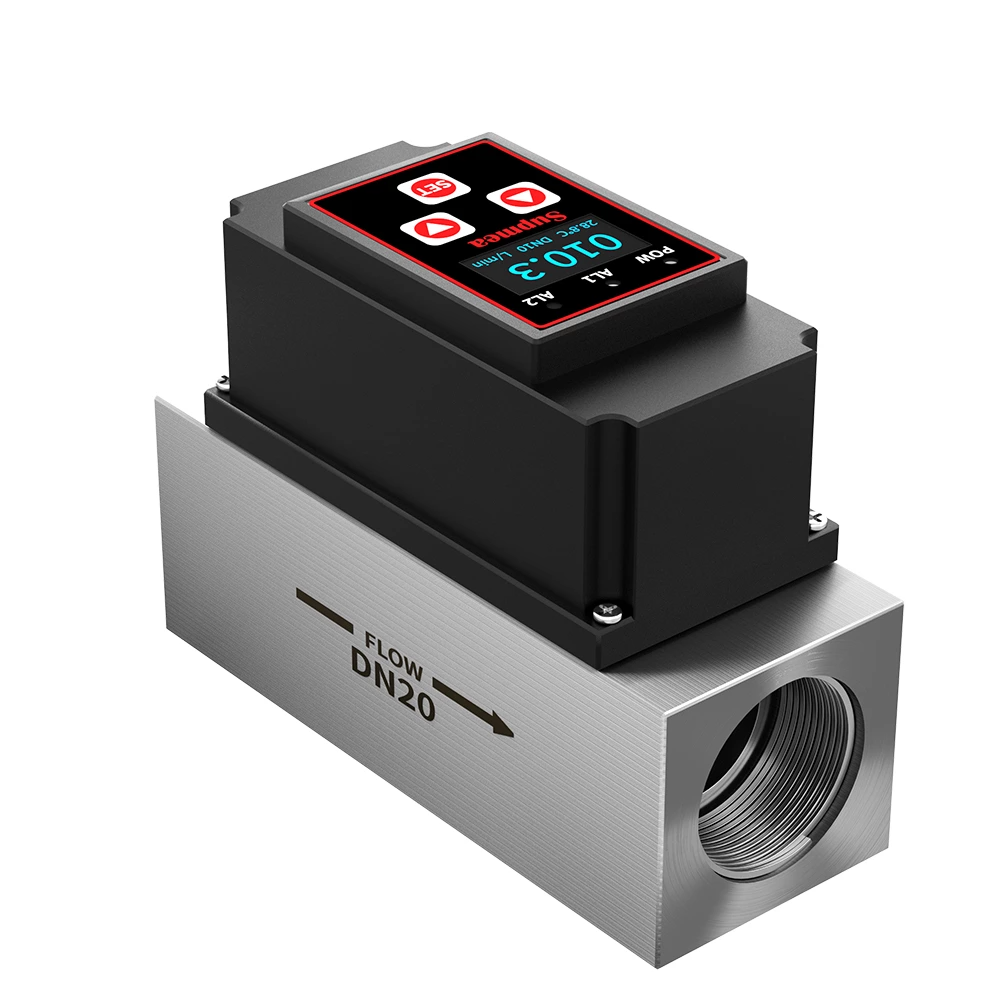

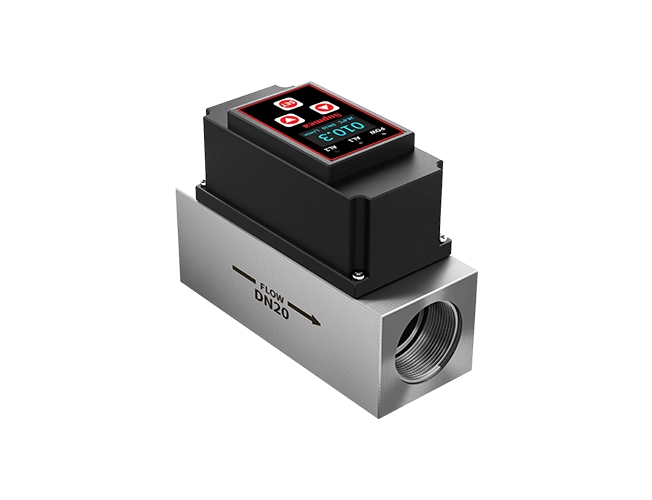

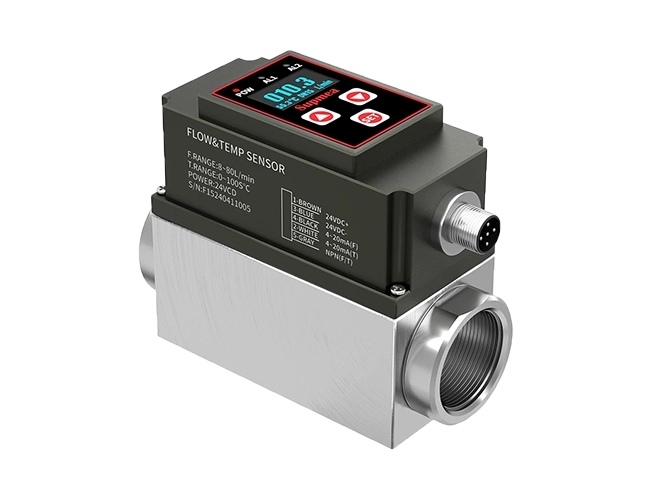

| Product | Micro turbine flow meter |
| Model | SUP-FLM200 |
| Measured variable | Flow rate,temperature |
| Nominal diameter & flow range | DN10：3~20 L/min |
| DN15：10~100 L/min | |
| DN20：12~120L/min | |
| DN25：16~160 L/min | |
| Communication output | RS485,MODBUS-RTU |
| Temperature range | 0...100℃ |
| Power supply | 24 VDC |
| Accuracy | Flow：± 1.5%；Temperature：± 1℃ |
| Medium type | Liquid(water or water-soluble liquids such as glycol, lubricants, etc.) |
| Process pressure | 6.3MPa |
| Protection level | IP65 |
Micro turbine flowmeter simple structure, high accuracy, easy to install and maintain, can be used for real-time monitoring of the liquid flow and temperature in the pipeline, support flow and temperature (4 ~ 20) mA signal or 485 communication, alarm switch output, and the use of OLED real-time display of the fluid flow and temperature, to achieve the pipeline in the flow of the temperature of the one-monitoring function. This product is widely used in petrochemical, electric power, gold, steel mills, paper, food processing, water treatment, battery factory and other industries.
