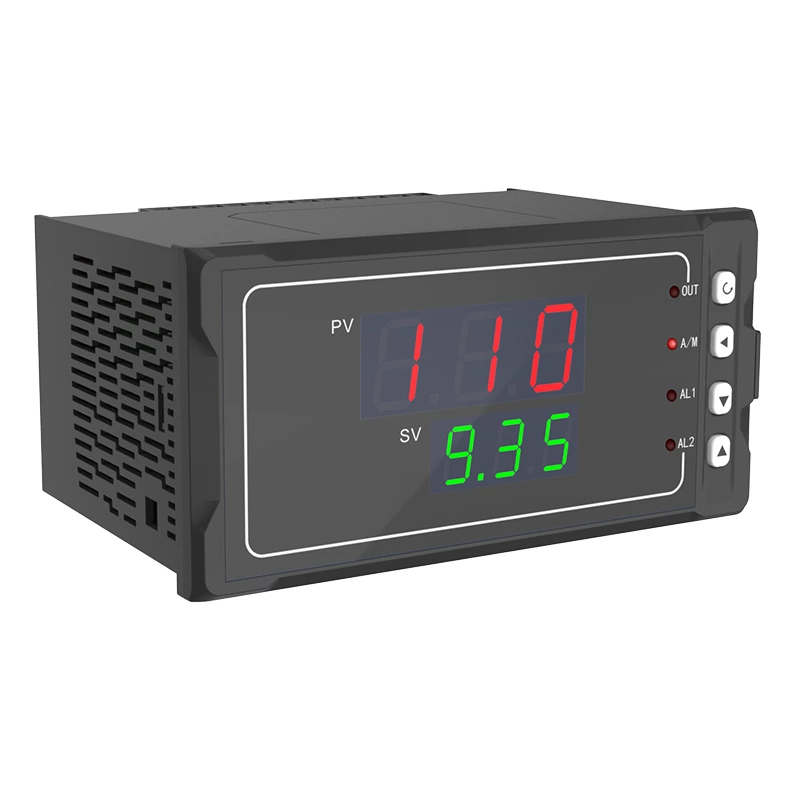

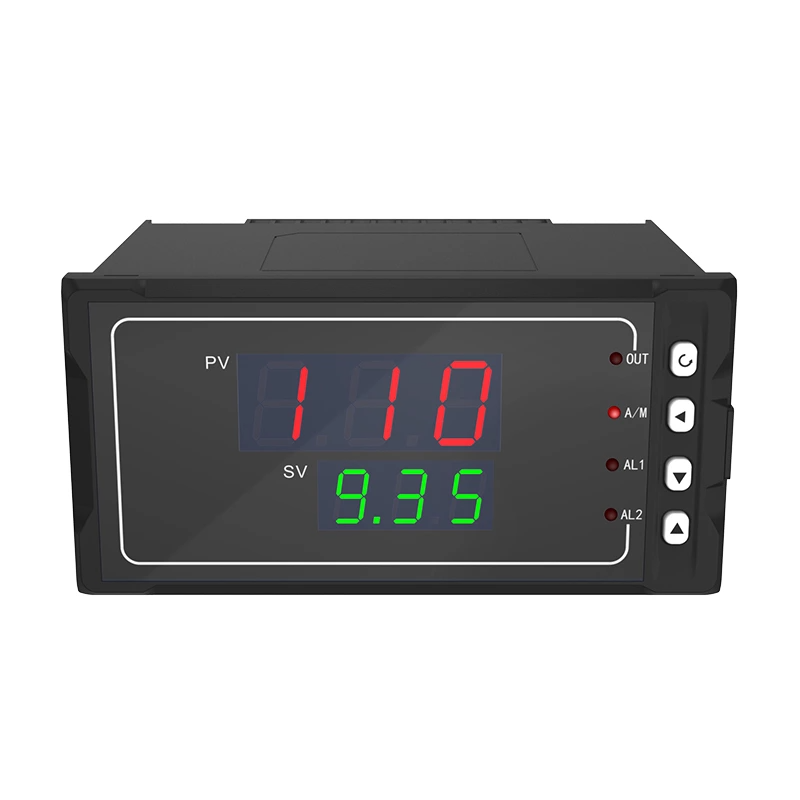

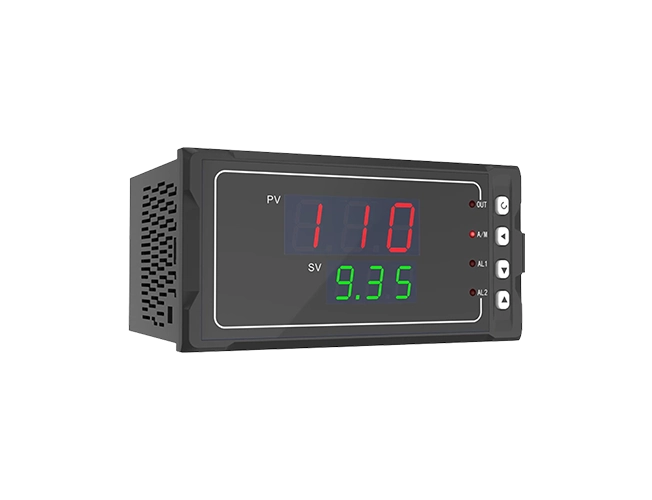

SUP-110T Economic 3-digit Single-loop Digital Display Controller
TF:
00363-HW-SUPMEA-063
| Product | Digital Single-loop digital display controller |
| Model | SUP-110T |
| Display | Dual-screen LED display |
| Dimension | C. 96*96*110mm D. 96*48*110mm E. 48*96*110mm F. 72*72*110mm H. 48*48*110mm |
| Measurement accuracy | ±0.3%FS |
| Analog output | Analog output----4-20mA, 1-5V(RL≤500Ω), 1-5V (RL≥250kΩ) |
| Alarm Output | With upper and lower limit alarm function, with alarm return difference setting; Relay contact capacity： AC125V/0.5A(small)DC24V/0.5A(small) (Resistance C load) AC220V/2A(big)DC24V/2A(big) (Resistive load) Note: When the load exceeds the relay contact capacity, please do not directly carry the load |
| Power supply | AC/DC100~240V (Frequency50/60Hz) Power consumption≤5W DC 12~36V Power consumption≤3W |
| Use environment | Operating temperature(0~50℃) Relative humidity: (5~85%)RH |
Economic 3-digit Single-loop Digital Display Controller is in modular structure, easily operable, cost-effective, applicable in light industry machinery, ovens, laboratory equipment, heating/cooling and other objects in the temperature range of 0~999 °C.
