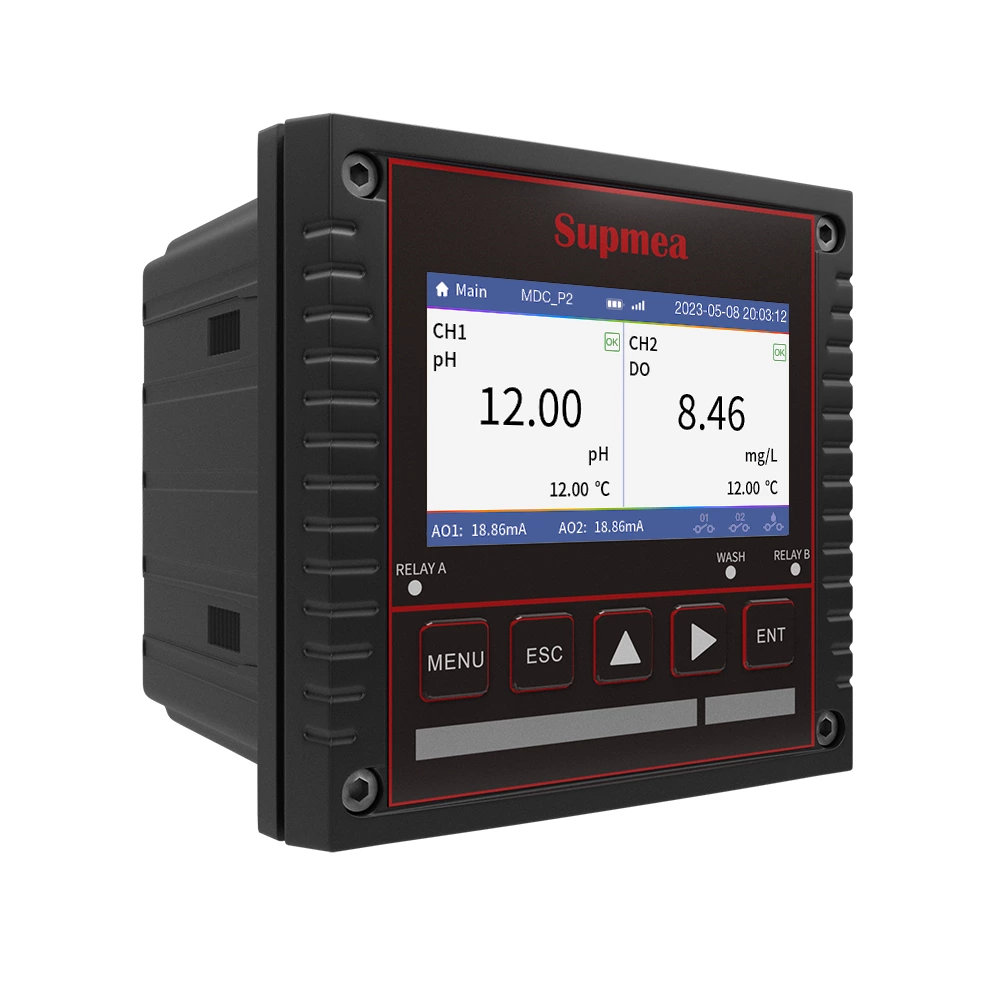

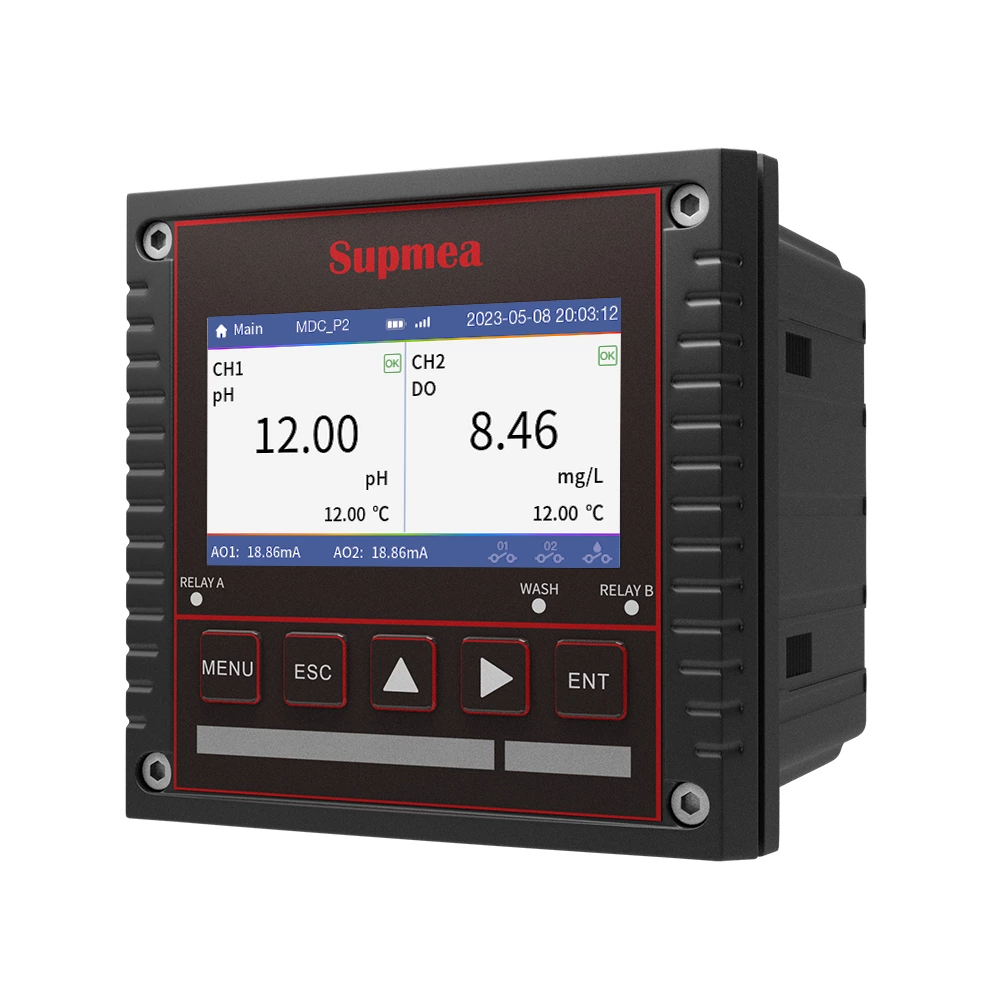

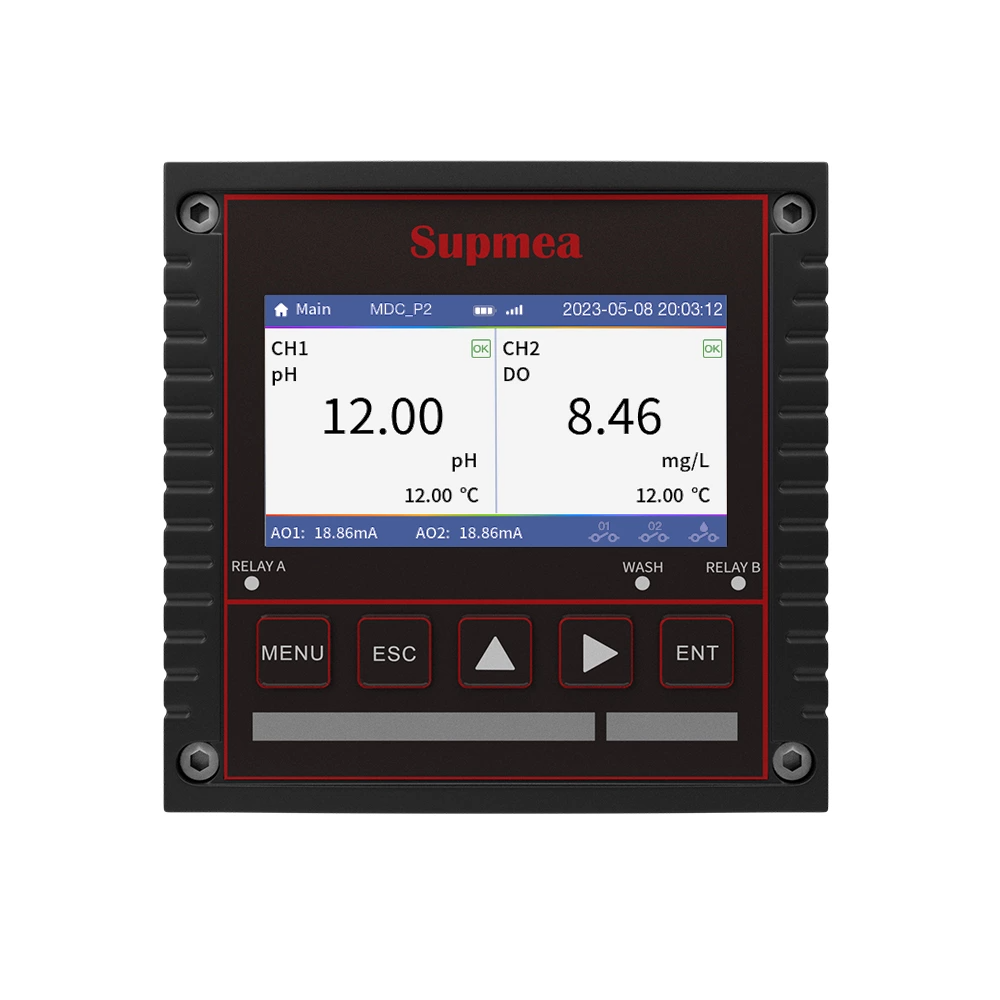

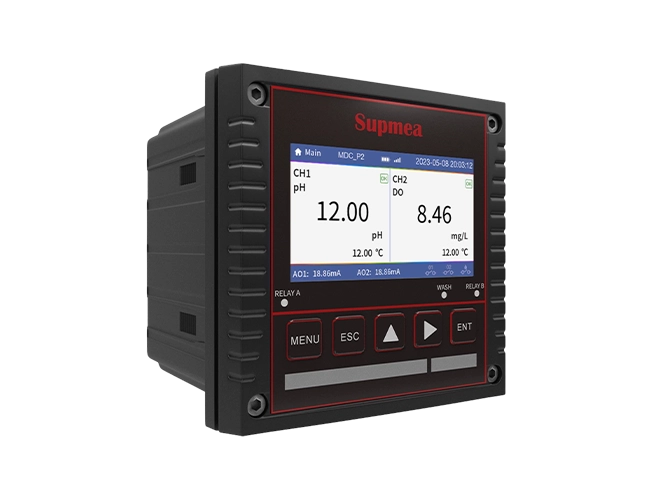

PH Controller SUP-MDC-P2 Dual Channel Universal Controller
00334-HW-SUPMEA-034
Overview
The MDC-P1/P2 is an advanced, intelligent online multi-parameter controllercapable of supporting up to two channels. The first channel's hybrid mode allows for the connection of either analog or digital sensors, while the second channel connects digital sensors.
| Measured variables | pH / ORP / Antimony |
| Measuring ranges | pH/Antimony：(-2.00 ~ 16.00) pH ORP：(-2000 ~ 2000) mV |
| Input impedance | ≥1012Ω |
| Temperature types | NTC10K ，Pt1000 ，Pt100 |
| Temperature range | (-10~130)℃ |
| Accuracy | pH：±0.02pH |
| Antimony：±0.2pH | |
| ORP：±2mV | |
| NTC10K：(-10~60)℃, accuracy: ±0.3℃ (60~130)℃, accuracy: ±2℃ | |
| Pt1000 accuracy: ±0.3℃ | |
| Pt100 accuracy: ±0.3℃ | |
| Resolution | pH/Antimony：0.01pH； ORP：1mV |
| Repeatability | 0.02pH |
| Temperature compensation | Manual compensation; |
| Automatic compensation: Linear, Acid, Base, Pure | |
| Digital sensor input | |
| Measured variables | pH/ORP/Conductivity/Dissolved Oxygen/Turbidity/Sludge Concentration/Inductive Conductivity/Residual |
| Chlorine/Ammonia nitrogen/Nitrate nitrogen/COD, etc. | |
| pH: (0.00 ~ 14.00) pH | |
| Measuring ranges | ORP: (-2000 ~ 2000) mV |
| Dissolved oxygen: (0～40) mg/L | |
| Saturation: (0～200)% | |
| Conductivity: (0～500) mS/cm | |
| Turbidity: (0～4000) NTU | |
| Sludge concentration: (0～120000) mg/L | |
| Inductive conductivity: (0～2000) mS/cm | |
| Residual chlorine: (0~ 100) mg/L | |
| Ammonia nitrogen: (0~ 1000) mg/L | |
| Nitrate nitrogen: (0~ 1000) mg/L | |
| COD: (0~ 1500) mg/L | |
| Note: Actual measurement ranges should refer to the technical data of the connected sensors. | |
| Output | |
| Isolated,2-channel (0/4~20) mA configurable to corresponding measurement ranges, load capacity 750Ω,output accuracy ±0.1%FS,compliant with NAMUR NE 43 | |
| Current output | |
| standards. | |
| Communication output | Isolated, RS485 interface,Modbus-RTU communicationprotocol. |
| Alarm output | 3-channel SPST (2 alarms + 1 cleaning), NO/NC type, capacity 250VAC, 5A. |
| Alarm relay delay | 0~9999 seconds, adjustable. |
| Electrical specifications | |
| Power supply | AC：(85~265)V，50/60Hz |
| DC：(21.6~26.4) V | |
| Power consumption | ≤28W |
| Cable entries | M20*1.5 cable gland |
| Cable specification | Spring terminals: suitable for AWG16~AWG24（0.2mm2~ 1.5mm2 ）cables； |
| Plug-in terminals: suitable for AWG12~AWG28（1mm2~ 2.5mm2 ）cables； | |
| Environment | |
| Operating environment | Temperature：(0 ~ 60)℃ |
| Relative Humidity：10 %~85%（ non-condensing） | |
| Storage environment | Temperature：(-15~65)℃ |
| Relative Humidity：5%~95%（non-condensing） | |
| Altitude ：<2000m | |
| Ingress protection | IP66 |
| Flame Retardancy | UL94V-0 |
This controller can measure a variety of parameters including pH, ORP, conductivity, dissolved oxygen, turbidity, sludge concentration, residual chlorine, ammonia nitrogen, nitrate nitrogen, COD, and more. Its continuous monitoring data can be transmitted to a DCS system via output transmission or communicated with a computer using the Modbus-RTU protocol via RS485 interface for remote monitoring and logging. It can also control cleaning systems or pumps.
