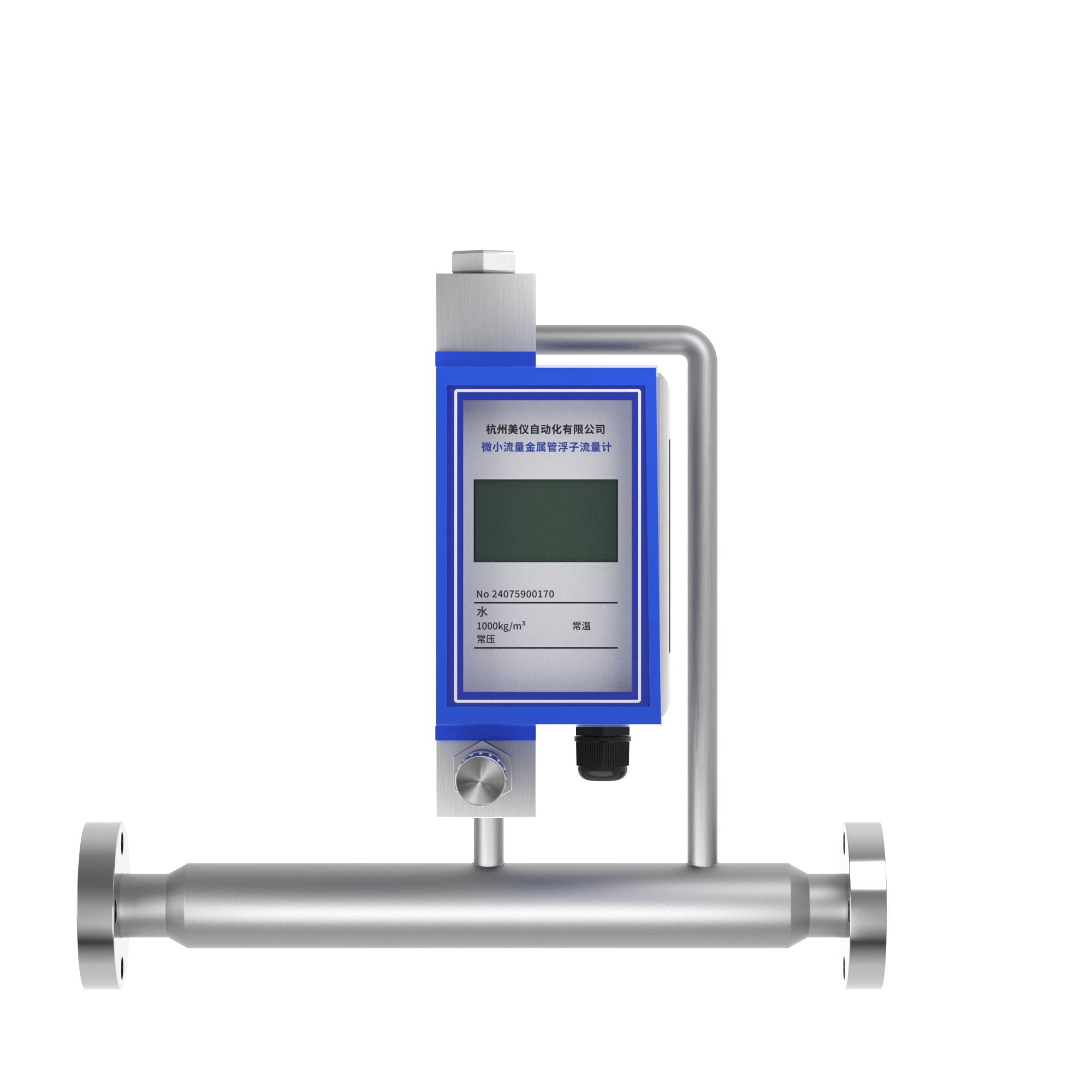

FRM200 micro metal tube float flowmeter
TF:
00323-HW-SUPMEA-023
Overview
The FRM200 Micro Metal Tube Float Flow Meter is designed for precise measurement of small gas and liquid flows, offering high resistance to temperature, pressure, and corrosion. Ideal for applications like gas chromatography, pharmaceuticals, and nuclear power, it features an all-metal construction, buoyancy-based measurement, and a magnetic coupling system.
| Series Number | FRM200 (Micro metal tube float flowmeter) |
| Measurement Medium | Liquid (1-150L/h) | Gas (16-4800L/h) |
| Process Connection | NPT1/4 inner thread | HG/T20592 PN40 DN15 flange connection | ISO2852 50.5 card sleeve | Card sleeves (6mm, 8mm, 10mm, 12mm) |
| Meter Tube & Float Material | 316LSS (Other options available) |
| Meter Tube Structure | Bottom inlet/top outlet | Right inlet/left outlet | Left inlet/right outlet | Side inlet/side outlet |
| Accuracy | 2.5 grade (Other options available) |
| Indicator Type | Aluminum alloy square housing with pointer or LCD display |
| Output & Power Supply | Options include two-wire system 4-20mA, HART, RS485, and more |
| Alarm | SPDT dry contact, NAMUR switch for upper/lower limit alarms |
| Flow Control Valve | Inlet or outlet needle valve options available |
| Constant Flow Valve Type | Low-pressure and high-pressure inlet/outlet pressure variation types |
| Electrical Interface & Protection Class | M16×1.5 cable gland, IP67 protection |
It includes a needle valve for flow adjustment and supports various process connections, indicators with optional LCD display, and outputs like 4-20mA with alarms for enhanced monitoring. Accurate and reliable, it ensures stable performance in demanding environments.
