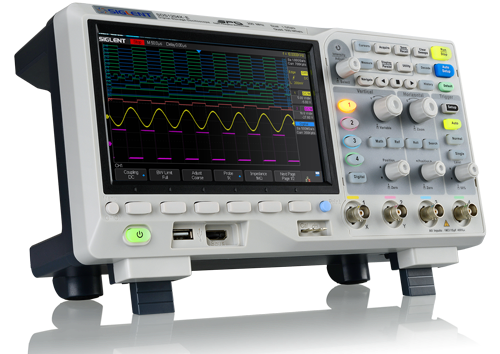

Siglent SDS1000X-E Series Super Phosphor Oscilloscopes
-
NG # 004113-HW-SIGLENT-013
Manufactured by:
SIGLENT’s SDS1000X-E Super Phosphor Oscilloscopes are available in 100 and 200 MHz bandwidths and 2 or 4 analog channels. It has a maximum sample rate of 1 GSa/s and a standard record length of 14 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.
Specification
- Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Timeout (Dropout), and Pattern
- Free Serial bus triggering and decoding:IIC, SPI, UART, RS232, CAN, and LIN
- Video triggers and supports HDTV
- Low background noise and 500 μV / div to 10 V / div voltage scales
- 10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time segment to capture the qualifying event.
- History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
- Automatic measurement function on 38 parameters, supports Statistics, Gating measurement, Math measurement, History measurement and Ref measurement
- 1 Mpts FFT
- True measurement and math can use all 14 Mpts of memory
- Preset key can be customized for user settings or factory “defaults”
- Security Erase mode
- Highspeed hardware based Pass/ Fail function
- Large 7-inch TFT-LCD display with 800 * 480 resolution
- Multiple interface types: USB Host, USB Device (USB-TMC), LAN (VXI-11), Pass / Fail, Trigger Out
- Supports SCPI remote control commands
- Multi-language display and embedded help
- Browser control/onboard webpage for software free monitoring (4 channel models only)
- Bode plotting function controls external generator (SIGLENT SDG or SAG generators, 4 channel models only)
Description
SDS1000X-E oscilloscopes employ a new generation of SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/ sec (sequence mode).
