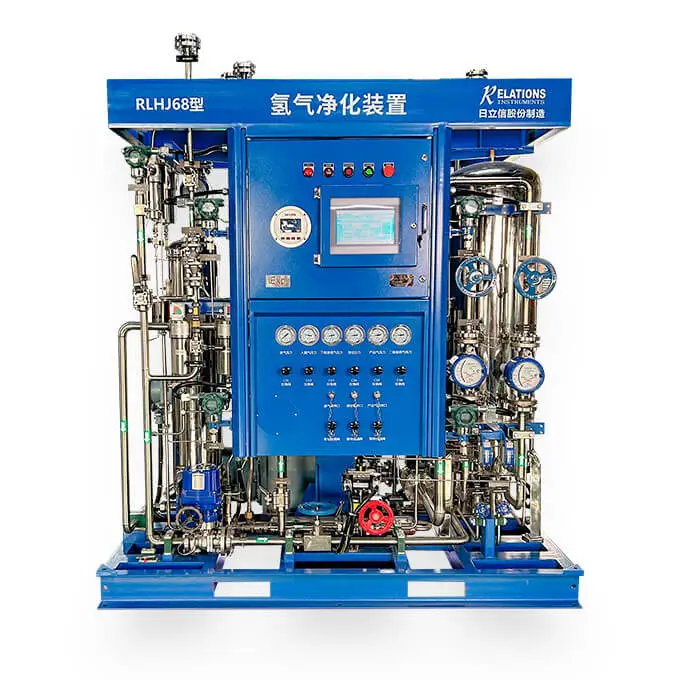

RLHJ68 hydrogen purification device
SKU:
00179-HW-SF6-079
Overview
RLHJ68 hydrogen purification device is a hydrogen purification equipment that uses patented separation technology to separate impurities such as oxygen, nitrogen, and carbon dioxide from hydrogen.
| Parameter Name | Parameter Value |
| Raw Gas Pressure | 0.5 MPa (gauge) |
| Raw Gas Flow Rate | 68 m³/h Max |
| Product Gas Purity | ≥99.0% |
| Product Gas Pressure | ≥0.53 MPa (gauge) |
| Membrane Inlet Temperature | (35~40)°C |
| Membrane Inlet Pressure | ≥0.8 MPa (gauge) |
| Filter Precision | ≤0.01 μm |
| Power | 6.5 kW |
| Power Supply | 380VAC, 50Hz |
It is designed and manufactured to improve hydrogen purity to over 99% in the current hydrogen cooled power generation unit through hydrogen discharge and replenishment methods, which cannot maintain high hydrogen purity on site.
