| Parameter Name | Parameter Value |
| Detected Gas | Hydrogen (Hâ‚‚) |
| Measurement Range | (0~4)% vol; (0~10)% vol |
| Measurement Error | ±5% F.S. |
| Repeatability | <2% |
| Resolution | 0.01% Vol |
| Preheating Time | <5s |
| Response Time | <10s |
| Operating Voltage | 12VDC, 24VDC (optional) |
| Power Consumption | <1W |
| Signal Output | PWM @250Hz or CAN @250Kbps |
| Operating Temperature | (-40~85)°C |
| Storage Temperature | (-40~105)°C |
| Pressure Compensation | (50~150) kPa |
| Protection Level | IP67 |
| Explosion-proof Level | Ex ic â…¡C T3 Gc |
| Service Life | 10 years |
| Dimensions | 82.6mm*90.58mm*25.9mm (L*W*H) |
| Weight | 70g |

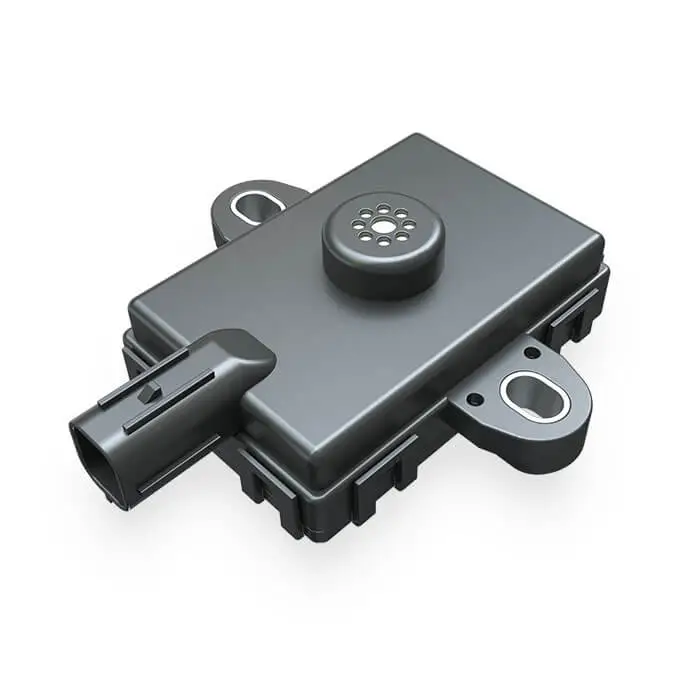

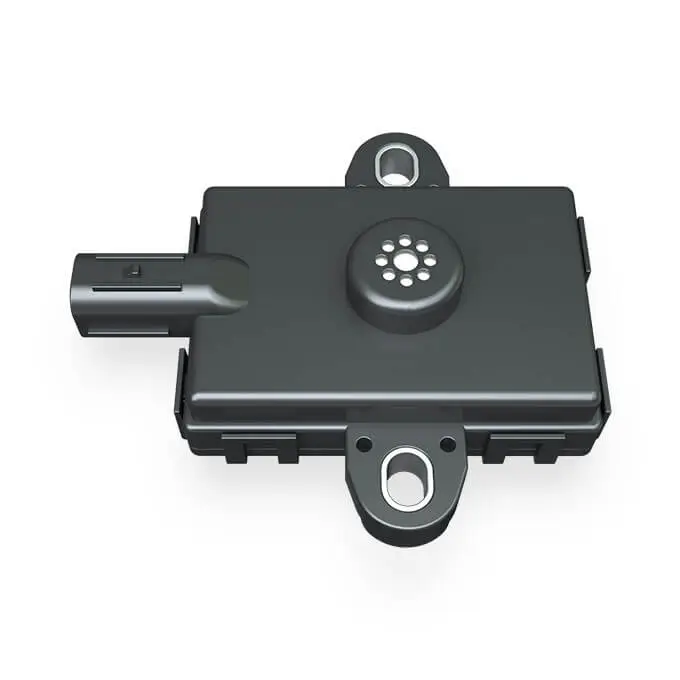

Our PDM200 Automotive hydrogen sensor Hydrogen molecules are adsorbed onto the surface of the titanium alloy film. Under the catalytic action of the film, hydrogen molecules decompose into two hydrogen atoms and diffuse into the interior of the alloy lattice, causing lattice expansion and phase transition, resulting in changes in the conductivity of the alloy film. Based on this characteristic principle, the measurement of hydrogen concentration can be achieved.
