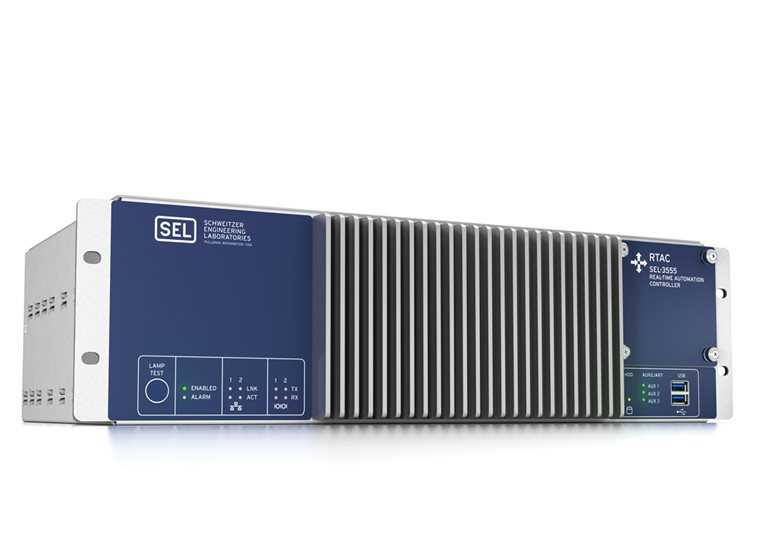

SEL-3555 Real-Time Automation Controller (RTAC)
TF:
001412-HW-SEL-012
Overview
The SEL-3555 is our most powerful RTAC model, featuring multicore processing and configurable RAM options capable of running multiple applications simultaneously and meeting the industry's most demanding requirements.
| CPU | Intel® Core™ i7-3555LE Dual Core Speed: 2.5 GHz base, 3.2 GHz turbo Cache: 2 x 256 KB L2, 4 MB L3 Intel Core i7-3612QE Quad Core* Speed: 2.1 GHz base, 3.1 GHz turbo Cache: 4 x 256 KB L2, 6 MB L3 |
| RAM | 8 GB DDR3 ECC PC3-10600 (1,333 MHz) |
| Video | DVI-I (digital + VGA) Maximum resolution: 1920 x 1200 @ 32 bpp DVI-D (digital only) Maximum resolution: 1920 x 1200 @ 32 bpp DisplayPort Maximum resolution: 1920 x 1200 @ 32 bpp |
| USB | 4 rear-panel ports, 2 front-panel ports USB 2.0-compliant, 800 mA current limit each |
| Ethernet | ETH 1: Intel 82579LM, 10/100/1000 Mbps, RJ45 copper ETH 2: Intel 82574L, 10/100/1000 Mbps, RJ45 copper SEL-3390E4 PCIe x4 Expansion Cards: As many as 8 additional 10/100/1000 Mbps ports, copper or LC fiber small form-factor pluggable (SFP)* |
| Serial | 2 EIA-232 ports, DB-9 connectors, 300 to 115200 bps 6 EIA-232/422/485 ports, RJ45 connectors, 300 to 921600 bps SEL-3390S8 PCIe x1 Expansion Cards: As many as 18 additional EIA-232/422/485 ports, RJ45 connectors, 300 to 921600 bps* |
| HMI | Viewable remotely or via the local display* |
| Time Code Input/ Output | Input with supplied SEL-3390S8 Expansion Card, RJ45 connector, demodulated IRIG-B TTL-compatible |
| Power Supply | 125/250 Vdc or 120/240 Vac; 50/60 Hz Dual power supplies* |
| Operating Temperature Range | i7-3555LE Dual Core: –40°C to +75°C (–40 to +167°F) i7-3612QE Quad Core: –40°C to +60°C (–40 to +140°F) |
| Weight | 9.072 kg (20 lb) |
The optional integrated web HMI with a local display port eliminates the need for an additional computer. Ideal for the most demanding applications, this model integrates up to 256 devices and supports up to 100,000 data points.
