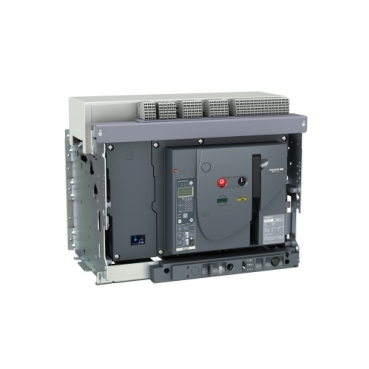

EP MVS CB 2500A 50kA 4P EDO 240VAC ETA2 drawout electrical circuit breaker
-
NG # 00311-HW-SCHNEIDER-011
Manufactured by:
EasyPact MVS25N is a 2500A circuit breaker. The breaking capacity (Icu) is 50kA rms at 440VAC 50/60Hz. The operational voltage is 690VAC.
Specification
Range EasyPact product name MVS25N Device short name MVS25N Product or component type Circuit breaker Device application Distribution Poles description 4P Protected poles description 4P 4d Neutral position Left [In] rated current 2500 A at 40 °C Network type AC [Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2 Breaking capacity code N Suitability for isolation Yes conforming to IEC 60947-2 Utilisation category Category B Trip unit name ETA2I Trip unit technology Electronic Trip unit rating 2500 A Network frequency 50/60 Hz control type Electrically operated Mounting mode Drawout Mounting support Rail
Base plateConnection position Vertical
HorizontalLocation of connection Rear [Ui] rated insulation voltage 1000 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage 12 kV conforming to IEC 60947-2 Circuit breaker CT rating 2500 A Breaking capacity 50 kA Icu at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 [Ics] rated service breaking capacity 50 kA (Ics) at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 Mechanical durability 20000 cycles (with maintenance) conforming to IEC 60947-2
10000 cycles (without maintenance) conforming to IEC 60947-2Electrical durability Category B: 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
Category B: 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2Connection pitch 115 mm without spreader Contact position indicator Yes [Icm] rated short-circuit making capacity 105 kA (Icm) at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 [Icw] rated short-time withstand current 50 kA (1 s) at 220...440 V AC 50/60 Hz conforming to IEC 60947-2
42 kA (1 s) at 690 V AC 50/60 Hz conforming to IEC 60947-2
25 kA (3 s) at 440/690 V AC 50/60 Hz conforming to IEC 60947-2Neutral protection setting Without protection (3D)
0.5 x Ir (3D + N/2)
1 x Ir (4D)Trip unit protection functions LI Protection type Instantaneous short-circuit protection
Overload protection (long time)Fault indication Internal fault
Short-circuit
OverloadLong time pick-up adjustment type Ir Adjustable 9 settings Long time pick-up adjustment range 0.4...1 x In Long time delay adjustment type Adjustable 9 settings [tr] long-time delay adjustment range 0.5…24 s at 6 x Ir Thermal memory 20 minutes before and after tripping Instantaneous pick-up adjustment type Ii Adjustable 9 settings Instantaneous pick-up adjustment range 1.5...10 x Ir Zone selective interlocking ZSI With Display type Digital display Type of measurement Current Current sensor rating range 1000/4000 A Maximum breaking time 25 ms Maximum closing response time 70 ms Height 439 mm Width 556 mm Depth 395 mm Product weight 120 kg Standards IEC 60947-2 Product certifications CCS
IEC
CCC
GOSTPollution degree 4 conforming to IEC 60664-1 IP degree of protection IP40 Ambient air temperature for operation -5…70 °C Ambient air temperature for storage -40…85 °C without control unit
-25…85 °C with control unitUnit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 42.0 cm Package 1 Width 35.0 cm Package 1 Length 50.0 cm Package 1 Weight 38.0 kg Warranty 18 months
Description
This version is 4 poles drawout. Electronic trip unit provides LI protection include Overload and Instantaneous protection. A digital LCD screen continuously displaysI1, I2, I3, IN and maximeter(Imax). Fault indications LED indicate 3 types of fault which are Ir (Overload), Ii (Instantaneous) and Ap (Internal fault). It could be electrical operated (200/240V AC) with gear motor, closing release and opening release. EasyPact MVS is compliant with international standards (IEC 60947, CE, EAC and RoHS). The dimension is 439mm x 556mm x 395mm (H x W x D).
